Help CenterASME B16.11 Threaded Steel Pipe Fittings Forged 90 Degree Elbow Class 3000
Related Products
-
Carbon Steel A105 Forged Steel Thread Npt Hex BushingNegotiableMOQ: 5 Pieces -
MNPT BSPT Material Threaded Hexagon Head Plug A182 F316 ASME B16.11NegotiableMOQ: 5 Pieces
-
Class 3000LB Steel Pipe Fitting SW Equal 90 Degree Elbow ASME B16.11NegotiableMOQ: 5 Pieces
-
Forged Steel Pipe Fitting Socket Welding 45 Degree Elbow 3000LB ASME B16.11NegotiableMOQ: 5 Pieces
-
Brass Thread Npt Hex Head Bushing Male Female Hydraulic BushingNegotiableMOQ: 5 Pieces
| Product Name: | 90-deg Elbow | Standard: | ASME B16.11 |
| Pressure Rating: | 3000LB | Material: | A182 F334/304L |
| Connection Type: | NPT/BSPT Threaded | Size: | 2" |
| High Light: | Threaded Steel 90 Degree Elbow | ||
| Forged 90 Degree Elbow | |||
| Class 3000 Pipe Fittings Elbow | |||

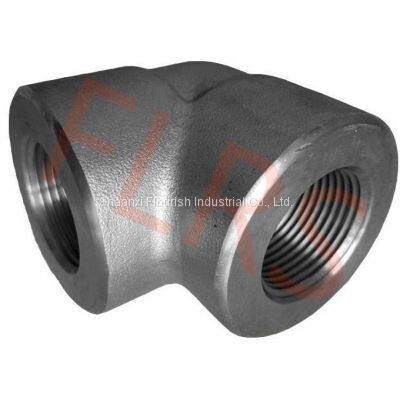

Threaded Steel Pipe Fittings Class 3000 90-deg Elbow Forged stainless Steel Material A182 F304/304L Standard ASME B16.11
| PIPE FITTINGS | |
Product Name | 90-deg Elbow |
| Size Range | 2" |
| Technology | Forging |
| Connection Type | Threaded |
| Pressure Range | 3000LB-9000LB |
Threaded 90 Deg elbow manufactured in accordance with ASME B16.11. The B16.11 standard covers pressure-temperature ratings, dimensions,marking, tolerances and material requirements. We are specialized in supplying Threaded Elbows in three pressure ratings: Class 2000, Class 3000 and Class 6000 at reasonable price in China in various sizes as per requirement.
Class 3000 Threaded 90 degree Elbow pipe can be customized according to customer requirements of different materials, including stainless steel, carbon steel, aluminum, brass, copper, etc.
Use a 90 degree threaded elbow when piping is connected to the threaded pipes. We manufacture and supply various types of threaded fittings in Natural steel keeping in mind each customer's requirements. Threaded elbows are usually used with ASME pipes.
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/8″~4″ (DN6~DN100) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Form | 90 Deg Threaded Elbow, Threaded Elbow, Threaded Pipe elbow |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
