Help Center7006-27B-1 Go Gauges for E40 and E27 Caps on Finished Lamps According to IEC60061
Related Products
-
IEC60061 Not Go Gauges for E27 Caps on Finished Lamps 7006-28A-1US$ 250 - 280MOQ: 1 Piece -
7006-50-1 Gauge for Finished Lamps Fitted With E27 Caps for Testing Contact MakingUS$ 325 - 360MOQ: 1 Piece
-
7006-51A-2 Gauge for E27 Caps on Finished Lamps for Testing Port. Against Acc. Contact During InsertionUS$ 325 - 360MOQ: 1 Piece
-
7006-51-2 Gauge for Caps on Finished Lamps for Testing Port Against Accidental Contact E27 51*39mmUS$ 325 - 360MOQ: 1 Piece
-
7006-27C-1 Go Gauges for Dimension "S1" of E27 Caps on Finished LampsUS$ 325 - 360MOQ: 1 Piece
Purpose: to check the maximum dimensions of screw thread and dimension T1 minimum of Caps on finished lamps show on sheet 7004-21.

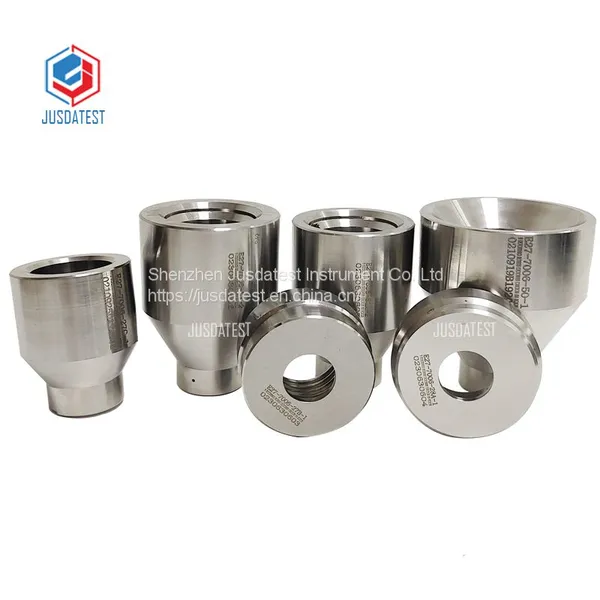

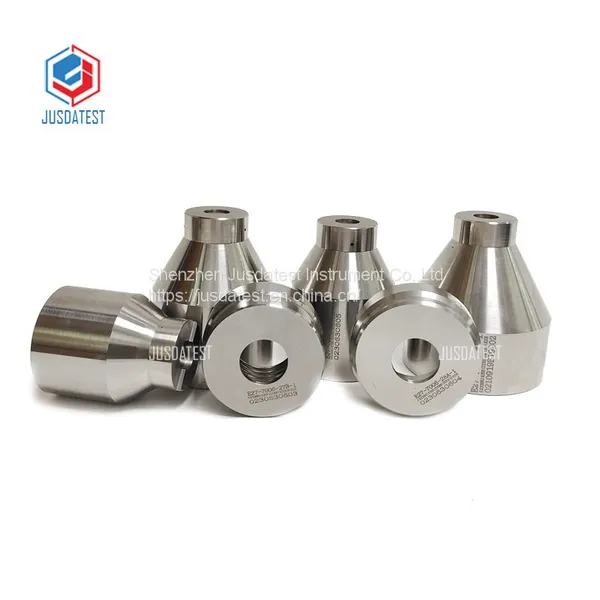

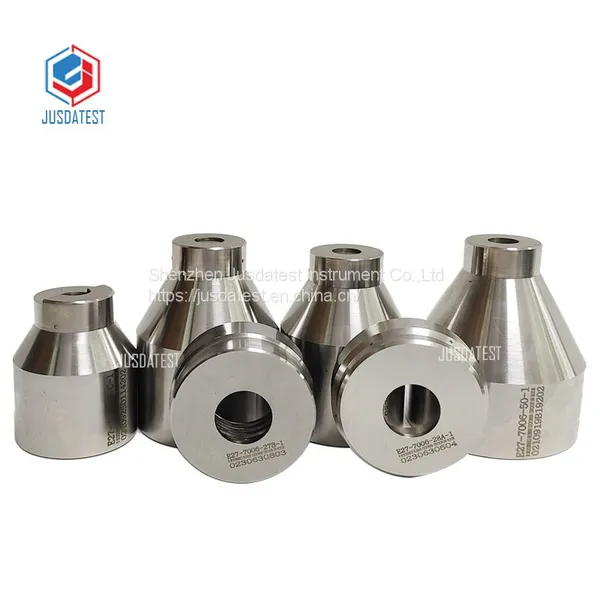

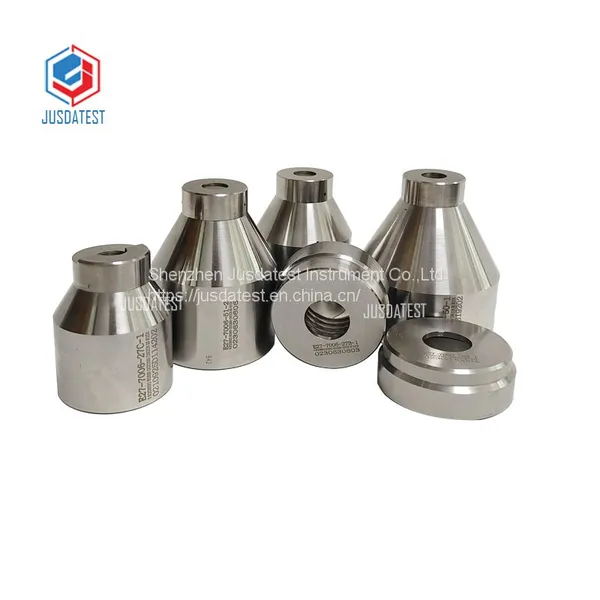

E27 Lamp Cap Gauge Series:
7006-27B-1 Go gauges for E40 and E27 caps on finished lamps
7006-28A-1 Not Go gauges for E27 caps on finished lamps
7006-50-1 Gauge for finished lamps fitted with E27 caps for testing contact making
7006-51A-2 Gauge for E27 caps on finished lamps for testing port. Against acc. Contact during insertion
7006-51-2 Gauge for caps on finished lamps for testing port Against accidental Contact E27 51*39
7006-27C-1 Go gauges for dimension "S1" of E27 caps on finished lamps
7006-25A-2 E27 "GO "gauge for lampholders
IEC60061-3, 7006-26-4 E27"Not Go"plug gauge for screw threads of lampholders
IEC60061-3, 7006-21-5 E27 Gauge for testing port. Against bulb-neck damage and for testing contract making in lampholders
IEC60061-3, 7006-22A-4 E27 Gauge for testing contact making and port. Against acc. Contact during insertion
IEC60061-3, 7006-22B-1 E27 Gauge for detecting side-contacts with cutting-edges
IEC60061-3, 7006-22C-1 E27 Gauge I. For testing resilience of side contact
IEC60061-3, 7006-22D-1 E27 Gauge II. For testing resilience of side contact
IEC60238 Fig 11 E27 Test Cap for temperature test 14.4 and 19.3 of IEC60238
IEC60238 Fig 5 E27 Test Cap for torque test clause 18 of IEC60238
IEC60238 Fig 14 E27 Test Cap for resistance to heat test clause 19 of IEC60238
