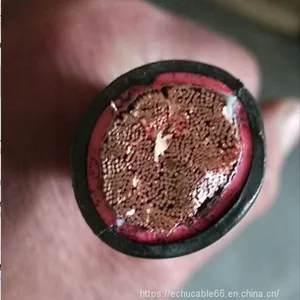

0.6/1KV Copper Core PVC Insulated PVC Sheathed Flexible Power Cable (YJVR)
- Shanghai port/any China Port
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
0.6/1KV Copper Core PVC Insulated PVC Sheathed Flexible Power Cable (YJVR)
-
Flexible Oil Resistant Control Cable With Water Proof, Cool/flame Resistance RVVY/RVVYP in Black/grey/orange Color
-
CE Cert PVC Data Cable With Tinned Copper Braid LiYY, LiYCY(TP) in Grey Color
-
Flat Traveling Cable for Elevator With CE Certificate 18Core With Special PVC Jacket in Bunch Core or Parallel
-
ECHU Flat Flexible Traveling Cable for Elevator With CE Certificate TVVBP24x0.75+1x2Px0.75+TV With Special PVC Jacket
-
Flat Flexible Traveling Elevator Cable With TV Camera Cable in Grey Color
Product Details
| Brand Name | ECHU | Place of Origin | China | |
| Model Number | YJVR | Type | AC Power Cord | |
| Application | Industrial Equipment | Female End Type | IEC | |
| Male End Type | CEE |
Product Description
Implementation of the standards:
1) This product is designed and manufactured according to GB/T12706-2002
2) flame retardant power cable accordance with the standards of production enterprises, flame retardant characteristics meet the requirements GB/T18380.3
3) fire-resistant power cables manufactured according to corporate standards, including fire-resistant characteristics meet GB/T12666.6 requirements
Characteristic:
1) Long-term allowable working temperature of cable conductor does not exceed 70C. Circuit is blocked (the longest duration fo no more than 5 seconds), The conductor temperature does not exceed 160C
2) While installation the ambient temperature should not be less than 0C, lower than 0C should be preheated. Minimum bending radius of not less than the cable diameter, single core cables without armor 20 times, there with armor cable 15 times. Three core cable without armour 15times, there with armor cable 12 times
3) DC resistance of conductor shall comply with the provisions of GB/T3956
4) Power frequency withstand voltage test: 3.5KV/5min without breakdown
Main use:
This product is suitable for AC rated voltage 0.6/1KV the circuit, Transmission of electrical energy used, Flame retardant power cable is suitable installed in fire-retardant demanding situations. Resistant power cable for high-rise buildings, shopping malls and other densely populated areas.
Retardant performance:
1) Retardant cable can withstand GB/T18380.3 prescribd bunched burning test
2) Smoke density in accordance with the requirements of GB/T17651.1
3) Combustion gases precipitated HCL content should be = 100mg/g
4) Resistant cable can withstand GBA/T12666.6 fire test requirement
| No. | Type | Size | OD mm | Weight KG/KM |
| 1 | YJV | 1×1.5 | 5.6 | 45 |
| 2 | YJV | 1×2.5 | 6.0 | 58 |
| 3 | YJV | 1×4 | 6.5 | 75 |
| 4 | YJV | 1×6 | 7.0 | 97 |
| 5 | YJV | 1×10 | 8.1 | 142 |
| 6 | YJV | 1×16 | 9.1 | 204 |
| 7 | YJV | 1×25 | 10.8 | 302 |
| 8 | YJV | 1×35 | 11.8 | 401 |
| 9 | YJV | 1×50 | 13.0 | 550 |
| 10 | YJV | 1×70 | 14.9 | 749 |
| 11 | YJV | 1×95 | 16.8 | 997 |
| 12 | YJV | 1×120 | 18.3 | 1241 |
| 13 | YJV | 1×150 | 20.5 | 1546 |
| 14 | YJV | 1×185 | 22.8 | 1904 |
| 15 | YJV | 1×240 | 25.3 | 2444 |
| 16 | YJV | 1×300 | 28.0 | 3017 |
| 17 | YJV | 1×400 | 31.6 | 3995 |
| 18 | YJV | 2×1.5 | 9.6 | 100 |
| 19 | YJV | 2×2.5 | 10.4 | 127 |
| 20 | YJV | 2×4 | 11.3 | 166 |
| 21 | YJV | 2×6 | 12.3 | 215 |
| 22 | YJV | 2×10 | 14.6 | 318 |
| 23 | YJV | 2×16 | 16.6 | 455 |
| 24 | YJV | 2×25 | 20.0 | 679 |
| 25 | YJV | 2×35 | 22.0 | 781 |
| 26 | YJV | 2×50 | 18.9 | 1083 |
| 27 | YJV | 2×70 | 21.9 | 1477 |
| 28 | YJV | 2×95 | 24.1 | 1975 |
| 29 | YJV | 2×120 | 26.7 | 2473 |
| 30 | YJV | 2×150 | 29.7 | 3080 |
| 31 | YJV | 2×185 | 33.1 | 3790 |
| 32 | YJV | 2×240 | 42.2 | 4896 |
| 33 | YJV | 2×300 | 47.2 | 6084 |
| 34 | YJV | 2×400 | 54.6 | 8038 |
| 35 | YJV | 3×1.5 | 10.0 | 119 |
| 36 | YJV | 3×2.5 | 10.8 | 157 |
| 37 | YJV | 3×4 | 11.9 | 210 |
| 38 | YJV | 3×6 | 13.0 | 278 |
| 39 | YJV | 3×10 | 15.4 | 418 |
| 40 | YJV | 3×16 | 17.6 | 611 |
| 41 | YJV | 3×25 | 21.2 | 920 |
| 42 | YJV | 3×35 | 23.4 | 1229 |
| 43 | YJV | 3×50 | 23.8 | 1588 |
| 44 | YJV | 3×70 | 27.3 | 2185 |
| 45 | YJV | 3×95 | 30.8 | 2911 |
| 46 | YJV | 3×120 | 34.0 | 3648 |
| 47 | YJV | 3×150 | 37.6 | 4583 |
| 48 | YJV | 3×185 | 41.9 | 5641 |
| 49 | YJV | 3×240 | 46.9 | 7255 |
| 50 | YJV | 3×300 | 51.6 | 9011 |
| 51 | YJV | 3×400 | 57.9 | 11940 |
| 52 | YJV | 4×1.5 | 10.7 | 143 |
| 53 | YJV | 4×2.5 | 11.7 | 191 |
| 54 | YJV | 4×4 | 12.8 | 260 |
| 55 | YJV | 4×6 | 14.0 | 348 |
| 56 | YJV | 4×10 | 16.8 | 530 |
| 57 | YJV | 4×16 | 19.2 | 781 |
| 58 | YJV | 4×25 | 23.3 | 1183 |
| 59 | YJV | 4×35 | 25.7 | 1507 |
| 60 | YJV | 4×50 | 25.7 | 2103 |
| 61 | YJV | 4×70 | 29.8 | 2895 |
| 62 | YJV | 4×95 | 33.7 | 3871 |
| 63 | YJV | 4×120 | 37.4 | 4868 |
| 64 | YJV | 4×150 | 41.2 | 6070 |
| 65 | YJV | 4×185 | 46.0 | 7486 |
| 66 | YJV | 4×240 | 51.4 | 9637 |
| 67 | YJV | 4×300 | 56.6 | 11969 |
| 68 | YJV | 4×400 | 63.5 | 15853 |
| 69 | YJV | 5×1.5 | 11.5 | 169 |
| 70 | YJV | 5×2.5 | 12.6 | 228 |
| 71 | YJV | 5×4 | 13.9 | 312 |
| 72 | YJV | 5×6 | 15.2 | 421 |
| 73 | YJV | 5×10 | 18.3 | 646 |
| 74 | YJV | 5×16 | 21.0 | 957 |
| 75 | YJV | 5×25 | 25.6 | 1455 |
| 76 | YJV | 5×35 | 28.5 | 1959 |
| 77 | YJV | 5×50 | 26.8 | 2617 |
| 78 | YJV | 5×70 | 31.1 | 3605 |
| 79 | YJV | 5×95 | 35.0 | 4838 |
| 80 | YJV | 5×120 | 38.9 | 6062 |
| 81 | YJV | 5×150 | 43.0 | 7576 |
| 82 | YJV | 5×185 | 47.9 | 9345 |
| 83 | YJV | 5×240 | 53.7 | 12017 |
| 84 | YJV | 5×300 | 59.2 | 14930 |
| 85 | YJV | 5×400 | 66.0 | 19799 |
| 86 | YJV | 3×1.5+1×1.0 | 10.8 | 160 |
| 87 | YJV | 3×2.5+1×1.5 | 11.5 | 180 |
| 88 | YJV | 3×4+1×2.5 | 12.6 | 244 |
| 89 | YJV | 3×6+1×4 | 13.7 | 327 |
| 90 | YJV | 3×10+1×6 | 16.1 | 487 |
| 91 | YJV | 3×16+1×10 | 18.5 | 721 |
| 92 | YJV | 3×25+1×16 | 21.7 | 1088 |
| 93 | YJV | 3×35+1×16 | 23.4 | 1396 |
| 94 | YJV | 3×50+1×25 | 25.7 | 1849 |
| 95 | YJV | 3×70+1×35 | 29.6 | 2541 |
| 96 | YJV | 3×95+1×50 | 32.7 | 3423 |
| 97 | YJV | 3×120+1×70 | 36.3 | 4374 |
| 98 | YJV | 3×150+1×70 | 40.0 | 5286 |
| 99 | YJV | 3×185+1×95 | 44.5 | 6592 |
| 100 | YJV | 3×240+1×120 | 49.7 | 8459 |
| 101 | YJV | 3×300+1×150 | 54.6 | 10513 |
| 102 | YJV | 3×400+1×185 | 61.5 | 13764 |
| 103 | YJV | 3×1.5+2×1.0 | 11.8 | 161 |
| 104 | YJV | 3×2.5+2×1.5 | 12.2 | 205 |
| 105 | YJV | 3×4+2×2.5 | 13.5 | 280 |
| 106 | YJV | 3×6+2×4 | 14.7 | 380 |
| 107 | YJV | 3×10+2×6 | 17.1 | 561 |
| 108 | YJV | 3×16+2×10 | 19.8 | 838 |
| 109 | YJV | 3×25+2×16 | 23.3 | 1267 |
| 110 | YJV | 3×35+2×16 | 25.0 | 1577 |
| 111 | YJV | 3×50+2×25 | 27.4 | 2135 |
| 112 | YJV | 3×70+2×35 | 30.8 | 2930 |
| 113 | YJV | 3×95+2×50 | 35.2 | 3982 |
| 114 | YJV | 3×120+2×70 | 39.0 | 5112 |
| 115 | YJV | 3×150+2×70 | 42.7 | 6034 |
| 116 | YJV | 3×185+2×95 | 47.5 | 7589 |
| 117 | YJV | 3×240+2×120 | 63.8 | 9701 |
| 118 | YJV | 3×300+2×150 | 70.4 | 12064 |
| 119 | YJV | 3×400+2×185 | 78.0 | 15673 |
| 120 | YJV | 4×1.5+1×1.0 | 11.8 | 161 |
| 121 | YJV | 4×2.5+11.5 | 12.4 | 216 |
| 122 | YJV | 4×4+1×2.5 | 13.7 | 296 |
| 123 | YJV | 4×6+1×4 | 14.9 | 400 |
| 124 | YJV | 4×10+1×6 | 17.7 | 603 |
| 125 | YJV | 4×16+1×10 | 20.3 | 898 |
| 126 | YJV | 4×25+1×16 | 24.0 | 1361 |
| 127 | YJV | 4×35+1×16 | 26.2 | 1768 |
| 128 | YJV | 4×50+1×25 | 28.4 | 2370 |
| 129 | YJV | 4×70+1×35 | 32.2 | 3275 |
| 130 | YJV | 4×95+1×50 | 37.0 | 4402 |
| 131 | YJV | 4×120+1×70 | 40.8 | 5596 |
| 132 | YJV | 4×150+1×70 | 46.1 | 6805 |
| 133 | YJV | 4×185+1×95 | 51.2 | 8467 |
| 134 | YJV | 4×240+1×120 | 68.2 | 10859 |
| 135 | YJV | 4×300+1×150 | 70.4 | 13497 |
| 136 | YJV | 4×400+1×185 | 78.0 | 17736 |
