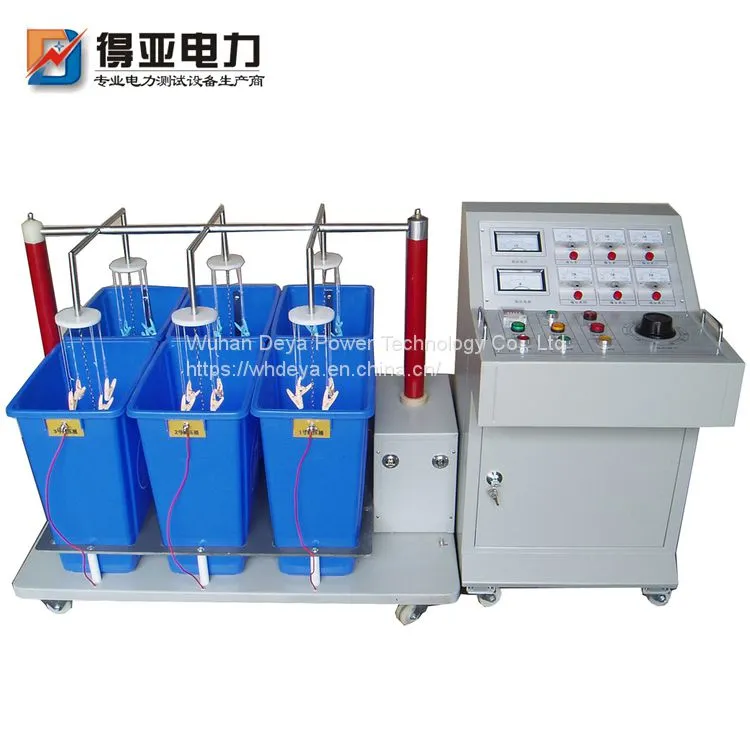

Insulating boots (gloves) withstand voltage test device DY-JX

1、 Product introduction

DY-JX insulating boots (gloves) testing device is designed and produced by our company according to the test procedures of insulating boots (gloves) and the opinions of users. This product effectively solves the past irregular testing methods, thus simplifying the testing procedures and improving the testing speed. More reliably identify the leakage current, insulation aging, power frequency withstand voltage and other parameters of insulating boots (gloves). It guarantees the safety of test workers and is an ideal special equipment for insulating boots (gloves). Its main features: 3 pairs of insulating boots (gloves) can be tested at the same time, and the leakage circuit of each pair can be read to accurately judge the unqualified insulating boots (gloves); Casters are installed at the bottom of the structure, which can be moved freely.

2、 Technical parameters

1. Input voltage:~220V50HZ

2. Output voltage: 0-30KV

3. Capacity: 3KVA

4. Number of tests: 3 pairs each time

5. Medium: insulating boots (gloves) test vehicle 80KG

Power frequency withstand voltage test bench 70KG
