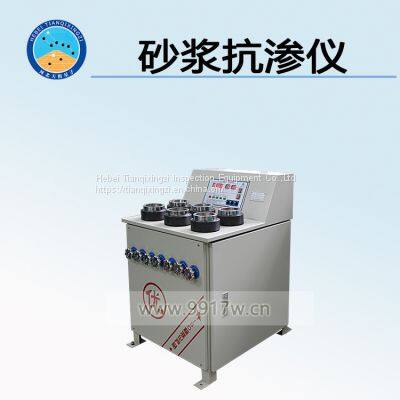

TDSJ-KS2 Cement Mortar Impermeability Tester (mortar Permeability Tester)

I. Product introduction

TDSJ-KS2 cement mortar impermeability tester (mortar permeability tester) is made by Hebei Tianqi Xingzi Testing Equipment Co., LTD. According to the industry standard JTG of Ministry of Transport, PRC 3420-2020 "Highway Engineering Cement and Cement Concrete Test Rules" T0568-2005 "Cement Concrete Impermeability Test Method" developed and produced.

The properties of mortar and concrete are basically the same, for some special purpose mortar, such as waterproof mortar, but also put forward the requirements of impermeability, that is, mortar has resistance to pressure water penetration performance.

Can be used to determine the impermeability of mortar, put on other forms of test mold and fixture, can also do other waterproof materials (such as linoleum) water permeability test.

Ii. Technical parameters

1. Maximum allowable pressure: 1.47Mpa

2. Pump parameters:

Plunger diameter: 10 mm

Plunger stroke: 10 mm

Plunger reciprocating frequency: 154 times/min

Flow rate: 0.11 L/min

3. Geometric parameters of mold test:

Upper mouth diameter: 70 mm

Lower mouth diameter: 80 mm

Height: 30 mm

4. Number of test pieces at a time: 6

5. Working mode: automatic constant pressure and manual constant pressure

6. Electric motors

Model number: A02-5624IMB14

Power: 90 watts rotational speed; 1500 RPM

7. Overall size: 550*500*810 mm

8. The weight of the machine: about 75kg
