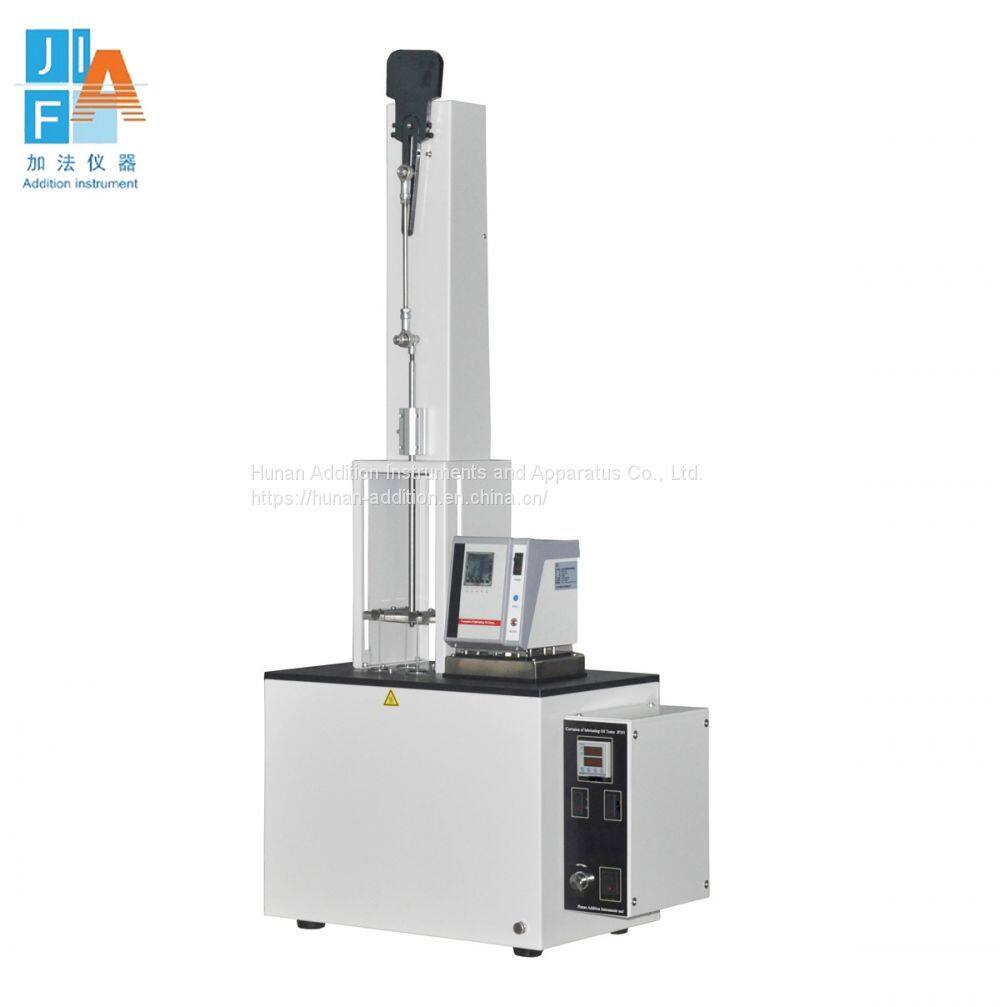

Corrosion Tester of Lubricating Oil Analyser

Corrosion of lubricating Oil Tester

 Product Model: JF391

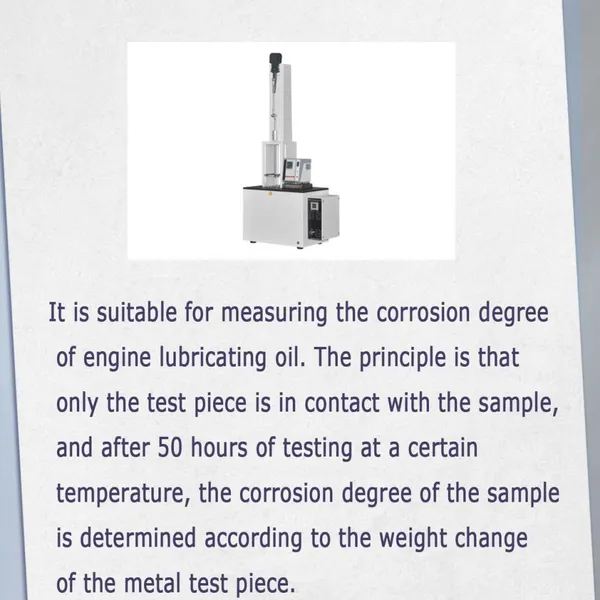

Product Introduction

It is suitable for measuring the corrosion degree of engine lubricating oil. The principle is that only the test piece is in contact with the sample, and after 50 hours of testing at a certain temperature, the corrosion degree of the sample is determined according to the weight change of the metal test piece.

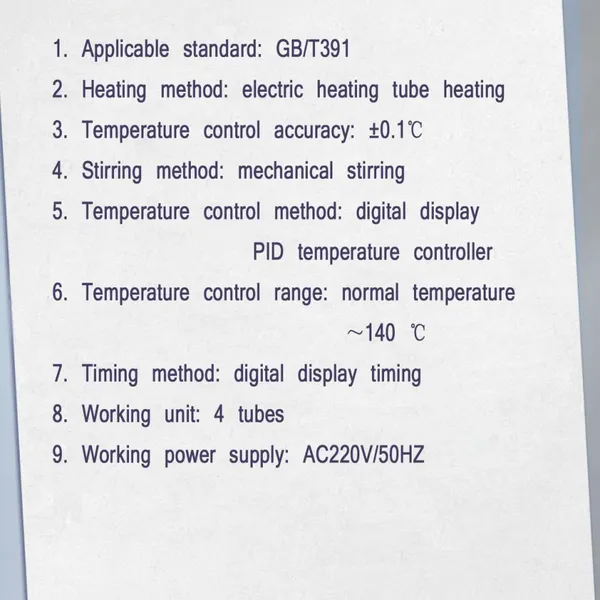

Technical Parameter

1. Applicable standard: GB/T391

2. Heating method: electric heating tube heating

3. Temperature control accuracy: ±0.1℃

4. Stirring method: mechanical stirring

5. Temperature control method: digital display PID temperature controller

6. Temperature control range: normal temperature ~ 140 ℃

7. Timing method: digital display timing

8. Working unit: 4 tubes

9. Working power supply: AC220V/50HZ

Main Feature

1. 4 standard lead sheets 20×45×1.5mm;

2. Digital display of microcomputer temperature controller, accuracy 0.1℃, PT100 sensor;

3. 4 standard glass test tubes 270×30mm;

4. Microcomputer timer, digital display, with wind alarm;

5. Oil bath heating, liquid level protection and overheating;

6. Mechanical stirring device to reduce the error of manual intervention;

7. Stainless steel heater, stainless steel bath body.
