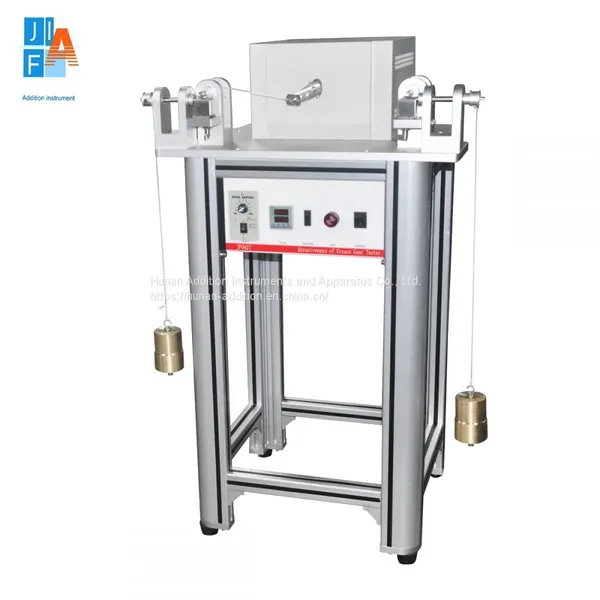

Abrasiveness of Grease Gear Tester

Abrasiveness of Grease Gear Tester

 Product model: JF0427

Product Introduction

This instrument is suitable for evaluating the gear wear value of grease. The test method is to reciprocate a test gear with known wear properties coated with test grease under a specified load, and take the average mass loss of the copper gear as the wear value after a specified number of cycles.

Technical Parameter

1. Applicable standard: SH/T0427 FS 791 B335.2

2. Working unit: 4 groups

3. Counting method: rotation counter

4. Operation cycle: 0～6500cy adjustable

5. Working power supply: AC220v 50hz

6. Loading weight: 22.24N 44.48N

7. Movement mode: sinusoidal movement

8. Amplitude: 79.76mm

9. Power of the whole machine: 1.5KW

Main Feature

1. A set of standard brass gears and steel gears;

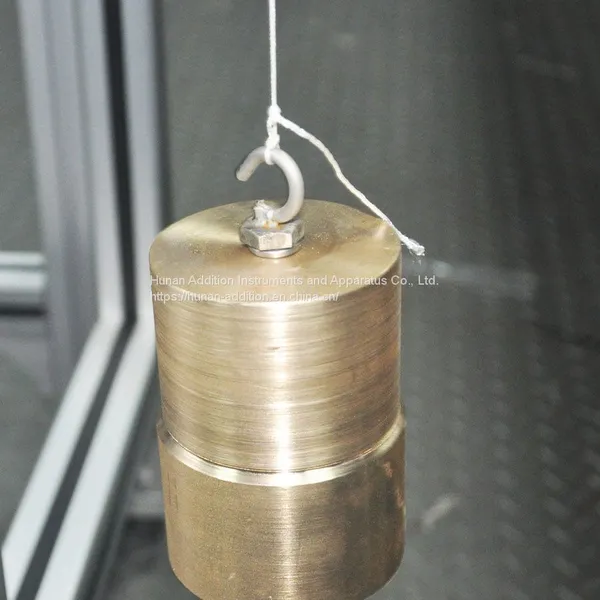

2. Two weights of 22.24n and 44.28N;

3. The digital display rotation counter records the working cycle;

4. There is a container box under the steel gear;

5. Driven by stepping motor to make the amplitude more;

6. The operation cycle can be adjusted according to the requirements;

7. Synchronous belt synchronous wheel drive, high precision;
