ASTM D1092 Lubricating Grease Apparent Viscosity Tester

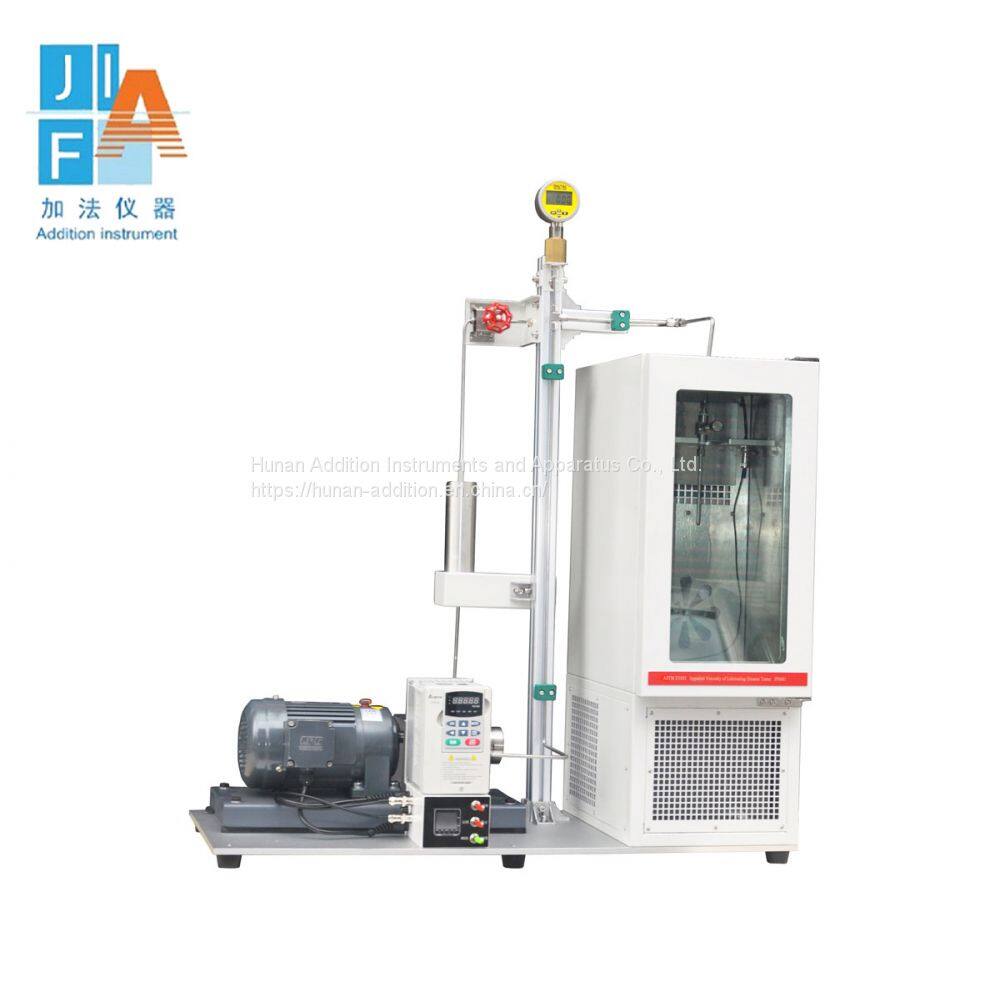

Lubricating Grease Apparent Viscosity Tester   ASTM D1092

 Product Model: JF0681

Instrument Introduction

The instrument mainly measures the apparent viscosity of lubricating grease and is used to predict the pressure drop in the lubricating grease system under the specified temperature and steady flow state.

Technical Parameter

1. Applicable standard: ASTM D1092 SH/T0681

2. Constant temperature method: external thermostat

3. Refrigeration method: high-quality compressor refrigeration

4. Temperature control: digital display PID temperature controller

5. Pressure display: pressure gauge

6. Pressure control: pressure regulating valve

7. Temperature control accuracy: ±0.1℃

8. Working power supply: AC220V 50HZ

9. Power of the whole machine: 600W

Main Feature

1. Stainless steel sample cylinder, precision machined, matched with precision piston;

2. Four separate pressure pipeline systems;

3. 8 sets of special capillaries, which meet the standard requirements;

4. Microcomputer temperature controller, digital display, PT100 temperature sensor, high precision

5. Integrated hydraulic pump, the flow is more stable;

6. Imported motor drive gearbox;

7. Electric switching speed, easy to operate;

8. A set of special tools
