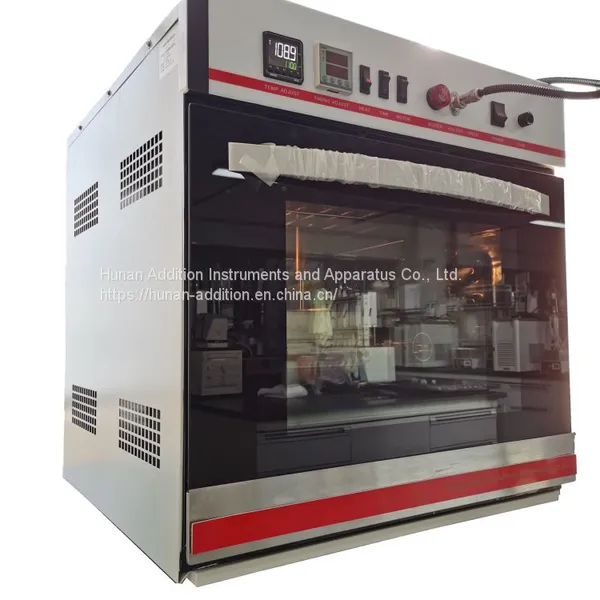

Lubricating Grease Adhesion Tester
Product model: JF0469
Instrument introduction
This instrument is manufactured in accordance with the SH/T0469 standard and is suitable for measuring the adhesion of grease to metal surfaces.
Technical Parameter
1. Applicable standard: SH/T0469
2. Timing method: digital display timer
3. Temperature control method: digital PID temperature controller
4. Heating method: stainless steel electric heating tube heating
5. Temperature control range: normal temperature～200℃
6. Motor speed: 100～350±10r/min adjustable
7. Working power supply: AC220V/50HZ
8. Power of the whole machine: 2KW
9. Instrument size: 600*600*650mm
10. Net weight: 40KG
Performance characteristics
1. The working temperature can be raised from room temperature to 200°C. Within this range, the working temperature can be arbitrarily set according to the needs of the work, and the automatic control system in the back box is set to keep the temperature constant within the specified range.
2. Microcomputer temperature controller, digital display, accuracy ±1℃, PT100 sensor;

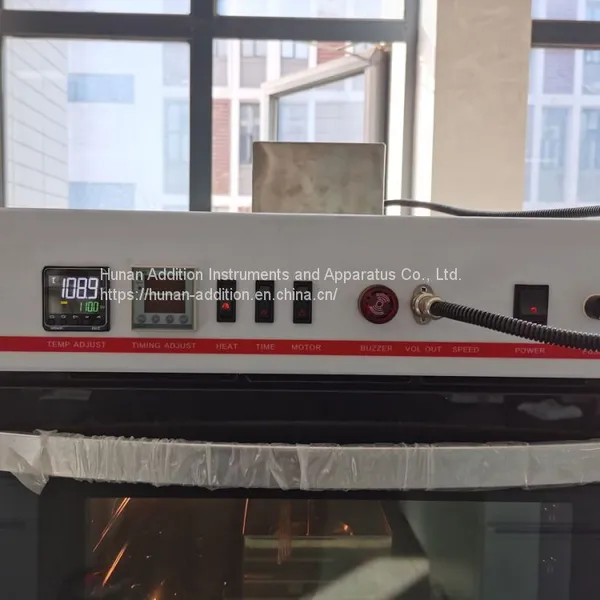

3. The heating box has a transparent observation window, which is convenient for operation and observation;
4. Digital display timer, record test time with time;
5. The surface of the instrument is treated with electrostatic spray to prevent corrosion and easy to clean;
6. Novel V-shaped door opening method, fully transparent high temperature resistant glass door;
7. There are fan circulation and lighting devices in the box;
8. Enamel liner, corrosion-resistant and easy to clean
9. Air guide cooling system, when the surface temperature of the instrument is too high, it will automatically start to dissipate heat;
