Product Description
Features:

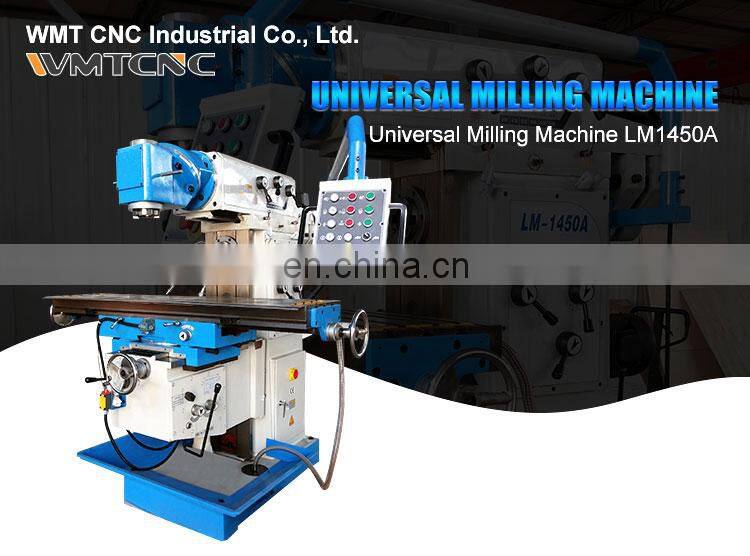

LM1450A universal swivel head milling machine is based on theLM1450, installation of rotary table 45 degrees, processing of a
wide range ,three-axes automatic feeds, large torque and strong power,1.5KW, fast-moving 2000mm/min.Spindle taper is ISO 50.
LM1450A universal swivel head milling machine is based on theLM1450, installation of rotary table 45 degrees, processing of a
wide range ,three-axes automatic feeds, large torque and strong power,1.5KW, fast-moving 2000mm/min.Spindle taper is ISO 50.
Specifications:
Specification | LM1450A |
Spindle taper | ISO50(V) ISO50(H) |
Distance from vertical spindle to working table | 0-450mm |
Distance between spindle axis and ram surface | 100-500 mm |
Arm travel | 500mm |
Rabge of spindle speed | (12)60-1750r.p.m(V).(12)60-1800r.p.m(H) |
Swivel angle of swivel head | 360degrees |
Workbench maximum turning around | 45 degrees |
Table size | 1600x360mm |
Table travel(horizontal/cross/vertical) | 1000/340/450mm |
Range of longitudinal travel | (8steps)30-630mm/min(max2000) |
Range of cross travel | (8steps)30-630mm/min(max2000) |
Range of vertical travel | (8steps)18-300mm/min (max630) |
T-slot NO./width/distance of table | 3/18/80mm |
Main motor | 4.0kw (V)4.0KW(H) |
Motor for rapid devtce of table | 1500w |
Motor for vertical devtce of table | 1500w |
Motor of cooling pumps | 120w |
Speed of cooling pumps | 25L/min |
Max weight of workpiece | 600kg |
Overall dimension | 2120x2000x2250mm |
N.W/C.W | 2650/2850kg |

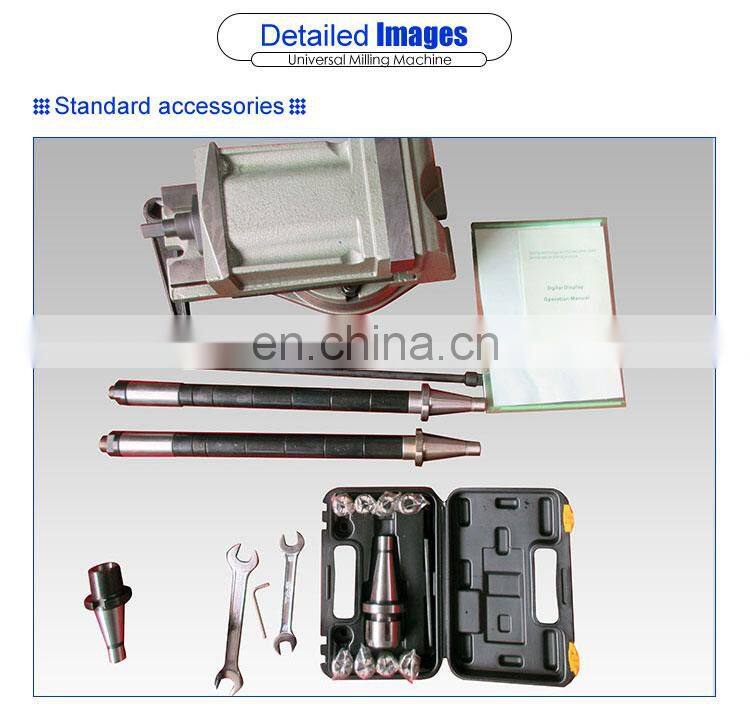

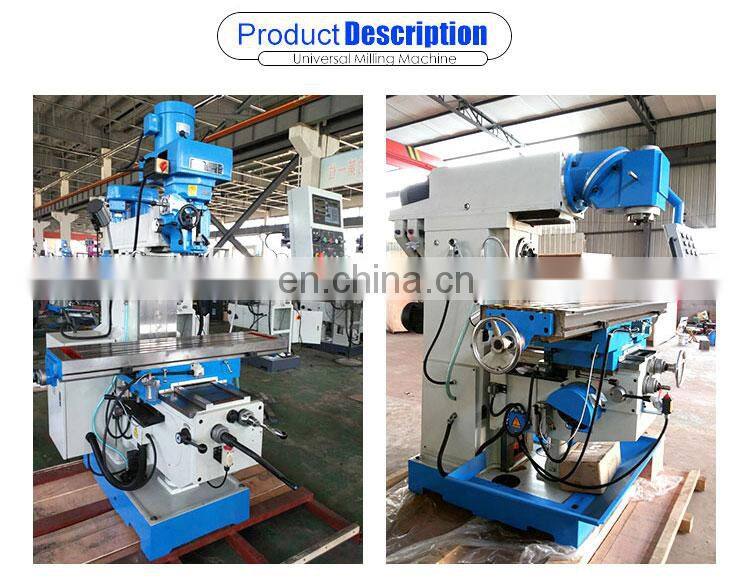

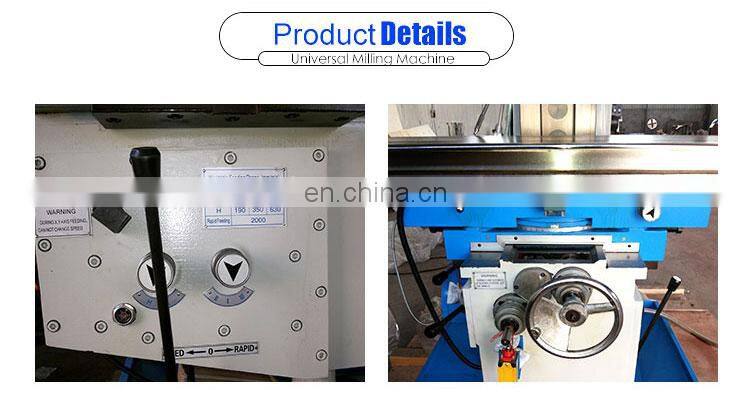

Detailed Images
Related Products
Packing&Shipping
Company Introduction

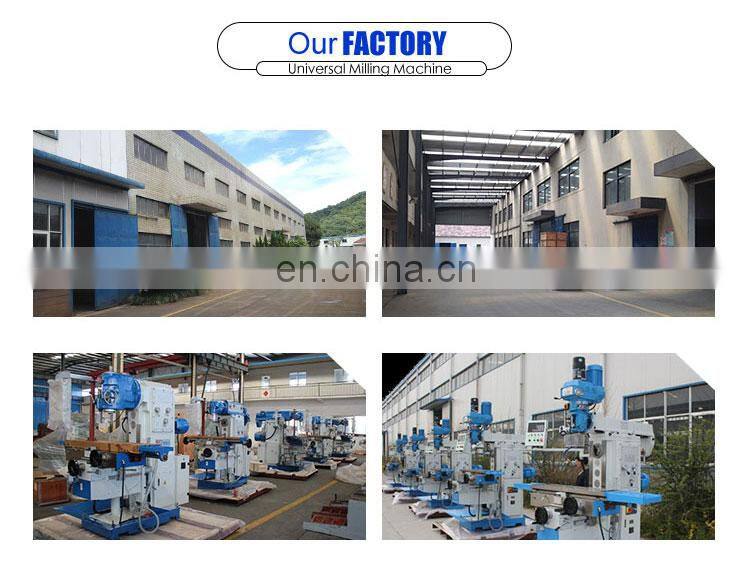

Our company
