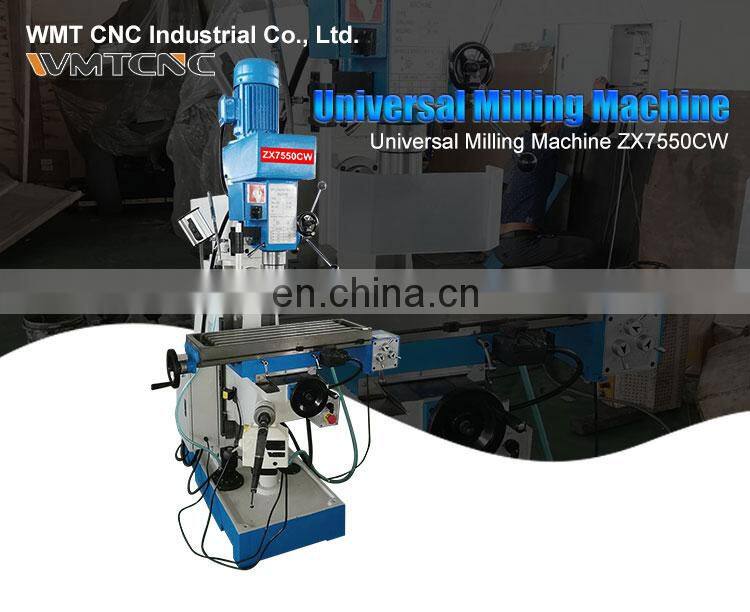

ZX7550CW Universal Milling Machine With China Direct Sale Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XW6036A XW6036B Knee-type Horizontal Universal Milling Machine for SaleNegotiableMOQ: 1 -
LM1450A Bed Type Knee Type Milling Machine With Good RigidNegotiableMOQ: 1
-
Model Z5040T Z5040ET 40mm Vertical Drilling Machine With CE StandardNegotiableMOQ: 1
-
Vertical Type Universal Milling Machine X6332B With CE and ISO9001 for SaleNegotiableMOQ: 1
-
20mm Drill Capacity Performance Drill PressNegotiableMOQ: 1
Milling and drilling machine ZX7550CW features:
Rectanger guide way,better stbility
Headstocck swivels ±90º
Worktable turns ±45º
Easily changing from vertical milling to horizontal milling
Worktable can be automatically feed in X axis ,and equipped with "quick-reverse"unit to realize high efficiency in working
ZX7550CW Vertical milling is gear-driven ;Horizontal milling is belt-driven.
Specification |
ZX7550CW |
ZX7550ZW |
ZX5325C |
||
Max.drilling dia |
Φ50mm |
Φ50mm |
Φ50mm |
||
Max.horizontal milling dia. |
Φ100 |
Φ100 |
Φ100mm |
||
Max.vertical milling dia. |
Φ25mm |
Φ25mm |
Φ32mm |
||
Max.boring dia. |
Φ120mm |
Φ120mm |
Φ100mm |
||
Spindle taper |
ISO30, R8, MT4 |
||||
Spindle speeds range) |
V:115- 1750rpm(8) H:60-1350(8) |
V:60-1500rpm(8) H:60-1350(8) |
115-1750rpm |
||
Spindle travel |
120mm |
120mm |
125mm |
||
Table size |
240×1000mm |
240×1000mm |
260×1000mm |
||
Table travel |
400×230×350mm |
400×230×350mm |
600×280×380mm |
||
Main motor power (V/H) |
V:0.85/1.5 H:2.2mm |
V:1.5kw H:1.5kw |
0.85/1.5mm |
||
Packing size |
1140×1120×2220mm 1140×1220×2220 |
1140×1120×2220mm 1140×1220×2220mm |
1140×1200×2220mm 1140×1450×2220mm |
||
N.W/G.W |
850kg/1000kg |
900kg/1050kg |
700kg/760kg |
||
First step: (Two sets package)
