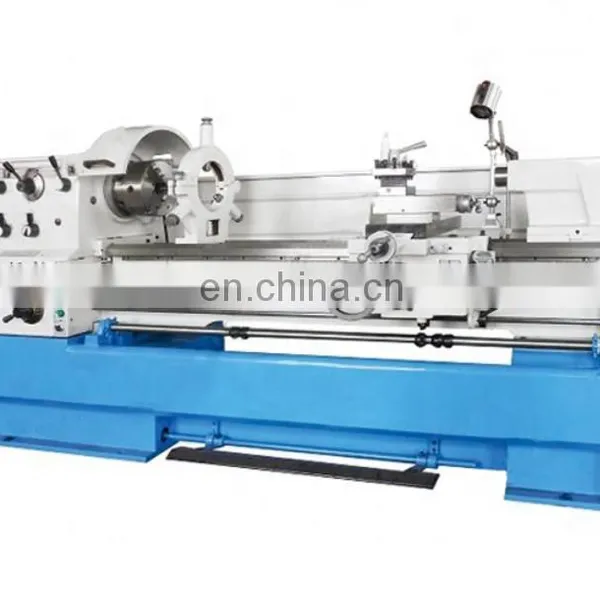

C6253 Metal Manual Lathe Machine Price for Metal Cutting
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CS6250C 1000 1500 2000 3000 mm Heavy Duty Horizontal Manual Lathe Machine for SaleNegotiableMOQ: 1 -
CS6250 Lathe Machine Heavy Duty for Metal WorkNegotiableMOQ: 1
-
CS6250C 1000mm Heavy Duty Horizontal Manual Chinese Metal Lathe Machine for Metal WorkNegotiableMOQ: 1
-
CS6250C 500mm Diameter 1500mm Length Metal Manual Lathe Machine for Industry WorkNegotiableMOQ: 1
-
2000mm With 500mm Diameter CS6250C Manual Chinese Metal Lathe Price for Metal WorkNegotiableMOQ: 1
Product Description
Universal heavy duty lathe machine C6253 X1500 2000 3000 mm
Features:
Big spindle bore: 82mm
Bed width: 400mm
Max. swing over bed: 530mm
Main Specification:
Model |
C6253×1000 |
C6253×1500 |
C6253×2000 |
||
Swing over bed |
Φ530mm(20 7/8") |
||||
Swing over cross slide |
Φ329mm(12 31/32") |
||||
Swing in gap(D×W) |
765mm×218mm(D1-8)/765mm×240mm(A1-8) |
||||
Height of center |
265mm(10 7/16") |
||||
Distance between centers |
1015mm/1515mm/2015mm |
||||
Width of bed |
400mm(15 3/4") |
||||
Max. section of cutting tool |
25mm×25mm(1"×1") |
||||
Total travel of cross slide |
320mm(12 5/8") |
||||
Total travel of top slide |
200mm(7 7/8") |
||||
Spindle bore |
Φ82mm(3 1/4") |
||||
Spindle nose |
D1-8 or A1-8 |
||||
Spindle morse taper in nose,in sleeve |
ME90/M.T.#5 |
||||
Spindle speeds number |
12 |
||||
Spindle speeds range |
20-1600 R.P.M |
||||
Leadscrew diameter&thread |
40mm(1 9/16")×4 T.P.I or pitch 6mm |
||||
Threads imperial pithches |
4-112(50 NOS) |
||||
Threads metric pithches |
0.25-7(24 NOS) |
||||
Diametral pitches DP/DP |
4-112(50 NOS) |
||||
Diametral pitches MP/MP |
0.25-14(34 NOS) |
||||
Longitudinal feeds(imperial/metric) |
0.0011"-0.0316"(50Nos)/0.01mm-0.286mm(50Nos) |
||||
Cross feeds(imperial/metric) |
0.00024"-0.0068"(50Nos)/0.01mm-0.286mm(50Nos) |
||||
Total travel of tailstock quill |
180mm(7 5/64") |
||||
Tails stock quill |
Φ75mm(2 61/64") |
||||
Taper tailstock quill |
M.T.#5 |
||||
Spindle drive motor |
10.0HP |
||||
Coolant pump motor |
1/8HP(0.1KW) |
||||
Machine dimension |
94"×38"×52"/114"×38"×52"/134"×38"×52" |
||||
Packing dimension |
98"×43"×71"/118"×43"×71"/138"×43"×71" |
||||
N.W |
2490KG/2750KG/3010KG |
||||
G.W |
2790KG/3090KG/3400KG |
||||

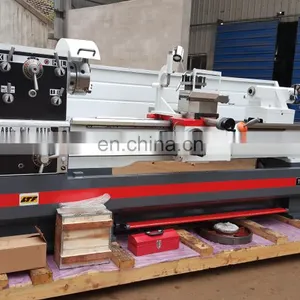

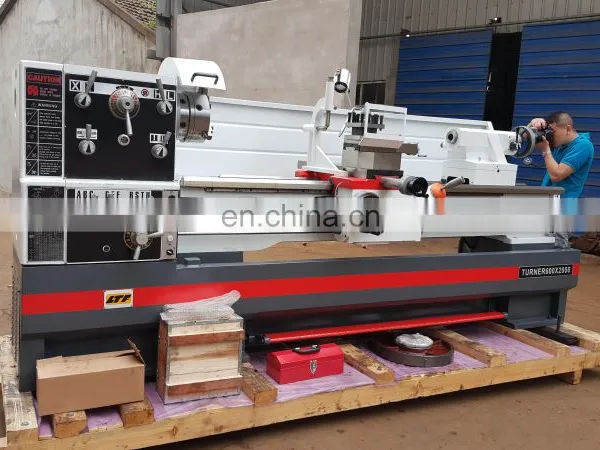

Products Show
3 Jaw chuck
82 mm big spindle bore
4 jaw chuck
Steady rest
Follow rest

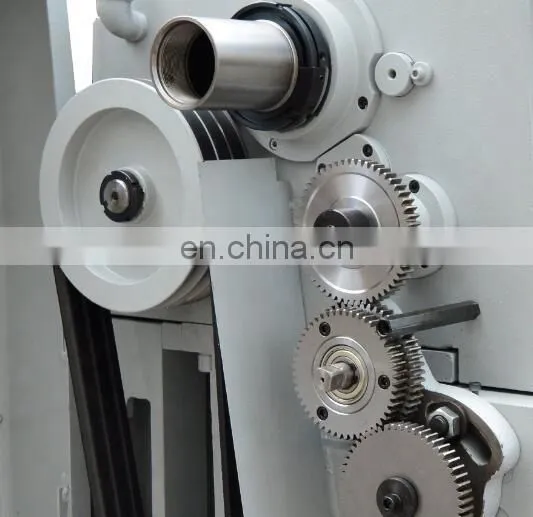

Change gears
Our Company
Exhibition
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
