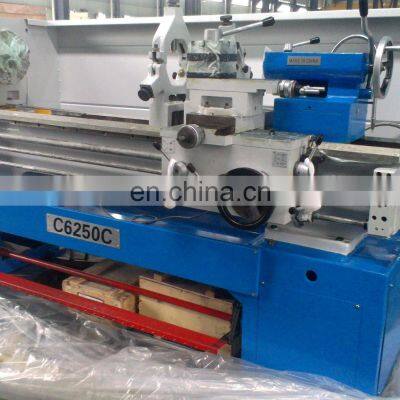

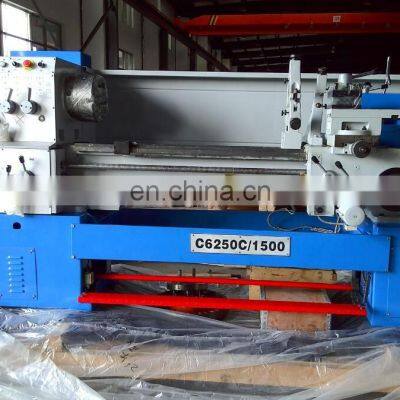

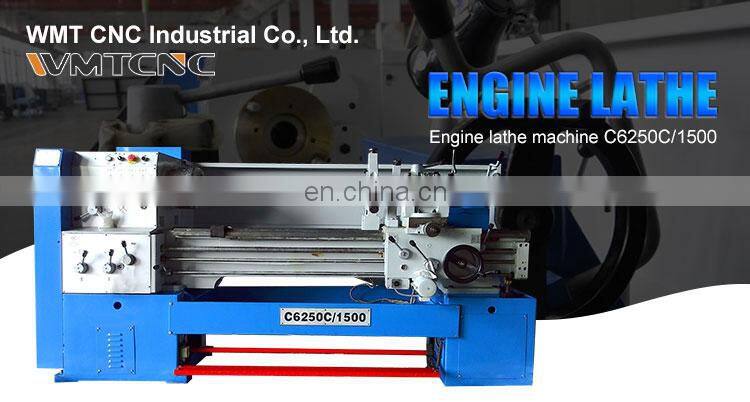

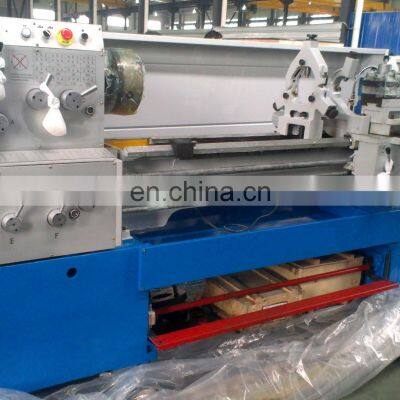

C6250C 500mm Diameter 52mm Spindle Metal Manual Lathe Machine for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C6250C 1500mm 52mm Spindle Universal Turning Lathe Machine Price for Metal WorksNegotiableMOQ: 1 -
C6250C 52mm Spindle Manual Lathe Machine for Metal TurningNegotiableMOQ: 1
-
C6240C 52mm Spindle Metal Manual Engine Lathe With Cheap PriceNegotiableMOQ: 1
-
1000 mm Length C6240C 52mm Spindle Lathe Machine Metal in the PhilippinesNegotiableMOQ: 1
-
1500mm Length C6240C 52mm Spindle Metal Manual Lathe Machine Torno for SaleNegotiableMOQ: 1

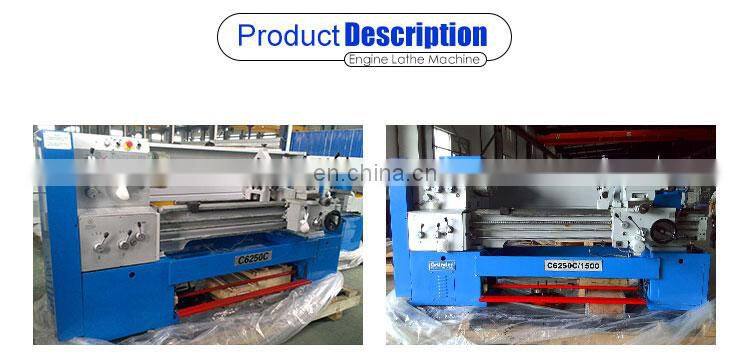

Product Description
C6250C Manual lathe machine Features:
Super voice frequency heated bedways
Hardened and grounded gears in the headstock
With 2 precision D degree taper roller bearings on the spindle
Integrated deluxe cast iron floor stand
Tolerance test certificate, test flow chart included
Specification | C6250C |
Max.swing over bed | 500mm |
Max.swing over cross slide | 330mm |
Max.swing over gap | 660mm |
Effective length of gap | 160mm |
Center Distance | 1000/1500/2000 |
Bed Width | 360mm |
Spindle hole | 52mm |
Spindle nose | ISO-C6 |
Spindle taper | MT6 |
Spindle speed(Number) | CC: (9steps)40-1400rpm |
Metric threads range | CC: 19kinds 0.5-14mm |
Inch threads range | CC: 27kinds 2-40inch |
Module threads range | CC: 11kinds 0.25-3.5mπ |
Max.travel of top slide | 95mm |
Max.travel of cross slide | 250mm |
Max.size of tool shank | 20×20mm |
Dia.of tail stock sleeve | 65mm |
Taper of tail stock sleeve | MT4 |
Max.travel of tail stock | 130mm |
Main drive motor | 4kw or 5.5kw |
Coolant pump motor | 125W |
Packing size | 750mm:2250x110x1650mm 1000mm:2450x1150x1650mm 1500mm:2880x1150x1650mm |
G.W/N.W | 750mm:1350/1750kgs 1400/1800kgs 1500/1900kgs 1000mm:1450/1480kgs 1500/1850kgs 1600/1950kgs 1500mm:1600/1950kgs 1650/2000kgs 1750/2100kgs |
Products Show
Our Company
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
