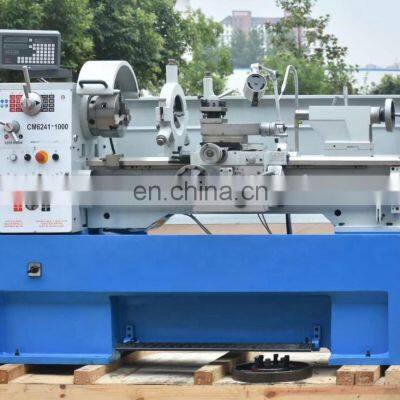

CM6241 400mm Manual Lathe Machine Metal With Variable Speed for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CM62411500 mm Variable Speed Engine Manual Lathe Machine Heavy Duty for SaleNegotiableMOQ: 1 -
C6250C 500mm Diameter 52mm Spindle Metal Manual Lathe Machine for SaleNegotiableMOQ: 1
-
C6250C 1500mm 52mm Spindle Universal Turning Lathe Machine Price for Metal WorksNegotiableMOQ: 1
-
C6250C 52mm Spindle Manual Lathe Machine for Metal TurningNegotiableMOQ: 1
-
C6240C 52mm Spindle Metal Manual Engine Lathe With Cheap PriceNegotiableMOQ: 1
Product Description
52mm spindle bore CM6241 cheap heavy engine lathe machine with CE for sale
Machine Features:
1. Super voice frequency heated bedways cheap cnc lathe machine;
2. Hardened and grounded gears in the headstock;
3. With 2 precision D degree taper roller bearings on the spindle;
4. Integrated deluxe cast iron floor stand;
5. Tolerance test certificate, test flow chart included.
Specification | CM6241×1000 /1500mm |
Swing over bed | 410mm |
Swing over cross slide | 255mm |
Swing in gap | 580mm |
Length of gap | 19mm |
Distance between centers | 1000mm /1500mm |
Center height | 205mm |
Width of bed | 250mm |
Spindle nose | D1-6 |
Spindle bore | 52mm |
Taper of spindle bore | MT6 |
Range of spindle speed | 16 changes 45-1800r/min |
Travel of compound rest | 102mm |
Max.travel of cross slide | 210mm |
Leadscrew pitch | 4T.P.I. |
Max.Section of tool | 20×20mm |
Longitudinal feeds range | 0.05-1.7mm/rev(0.002-0.067/rev) |
Cross feeds range | 0.025-0.85mm(0.001-0.0335/rev) |
Cross feeds range | 0.025-0.85mm(0.001-0.0336/rev) |
Inch threads range | 45kinds 2-72T.P.I |
Diametrical pitches range | 21kinds 8-44D.P. |
Module pitches range | 18kinds 0.3-3.5M.P. |
Dia.of tailstock sleeve | 50mm |
Travel of tailstock sleeve | 120mm |
Taper of tailstock sleeve | MT4 |
Power of main motor | 2.2/3.3kw(optional 3.0/4.5kw) |
Power of coolant pump | 90w |
Overall dimension | 1940/2440×850×1300mm |
Packing size | 2060/2560×900×1640mm |
N.W/G.W | 1500/1750kgs 1550/1800kgs |
Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
