Product Description

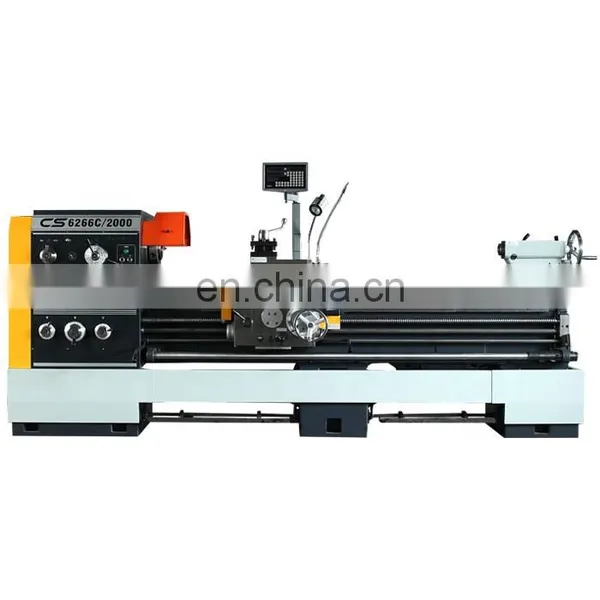

CS6250C horizontal heavy duty metal engine lathe machine with CE
Perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.
Machine Specification
Specification | CS6250C |
Max. swing over bed | Φ500mm |
Max. swing in gap | Φ710mm |
Max. swing over slide | Φ300mm |
Max. workpiece length | 1000/1500mm/2000/3000mm |
Spindle bore | Φ105mm |
Type of spindle | ISO 702/II NO.8 com-lock type |
Spindle speed | 12 steps |
36-1600rpm | |
Spindle motor | 7.5kw |
Diameter of quill | Φ90mm |
Max. travel of quill | 150mm |
Taper of quill | MT5 |
Tool O.D. size | 25×25mm |
Max. X travel | 145mm |
Max. Z travel | 320mm |
X feed range | 65 kinds 0.063-2.52mm/r |
Z feed range | 65 kinds 0.027-1.07mm/r |
Metric threads | 22 kinds 1-14mm |
Inch threads | 25 kinds 28-2t.p.i |
Module threads | 18 kinds 0.5-7πmm |
Diametric pitch | 24 kinds 56-4t.p.i.π |
Cooling pump | 60w |
Length | 2632/3132mm |
3632/4632mm | |
Width | 975mm |
Height | 1270mm/1450mm |
N.W/G.W | 2100/2300kgs/2200/2400kgs |
2500/2900kgs/2600/3000kgs |

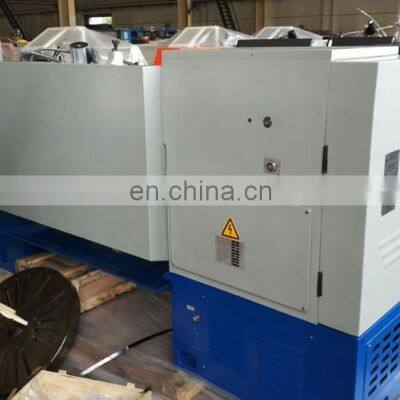

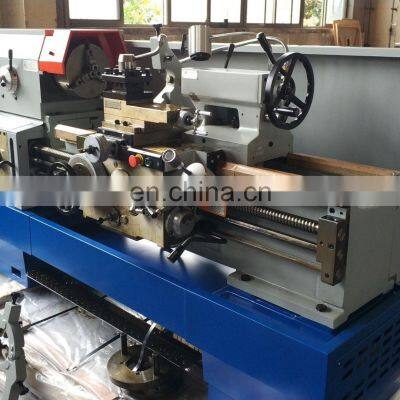

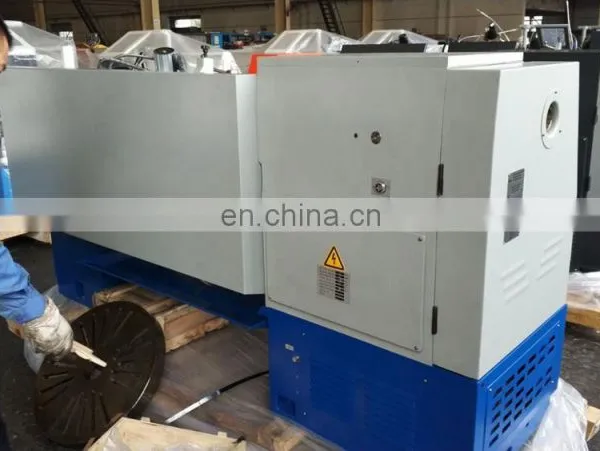

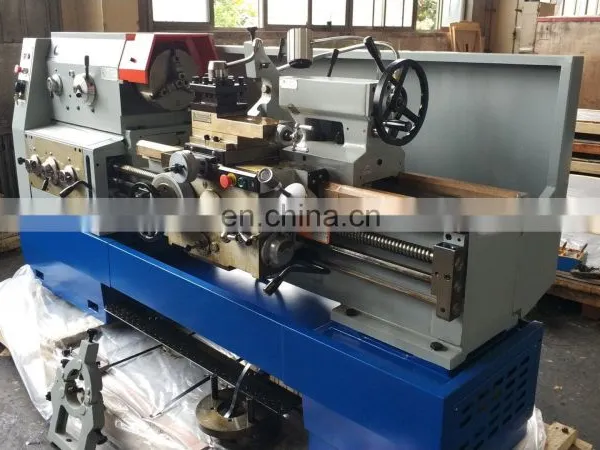

Detailed Images
