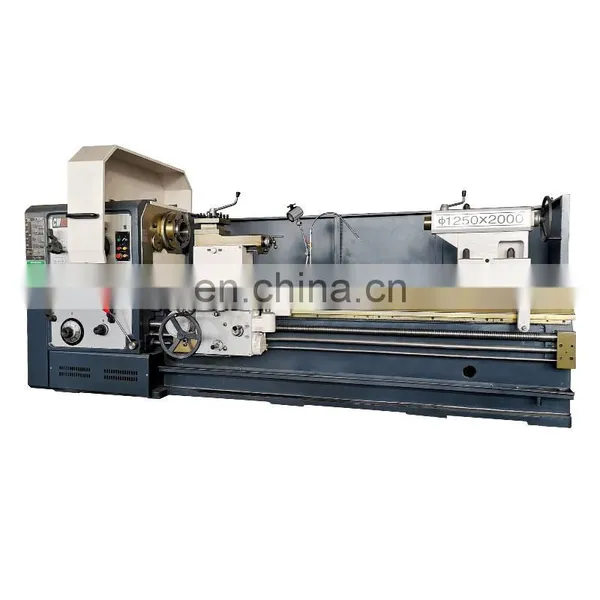

3m China Heavy Duty Horizontal Lathe Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CM6241 400mm Manual Lathe Machine Metal With Variable Speed for SaleNegotiableMOQ: 1 -
CM62411500 mm Variable Speed Engine Manual Lathe Machine Heavy Duty for SaleNegotiableMOQ: 1
-
C6250C 500mm Diameter 52mm Spindle Metal Manual Lathe Machine for SaleNegotiableMOQ: 1
-
C6250C 1500mm 52mm Spindle Universal Turning Lathe Machine Price for Metal WorksNegotiableMOQ: 1
-
C6250C 52mm Spindle Manual Lathe Machine for Metal TurningNegotiableMOQ: 1
Product Description
Heavy horizontal lathe machine is suitable for heavy cutting.
This machine is bedway highly precision with hardend gears.
Specification |
CW61125 |
Swing over bed |
1250mm |
Bed width |
755mm |
Workpiece length |
1500/ 3000/ 5000/ 6000/ 8000/ 15000mm |
Swing over toolpost |
865mm |
Max. turning length |
1300/ 2800/ 4800/5800/7800/14800mm |
Toolpost feed kinds each spindle rotate |
56 kinds |
Toolpost cross feed range each spindle rotate |
0.1-12mm/r |
Toolpost longitudinal feed range each spindle rotate |
0.05-6mm/r |
Upper toolpost |
0.025-3mm/r |
Metric thread |
43 kinds 1-20mm |
Inch thread |
29 kinds 28-3/8 teeth / inch |
Module thread |
45kinds 0.5-60mm |
Pitch thread |
25 kinds 1-56mm |
Spindle bore |
130mm |
Spindle front taper |
Metric 140 |
Spindle speed steps and range forward |
21 kinds 2-200r/min |
Reverse |
12 kinds 2.24-178 r/min |
Max.section of tool |
45×45mm |
Toolpost longitudinal travel |
630mm |
Upper toolpost travel |
300mm |
Toolpost rapid movement Longitudinal/Cross/Upper |
3470/1870/935mm/min |
Center sleeve dia and travel |
160×300mm |
Tailstock taper |
MT6 |
Tailstock longitudinal movement |
±25 |
Main motor |
Y180L-4 22KW |
Main transsion V belt specification |
2134C 2235C 2540C |
Carriage rapid motor |
JC02-21-2-1.5KW |
Coolant pump |
JCB-45 0.15KW |
Coolant pump flow |
45L/min |
4-jaw chuck |
1000/1250mm |
Steady rest |
50-470mm |
Follow rest |
50-220mm |
Detailed Images
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Company Profile
Focusing on the aim of Service Oriented and Quality formost, many products are originally designed, carefully produced and favourably promoted. It is worth mentioning that the group has successfully sold various machines to more than 50 countries and regions all over the world. The group as well as the machines enjoys wide and well-known popularity in European and American marke.Dedicated to the policy of precision and promotion from stability, the group spares no effort in innovation, improvement, integrity management and insured quality.
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
