CS6250 Lathe Machine Heavy Duty for Metal Work

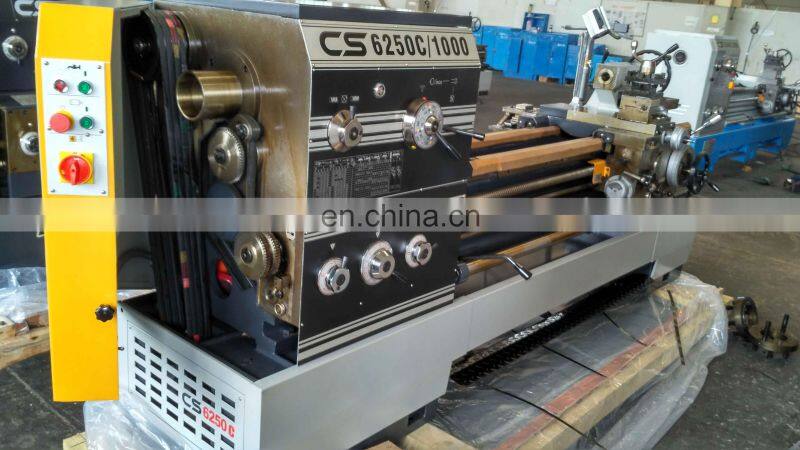

CS6250 Lathe Machine Heavy Duty for Metal Work photo-1
CS6250 Lathe Machine Heavy Duty for Metal Work photo-2

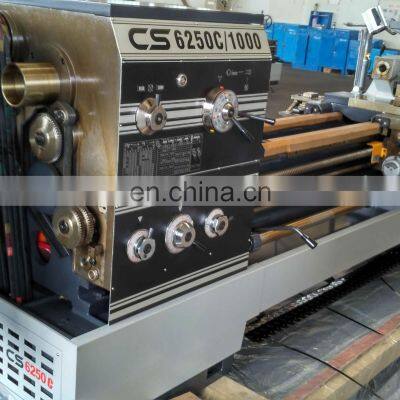

CS6250 Lathe Machine Heavy Duty for Metal Work photo-3

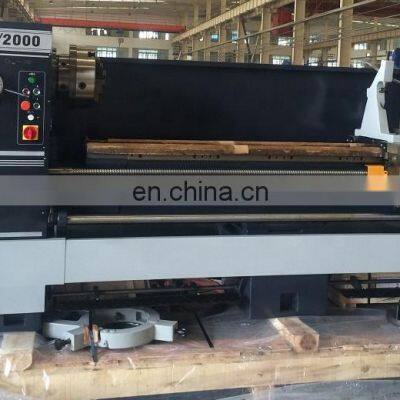

CS6250 Lathe Machine Heavy Duty for Metal Work photo-4

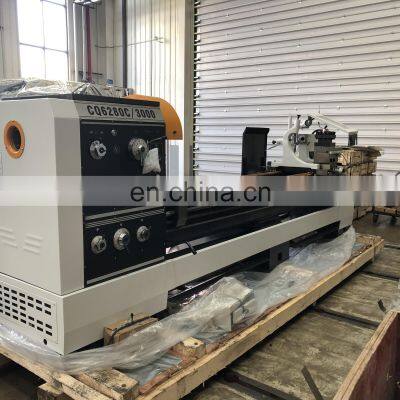

CS6250 Lathe Machine Heavy Duty for Metal Work photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

CS6250C horizontal heavy duty metal engine lathe machine with CE

Perform internal and external turning, taper turning, end facing, and other rotary parts turning;

Threading Inch, Metric, Module and D.P.;

Perform drilling, boring and groove broaching;

Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;

Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;

There are hand brake and foot brake for users to choose;

Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.

Machine Specification
Specification
CS6250C
Max. swing over bed
Φ500mm
Max. swing in gap
Φ710mm
Max. swing over slide
Φ300mm
Max. workpiece length
1000/1500mm/2000/3000mm
Spindle bore
Φ105mm
Type of spindle
ISO 702/II NO.8 com-lock type
Spindle speed
12 steps
36-1600rpm
Spindle motor
7.5kw
Diameter of quill
Φ90mm
Max. travel of quill
150mm
Taper of quill
MT5
Tool O.D. size
25×25mm
Max. X travel
145mm
Max. Z travel
320mm
X feed range
65 kinds 0.063-2.52mm/r
Z feed range
65 kinds 0.027-1.07mm/r
Metric threads
22 kinds 1-14mm
Inch threads
25 kinds 28-2t.p.i
Module threads
18 kinds 0.5-7πmm
Diametric pitch
24 kinds 56-4t.p.i.π
Cooling pump
60w
Length
2632/3132mm
3632/4632mm
Width
975mm
Height
1270mm/1450mm
N.W/G.W
2100/2300kgs/2200/2400kgs
2500/2900kgs/2600/3000kgs
Detailed Images
