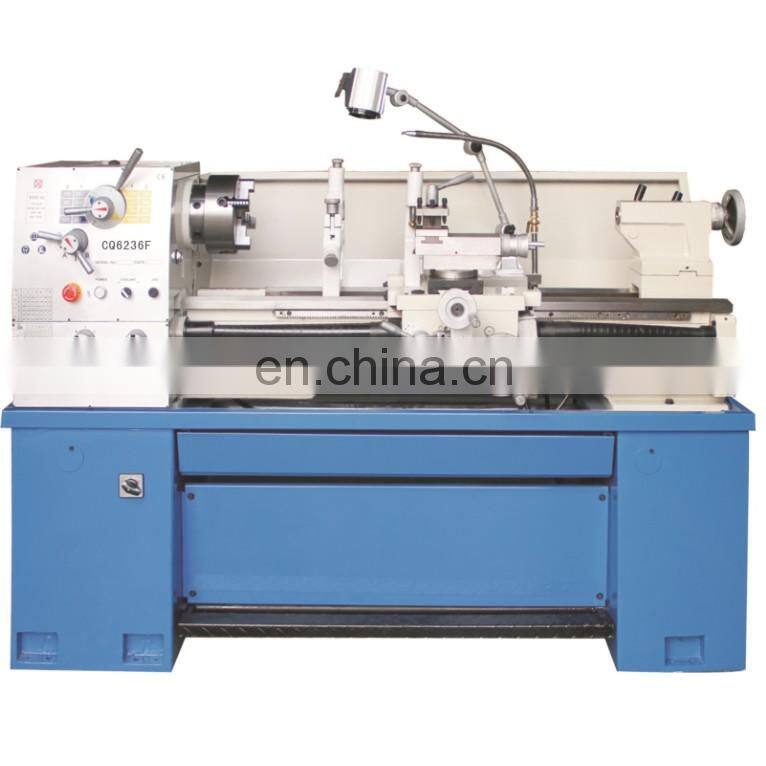

CQ6236F Big Spindle Bore Metal Lathe Machine for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BV330 Table Lathe Machine With Max. 330mm Swing Over Bed for SaleNegotiableMOQ: 1 -
BL250C Small Metal Lathe With 27mm Spindle Bore for SaleNegotiableMOQ: 1
-
BL250G Factory Directly Sale Horizontal Lathe Machine With 250mm Swing Over BedNegotiableMOQ: 1
-
BL330E Easy Change Cross and Longitudial Feeding Lathe MetalNegotiableMOQ: 1
-
BL330E-1 Lathe Machine Mini With Arc Style Headstock and Operating BarNegotiableMOQ: 1
Product Description
CQ6240F manual lathe machine Features:
1.High frequency hardened bed ways.2.Precision spindle bearing.
3.Strong power motor.
4.Various thread cutting range.
Specifications |
CQ6240F |
Max. swing over bed |
356mm |
Max. swing over cross slide |
220mm |
Max. swing in gap |
506mm |
Distance between centers |
1000mm |
Width of bed |
206mm |
Spinde bore |
φ 51mm or 38mm |
Spindle taper |
MT5 or MT6 |
Spindle speed |
45-1800rpm 16 steps |
Max. section of cutting tool |
16x16mm |
Threads inch pitches |
4-56TPI / 28 kinds(Metric lathe),4-112TPI / 40 kinds (Inch lathe) |
Threads metric pitches |
0.4-7mm / 28 kinds(Metric lathe),0.45-7.5mm / 22 kinds(Inch lathe) |
Longitudinal feeds |
0.043-0.653mm/rev (Metric lathe),0.0012-0.0297in/rev (Inch lathe) |
Tailstock quill taper |
MT3 |
Tailstock quill travel |
100mm |
Tailstock quill diameter |
45mm |
Main motor power |
1.5/2.4KW |
Cross slide travel |
150mm |
Compound rest travel |
90mm |
N.W/G.W |
700/800kgs |
Packing size |
1950x750x1500mm |

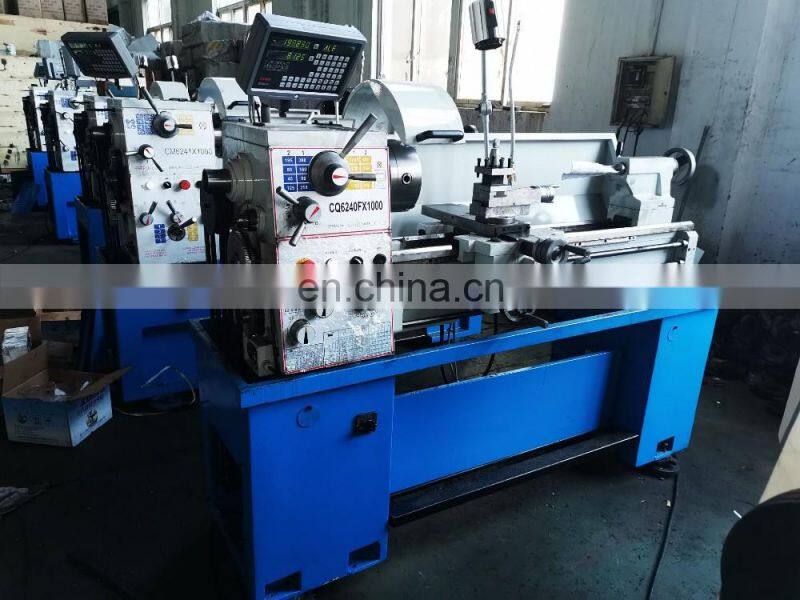

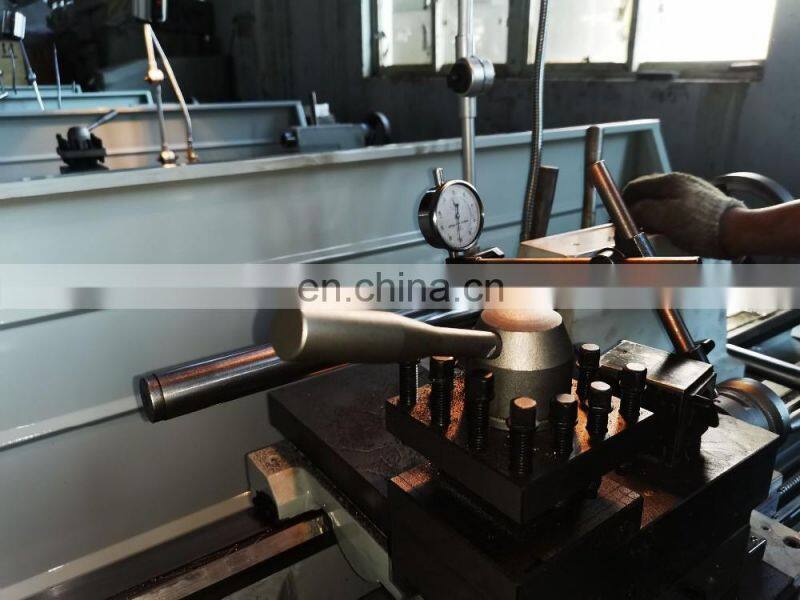

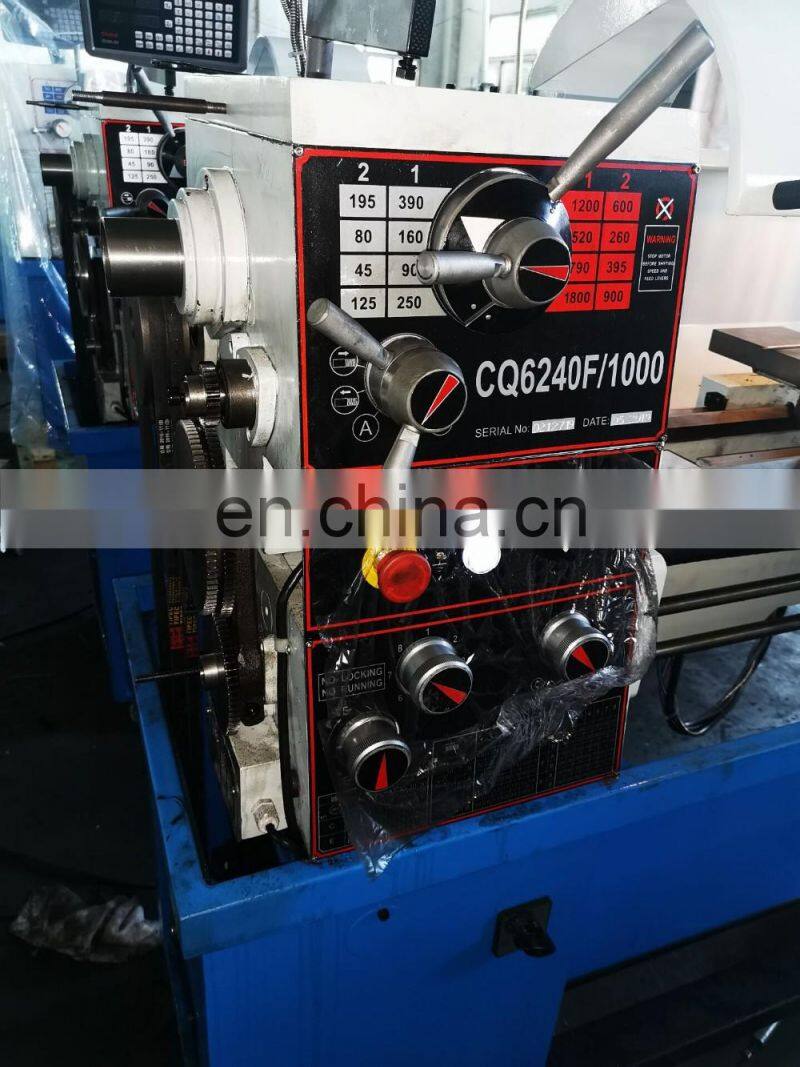

Products Show
