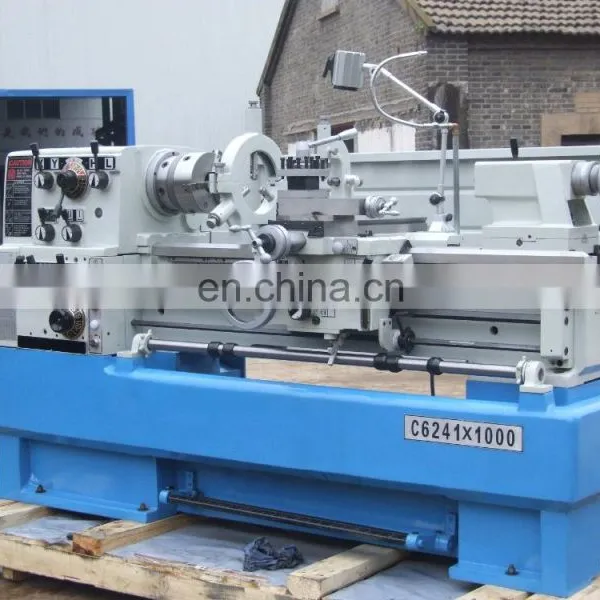

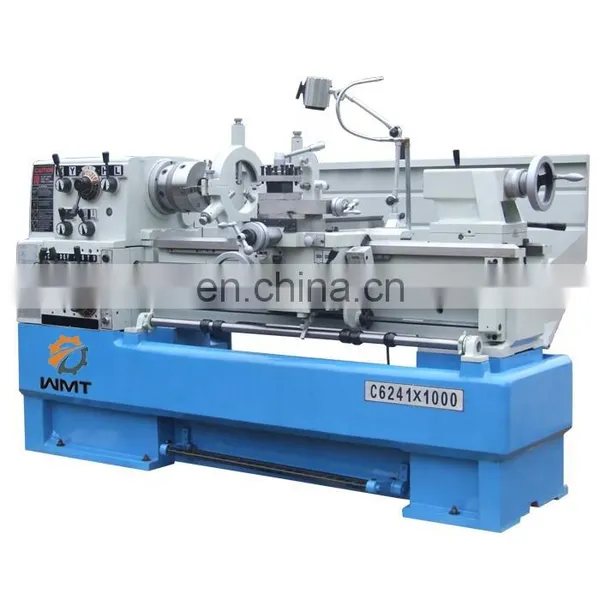

C6241 Precision Gearhead Lathe Machine With China Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GH1440W Heavy Engine Lathe Machine Price For Metal Work With Ce StandardNegotiableMOQ: 1 -
3 in 1 Mill Drill Combo AT125 Mini Hobby Lathe Machine for Hobby UsersNegotiableMOQ: 1
-
C0636A Factory Sale Price Cheap Machine Tool Precision Metal Lathe MachineNegotiableMOQ: 1
-
C6246 460mm Diameter Heavy Duty Manual Lathe Machine Price for SaleNegotiableMOQ: 1
-
SN50 Factory Use Rigid Stand Heavy Duty Lathe Turno Metal Lathe MachineNegotiableMOQ: 1
Features:
Big spindle bore lathe machine: 58mm.optional:80mm C6241*1000-3000mm
Long ground bed way
Main specification
Specification |
C6241 |
C6246 |
C6251 |
C6256 |
|||
Swing over bed |
Φ410mm |
Φ460mm |
Φ510mm |
Φ560mm |
|||
Swing over cross slide |
Φ220mm |
Φ270mm |
Φ300mm |
Φ350mm |
|||
Swing in gap |
Φ640mm |
Φ690mm |
Φ738mm |
Φ788mm |
|||
Distance between centers |
1000mm/1500mm/2000mm/3000mm |
||||||
Valid length of gap |
165mm |
200mm |
|||||
Width of bed |
300mm |
350mm |
|||||
Spindle nose |
D1-6 |
D1-8 |
|||||
Spindle bore |
Φ58mm |
Φ80mm |
|||||
Taper of spindle bore |
MT6 |
MT7 |
|||||
Range of spindle speed |
12 changes, 25-2000r/min |
12changes,25-1600r/min |
|||||
Max.travel of top slide |
128mm |
130mm |
|||||
Max.travel of cross slide |
285mm |
326mm |
|||||
Max.section of tool |
25×25mm |
||||||
Pitch thread of leadscrew |
6mm or 4T.P.I. |
||||||
Longitudinal feeds range |
42 kinds,0.031-1.7mm/rev |
35kinds,0.059-1.646mm/rev |
|||||
Cross feeds range |
42 kinds, 0.014-0.784mm/rev |
35kinds,0.020-0.573mm |
|||||
Metric threads range |
41 kinds, 0.1-14mm |
47kinds,0.2-14mm |
|||||
Inch threads range |
60 kinds, 2-112T.P.I. |
60kinds,2-112T.P.I |
|||||
Diametrical pitches range |
50 kinds, 4-112DP |
50kinds,4-112D.P. |
|||||
Module pitches range |
34 kinds, 0.1-7MP |
39kinds,0.1-7M.P. |
|||||
Tailstock quill diameter |
Φ60mm |
Φ75mm |
|||||
Tailstock quill travel |
128mm |
180mm |
|||||
Tailstock quill taper |
MT4 |
MT5 |
|||||
Power of main motor |
5.5kw(7.5HP) 3PH |
7.5kw(10HP)3PH |
|||||
Power of coolant pump |
0.1kw(1/8HP) 3PH |
||||||
Overall dimension |
2200/2750/3250×1080×1370mm |
2900/3400×1120×1430mm |
|||||
Packing size |
2250/2800/3300×1120×1620mm |
2960/3460×1130×1820mm |
|||||
Net weight |
1670/1920/2070kgs |
2335/2685kgs |
|||||
Gross weight |
1980/2265/2450kgs |
2700/3070kgs |
|||||

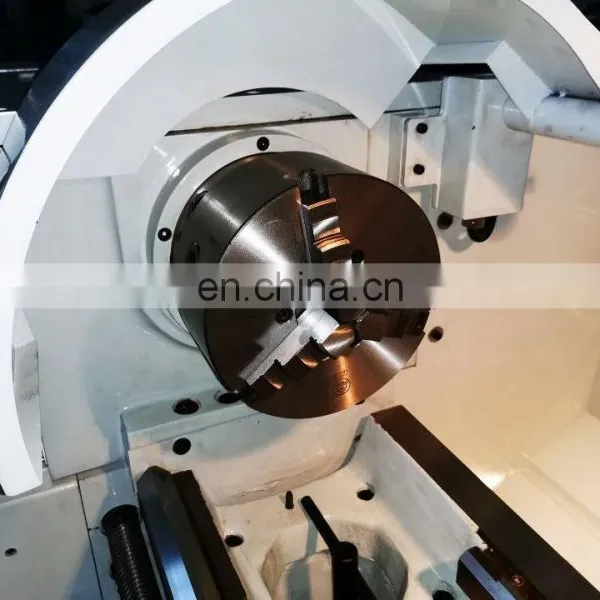

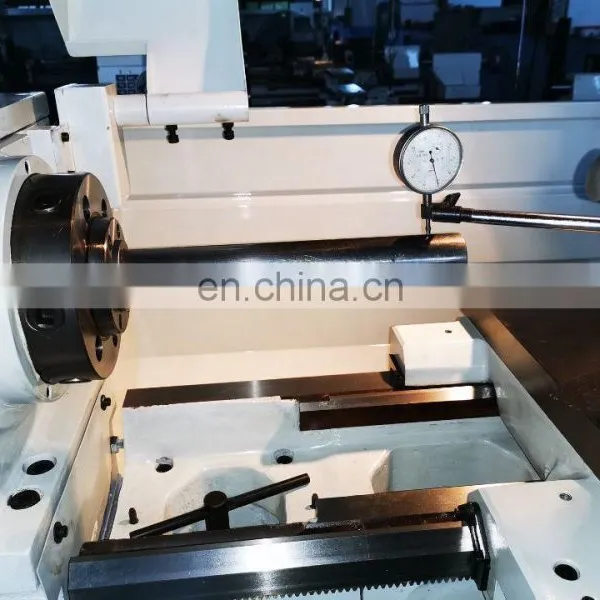

Machine Details
