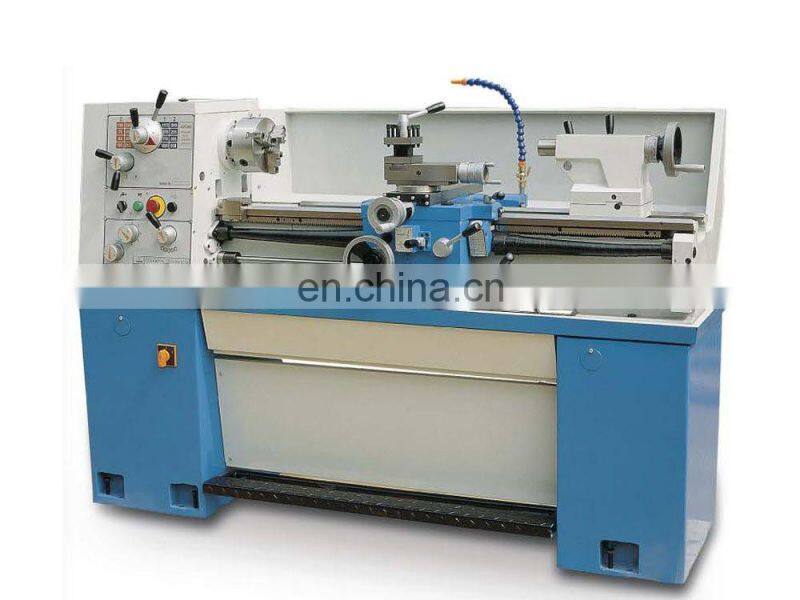

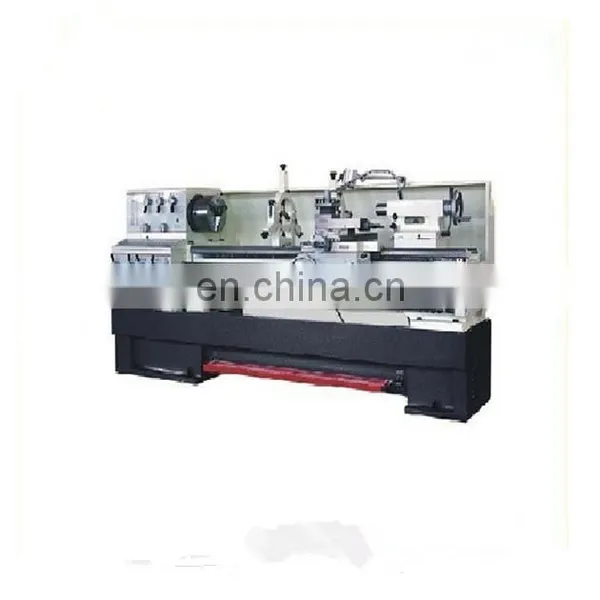

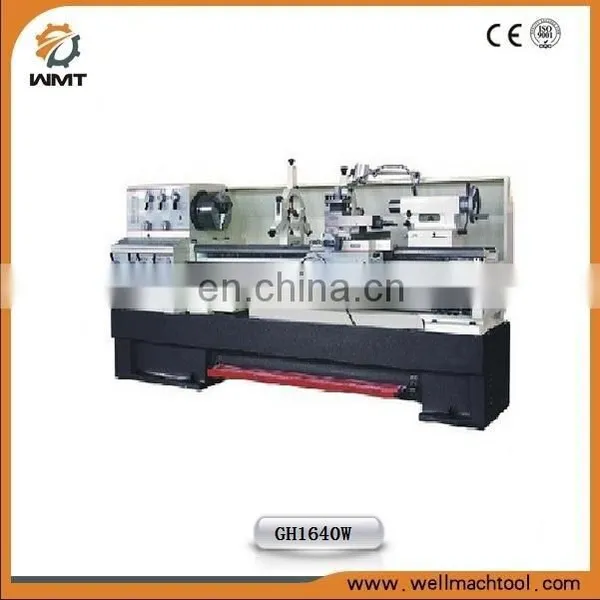

GH1440W Heavy Engine Lathe Machine Price For Metal Work With Ce Standard
- T/T Credit Card
You May Like
-
3 in 1 Mill Drill Combo AT125 Mini Hobby Lathe Machine for Hobby Users
-
C0636A Factory Sale Price Cheap Machine Tool Precision Metal Lathe Machine
-
C6246 460mm Diameter Heavy Duty Manual Lathe Machine Price for Sale
-
SN50 Factory Use Rigid Stand Heavy Duty Lathe Turno Metal Lathe Machine
-
Hot Sale CS6240 Gap Bed Way Precision Manual Lathe Machine With CE
-
Lathe Machine C0636A C0636B Horizontal Precision Metal Lathe Machine Parallel Lathe With CE
Product Description






Specification | GH1340W | GH1440W | |||
General Capacity | Max.Swing.over bed | Φ330mm(13") | Φ356mm(14") | ||
Max.Swing.over cross slide | Φ185mm(7-7/25") | Φ210mm(8-5/8") | |||
Max.Swing.over gap | Φ480mm(19") | Φ506mm(20") | |||
Bed width | 260mm(10") | ||||
Distance between centers | 1000mm(40") | ||||
Spindle | Taper of spindle bore | MT5 | |||
spindle bore | Φ40(1-1/2") | ||||
Steps of spindle speeds | 12steps | ||||
Range of spindle speeds | 40-1800rpm | ||||
Spindle nose | D-4 | ||||
Threading and Feeding | Metric thread range | 0.45~7.5mm(22kinds) | |||
Inch screw thread range | 4~112TPI(40kinds) | ||||
Range of longitudinal feeds | 0.03-0.688mm(0.0011-0.0271" in/rev) | ||||
Range of cross feeds | 0.015-0.220mm(0.0003" -0.01" in/rev) | ||||
Leadscrew | Diameter of leadscrew | Φ22mm(7/8") | |||
Pitch thread of leadscrew | 4mm(8T.P.I) | ||||
Tailstock | Travel of tailstock quill | 120mm(4-3/4") | |||
Diameter of tailstock quill | 45mm(1-25/32") | ||||
Taper of tailstock quill | MT3 | ||||
Power | Main motor power | 2.4(3HP) | |||
Coolant pump motor power | 0.04(0.055HP) | ||||
Overall dimensions of lathe(L×W×H) | 1900×740×1150mm | ||||
Packing size of lathe(L×W×H) | 1970×760×1460mm | ||||
Net Weight | 960kgs | ||||
Gross Weight | 1090kgs | ||||
Standard Accessories: | Optional Accessories: |
3 Jaw Chuck | Taper Turning Attachment |
Change Gears Set | Live Center |
Chasing Dial Indicator | Work Light |
Reduction Sleeve | Leadscrew Guard |
Dead Centers | Digital Readout |
Full Length Splash Guard | Quick Change Tool Post |
Coolant System | Chuck Guard |
Brake System | Digital Readout (2 Axis, 3 Axis) |
4 Jaw Chuck | Drill Chuck + Drill Arbor |
Face Plate | |
Steady Rest | |
Follow Rest | |
Tool Box & Tools |







Company Profile
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
