QK1319 200mm Spindle Bore Dia. Pipe Threading Machine

Jingjiang Fuji Technology Co., Ltd.
4Yrs
QK1319 200mm Spindle Bore Dia. Pipe Threading Machine thumbnail-1
QK1319 200mm Spindle Bore Dia. Pipe Threading Machine thumbnail-2
QK1319 200mm Spindle Bore Dia. Pipe Threading Machine thumbnail-3
QK1319 200mm Spindle Bore Dia. Pipe Threading Machine photo-1
QK1319 200mm Spindle Bore Dia. Pipe Threading Machine photo-2
QK1319 200mm Spindle Bore Dia. Pipe Threading Machine photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Technology Data

Main Feature

High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
（Item）
（Unit）
QK1319


Nc
Nc System
（standardequipment）:GSK980TC3
（Alternativeconfiguration）:FANUC 0i Mate Td; FANUC 0i Td ;SIMENS 808D;KND K1000Ti;GSK980TDC
Max dia.swing over bed
mm
630
Max dia.swing over cross slide
mm
340
Max.length of work-piece
mm
1500
Width of bed
mm
550
Spindle bore
mm
200
Power of spindle motor
Kw
11
Mode of spindle speed
两档变频，档内无极变速
Two gears， smooth adjustment
Range of spindle speed
r/min
低档（L）:25-120
高档（H）:100-500
Max.traverse of X/Z
mm
X:350
Z:1250
X/Z rapid traverse
mm/min
4000
X-axis motor Speed
r/min
1500
X-axis motor Torgue
N.m
10
X-axis motor Power
Kw
1.5
Y-axis motor Speed
r/min
1500
Y-axis motor Torgue
N.m
15
Y-axis motor Power
Kw
2.3
Tailstock quill Diameter
mm
100
Tailstock quill Travel
mm
250
Tailstock quill Taper
 Morse NO.5
Electric tool-post Model
LDB4-6163A
Electric tool-post No.of tool stations
Vertical four-station
Electric tool-post Dimension
mm
240×240
Turret indexing time
S
2.6
Chuck
K11-500 three jaw chuck
Positioning accuracy
mm
0.020
Repositioning accuracy
mm
0.01
Overall dimensions(L*W*H)
mm
3657×1555×1360
Machine weight
T
4.5

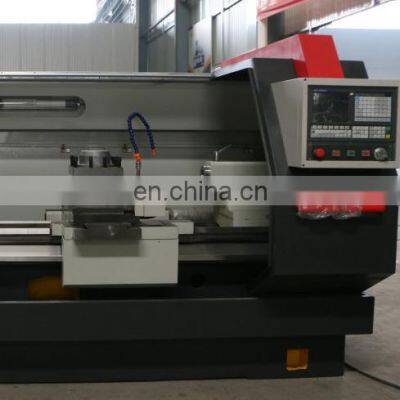

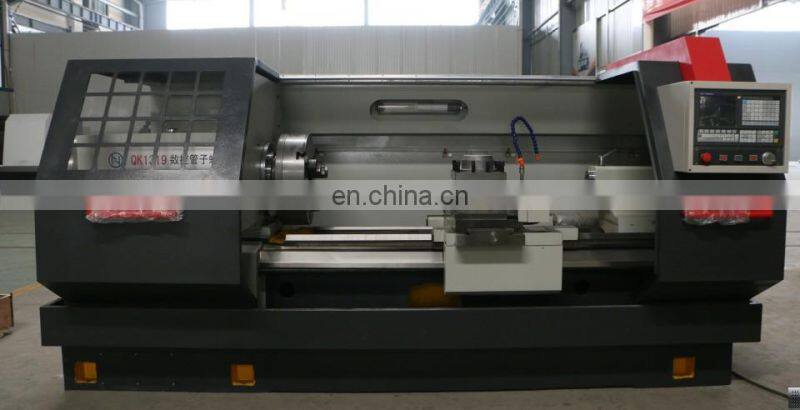

Machine pics

GSK980TDC controller


Siemens 808D controller


Fanuc Oi TF controller


Machine Accesories

Standard Accessories:
Cooling system
Auto-lubricating system
Work lamp
GSK-980TDc controller with feeding servo motor
4-Position electrical tool post
Unitary iron casting machine stand
Manual 3-jaw chuck 2 pcs


Optional Accessories:
GSK218M controller

Simens 808D controller

Simens 808D Advance controller

Fanuc Oi TF controller
6/8-Position electrical tool post
