Home > Products > CNC MILLING MACHINE > XK7113C Cnc Metal Milling Machine for Household Use With Siemens 808DA Control System
XK7113C Cnc Metal Milling Machine for Household Use With Siemens 808DA Control System
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Mini Cnc Milling XK7113A Hobby CNC Milling Machine for Metal Working in China
-
XK7113D 12000rpm High Spindle Speed Small Milling Mini CNC Mill Machine With Engraving Function
-
Cnc Milling Machine 2022 XK7136 Cnc Milling Machine Taiwan From China Factory With Competitive Price
-
XK7113D With High Quality Cnc Milling Machine
-
2022 Hot Sale XH7126 Small Milling High Precision CNC Milling Machine for Metal Processing
-
Small Milling XK7116 18000rpm High Spindle Speed Cnc Metal Milling Machine Mini
Product Description
Product Description
Features:
1. Mini hobby CNC mill machine with servo spindle motor;
2. Designed for hobby, household and factory use;
3. Rigid tapping available.
Specification | XK7113A/B | XK7113C | XK7113D | |
Max. drilling dia. | 13mm | 20mm | 13mm | |
Max. milling dia. | 13mm | 20mm | 13mm | |
Max. tapping dia. | ---- | M8 | ---- | |
Spindle speed | 3000rpm | 3000rpm | 12000rpm | |
Spendle center to column distance | 189mm | 194mm | 200mm | |
Spindle nose to table distance | 205mm | 215mm | 215mm | |
Spindle taper | ER20 | ER25 | ER20 | |
T-slot size （NxWxD） | 3/12/40mm | 3/12/40mm | 3/12/40mm | |
Worktable size | 400X140mm | 400X140mm | 400X140mm | |
X axis travel | 220mm | 220mm | 220mm | |
Y axis travel | 120mm | 120mm | 120mm | |
Z axis travel | 200mm | 200mm | 200mm | |
Main motor power | 400W | 1.2KW | 2.2KW | |
Main motor type | Brushless motor | Servo motor | Frequency motor | |
Feeding motor torque | 2.6/2.6/3.2 N.m | 2.0/2.0/3.0 N.m | ||
Feeding motor type | Stepper motor with open loop | Stepper motor with closed loop, Z axis with brake | ||
Controller system | Mach 3 | After-CNC 1500MDC | ||
Overall size(LxWxH) | 590x590x780mm | 1100x600x1380mm | ||
N.W/G.W | 90/115KGS | 310/330KGS | ||

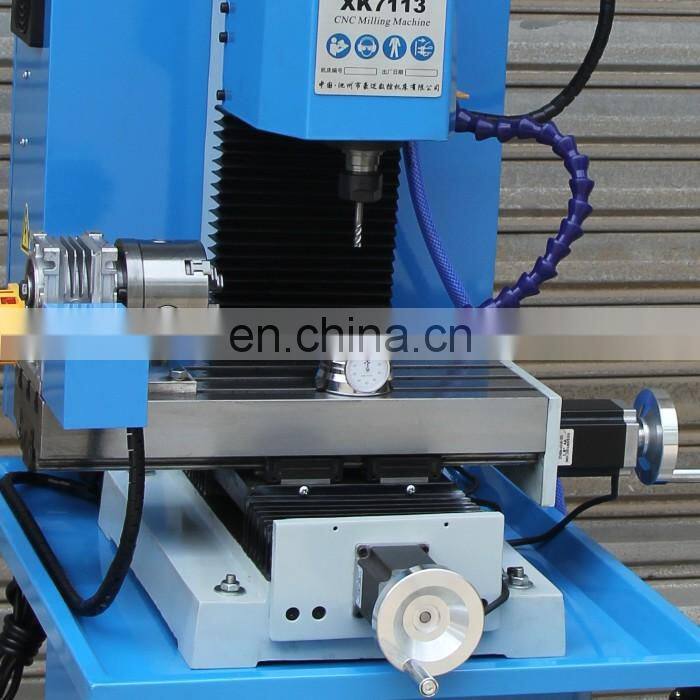

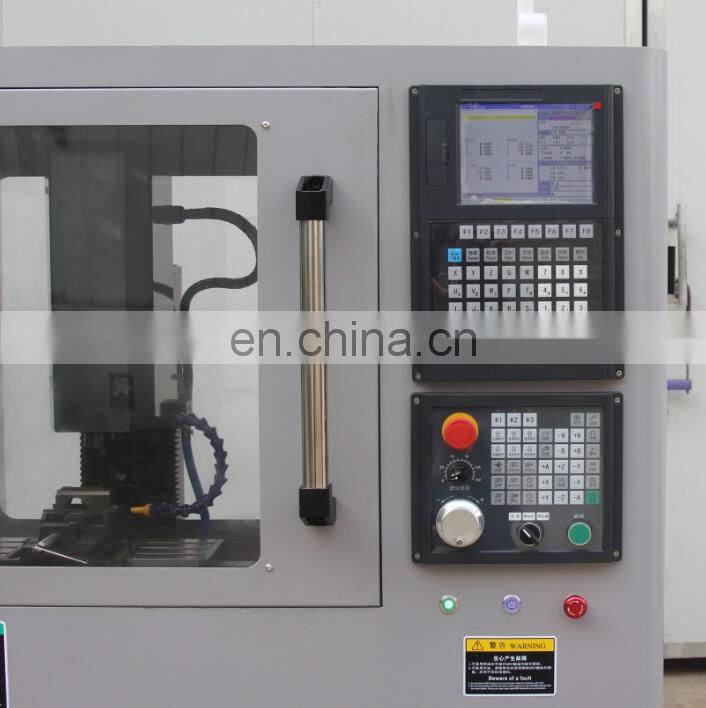

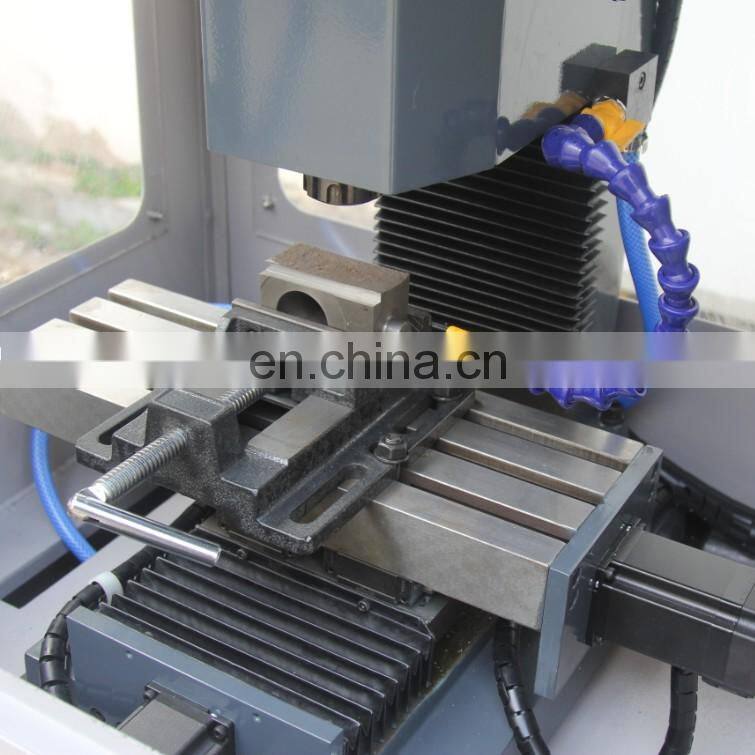

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
