5 Axis XK7140 Precision Vertical Cnc Metal Milling Machine Price With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Model VM300 Mini CNC Milling Machine With Good PriceNegotiableMOQ: 1 -
XK7126 Taiwan Spindle Linear Guide CNC Milling Machine With Siemens CNC ControllerNegotiableMOQ: 1
-
Model XK7132A Siemens or GSK Controller Heavy Duty Vertical CNC MILLING MACHINE With ISO9001NegotiableMOQ: 1
-
XK7125 Vertical CNC Milling Machine Price With CENegotiableMOQ: 1
-
XK7114 Small Size CNC Milling Machine for Metal CuttingNegotiableMOQ: 1

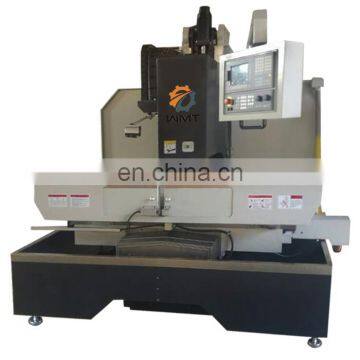

XK7140 precision vertical CNC milling machine price with CE
Main Technical specification
Specification | XK7140 |
Table size | 1700x400mm |
X/Y/Z axis travel | 1300x400x500mm |
Spindle motor | 7.5kw servo motor |
Distance between spindle center and column surface | 520mm |
Distance from spindle to table | 100-600mm |
Spindle taper | BT40 |
Machine controller | GSK990, SIMENS 808D |
Rapid speed of X/Y/Z axis | 15m/min |
X/Y/Z way motor torque | X/Y 8N/M Z10N/M |
Position precision | 0.02/300mm |
Repetable Position precision | 0.015/300mm |
Geometry precision | 0.01/1000mm |
Spindle speed | 0-8000rpm |
T-slot | 3/18/110 |
Max. load on table | 900kgs |
Machine dimension | 2600x2200x2300 |
Details for CNC miling machine XK7140
1) Semi-cove type
2) Spindle is from Taiwan, 20-8000rpm
3) Controller with manual pulse generator, easy operation
4) Full cover, 16pcs tools Cloak ATC-, 4th axis optional accessories (XH7140A is customized model)
Optional 1: Full cover
Optional 2: 16 pcs Cloak ATC, 4th axis
