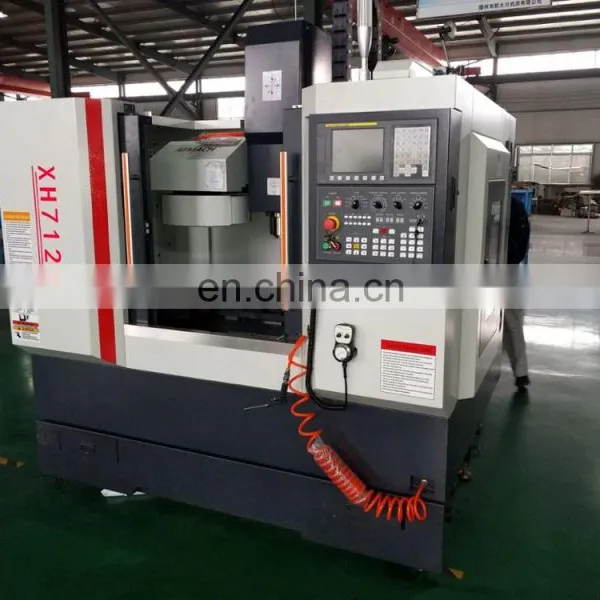

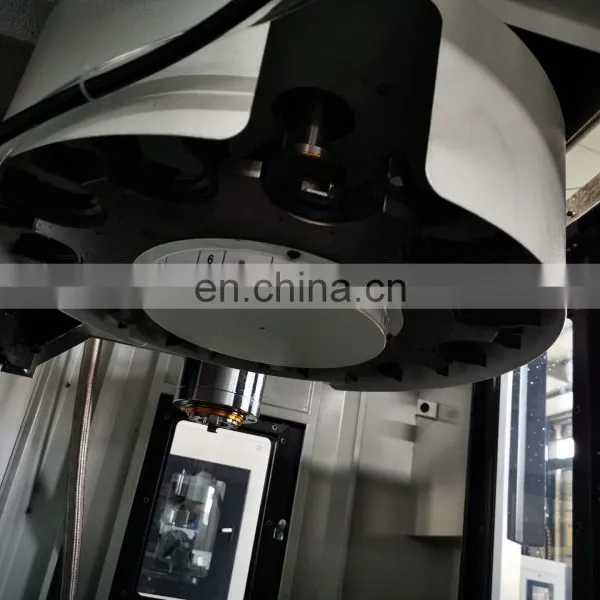

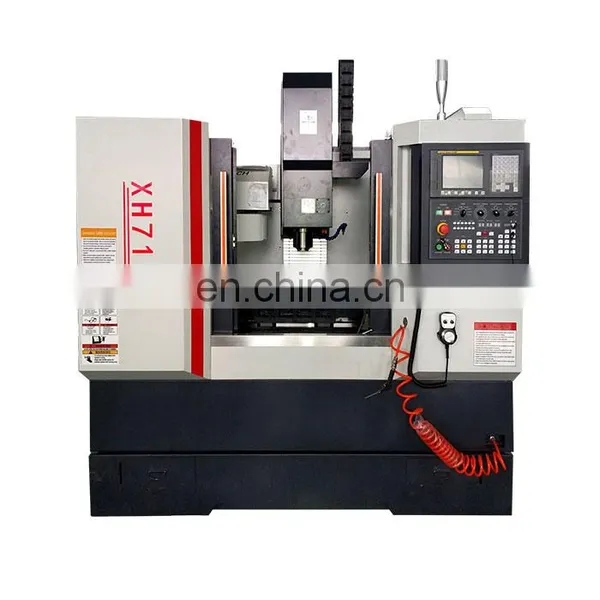

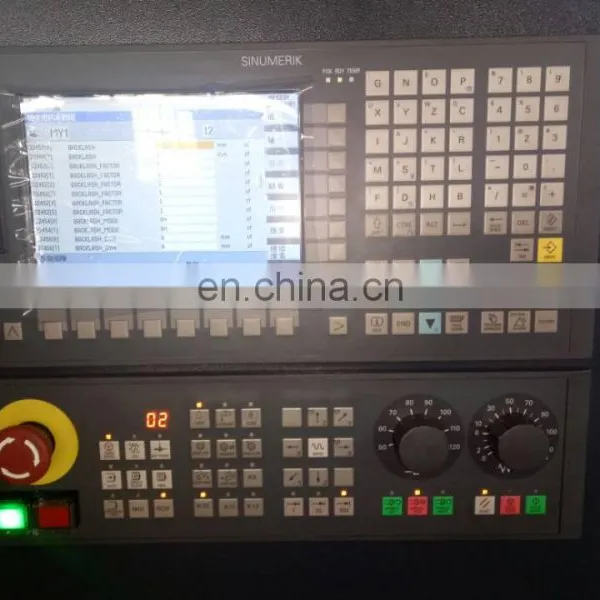

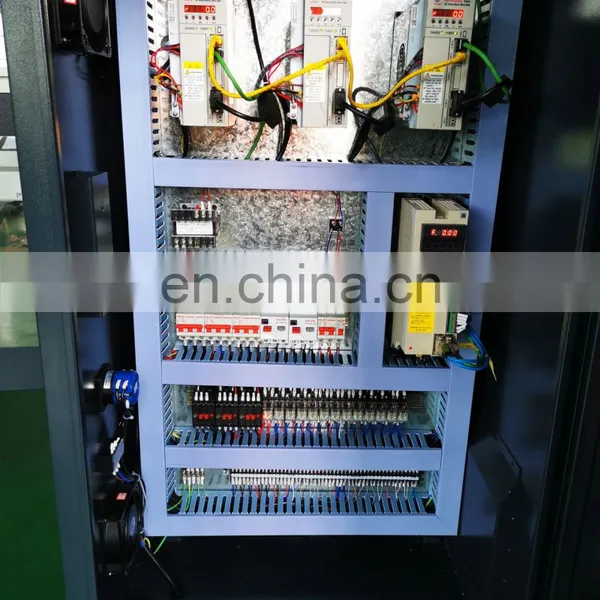

XK7126 Taiwan Spindle Linear Guide CNC Milling Machine With Siemens CNC Controller
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Model XK7132A Siemens or GSK Controller Heavy Duty Vertical CNC MILLING MACHINE With ISO9001NegotiableMOQ: 1 -
XK7125 Vertical CNC Milling Machine Price With CENegotiableMOQ: 1
-
XK7114 Small Size CNC Milling Machine for Metal CuttingNegotiableMOQ: 1
-
XH7122 BT30 Linear Guide 3 Axis Small CNC Milling Machine With CENegotiableMOQ: 1
-
WMTCNC 3 Axis Precision Small Milling XH7122 Metal Mini Cnc Milling Machine With CENegotiableMOQ: 1
Product Application
The machine can be used in factory and workshop to make molds.
Specification |
XK7126 |
Worktable size(LxW) |
800x260mm |
T-slot (NxWx D) |
3/14/80mm |
X axis travel |
450mm |
Y axis travel |
320mm |
Z axis travel |
450mm |
Distance from spindle nose to worktable surface |
90-470mm |
Distance from spindle center to column |
360mm |
Rapid feed speed(X/Y/Z) |
15/15/15 m/min |
Spindle taper |
BT40 |
Spindle speed range |
20-6000rpm |
Main motor power |
3.7kw |
AC servo motor torque(X/Y/Z) |
6/6/7.7N.m |
Over size(LxWxH) |
2100x1800x1960mm |
Net weight |
2400kgs |
Main Features
XK7126 Small size vertical CNC milling machine with CE certificate
CNC milling machine price include the following:
BT40 spindle
Function:drilling , tapping, chamfering, bearing, milling face thread, handle and tower
Aesthetic and elegant modeling.
High efficiency for automatic knife changing.
The spindle frame is used in the lathe pedestal to increase its stability and stiffness.
