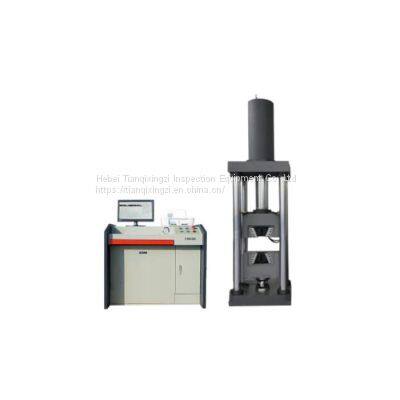

HYE - 2000 type microcomputer electro-hydraulic servo pressure testing machine is driven by the hydraulic power source, the electro-hydraulic servo control technology, computer data collection and processing, can realize the closed loop control and automatic detection of high-precision materials testing equipment, its by the test host, oil source (hydraulic power source), measurement and control system, test instruments of four parts, the largest 2000 kn test force, The accuracy grade of the testing machine is better than 1 level.
HYE - 2000 type microcomputer electro-hydraulic servo pressure test function shall be carried out in accordance with the corresponding national standard loading rate set and meet the standard load rate control index of cement, concrete and other material rated experiment was carried out under the force of compressive strength, bending test, load, time and test curve of dynamic display and control function and the biggest test the force function in a timely manner.
The testing machine is the main engine oil source split structure; It is suitable FOR THE compression test of cement and concrete, and can meet the split tensile test, flexural test and static elastic modulus test of concrete with appropriate fixture and measuring device.
The testing machine and accessories comply with GB/T2611, GB/T17671, GB/T16826, GB/T50081 standard requirements.
Product Characteristics
testing machine host
The main machine for the four column space structure, the main body by the base, cylinder, pressure sensor, pressure plate, lead screw, light bar, worm gear and worm drive assembly, lifting motor, beam, etc., the machine rigidity is good, the test process is stable, easy to operate.
The electric screw rotates to adjust the compression space, easy to operate.
The design of the testing machine is beautiful, convenient and safe. For example, the high toughness protective net is configured above the platform to form an isolation between the test space and the operator, which can effectively ensure the safety of the operator. The surface of the bar is chrome-plated and polished, beautiful and rust-proof.
Test engine oil source cabinet
The integrated oil source cabinet is composed of hydraulic pump station, oil source control, measurement and control system, computer and so on. The built-in axial plunger oil pump has stable output, low noise, high integration degree of oil source cabinet, small footprint, and convenient operation and observation.
The whole oil source system adopts servo closed-loop control, equipped with digital valve, Siemens motor with stable torque and speed, high precision valve plate set and other components, fast response, high sensitivity; The system monitors load, stress and other parameters in real time, with tracking, following, adjustable and other functional characteristics, can realize automatic and accurate control.
Measurement and control system
The measuring and controlling system includes digital valve, high-precision sensor, controller and software, with high control accuracy and good reliability. Meet GB, ISO, ASTM standards for cement, mortar, concrete and other materials test requirements, and has the following functions: with force closed-loop control function; It can realize equal load rate loading or equal stress rate loading. Using microcomputer to realize electronic measurement, automatic completion of the test; The computer automatically calculates the results and prints the report; Supports serial port or Ethernet communication and provides a data interface for networking.
Technical parameters of the product
Maximum test force: 2000kN;
Test machine level; Grade 1;
The relative error of the test force is within ±1%;
<2>
'
'""
