Automatic Hydraulic Cutting Machine With Conveyor Belt Feeding System

Automatic Hydraulic Cutting Machine With Conveyor Belt Feeding System photo-1

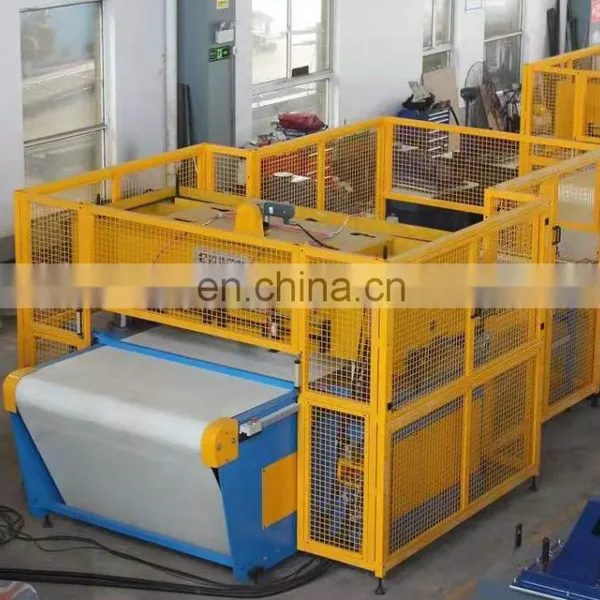

Automatic Hydraulic Cutting Machine With Conveyor Belt Feeding System photo-2

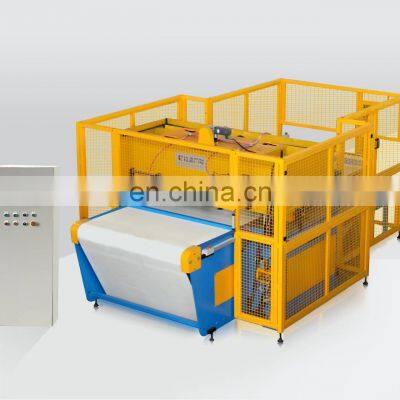

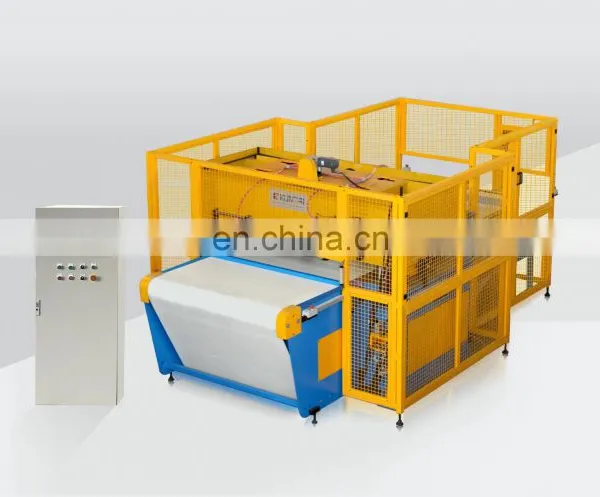

Automatic Hydraulic Cutting Machine With Conveyor Belt Feeding System photo-3

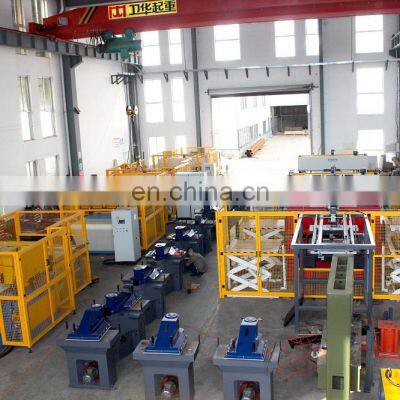

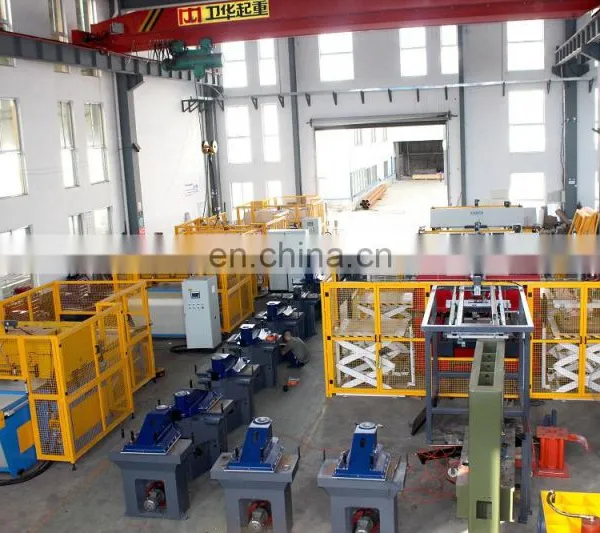

Automatic Hydraulic Cutting Machine With Conveyor Belt Feeding System photo-4

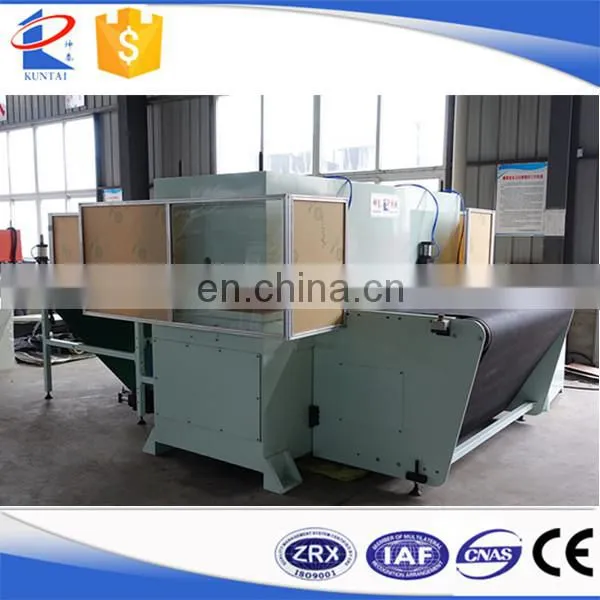

Automatic Hydraulic Cutting Machine With Conveyor Belt Feeding System photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2016
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Automatic Hydraulic Cutting machine with Conveyor Belt feeding system



Product Description



Usage and characteristics

1. Hydraulic 4-Column Die Cutting Press with Conveyor Belt is applicable to continuous and large-batch cutting of nonmetal materials such as leather, carpet, rubber and cloth etc. in large-scale factories by die cutter.

2. Use PLC computer touch screen to control procedures, servo motor driver conveying system, insure feeding accurate range, with stable running speed

3. The main machine is controlled by four-column guiding, double-crank balancing, four-column blocking fine-adjustment mechanism and hydraulic control system, which can guarantee the speed and accuracy of die cutting machine.

4. All movable connecting parts are equipped with central oil supply automatic lubricating device, which  can raise abrasive resisitance

5. The input and output of materials are conveyed on the conveying belt, and the die cutting of materials is also automatically completed on the conveying belt.

6.The inlet and outlet of cutting area of the machine are installed with safety screens, which can guarantee personal safety of operators.

7. The die cutter is fastened by pneumatic clamp device to make the replacement of die cutter easily.

8. Products of special specifications can be customized.

 Main Technical Data(Customizable)



Model
XCLP4
Maximum cutting force
60T
100T
Cutting area
1250*800mm 1250/1600*1200mm
Motor power
5.5KW
11KW
Tension Distance 25-135mm 25-135mm
Machine weight
7500kg
10500kg



 Machine Details:

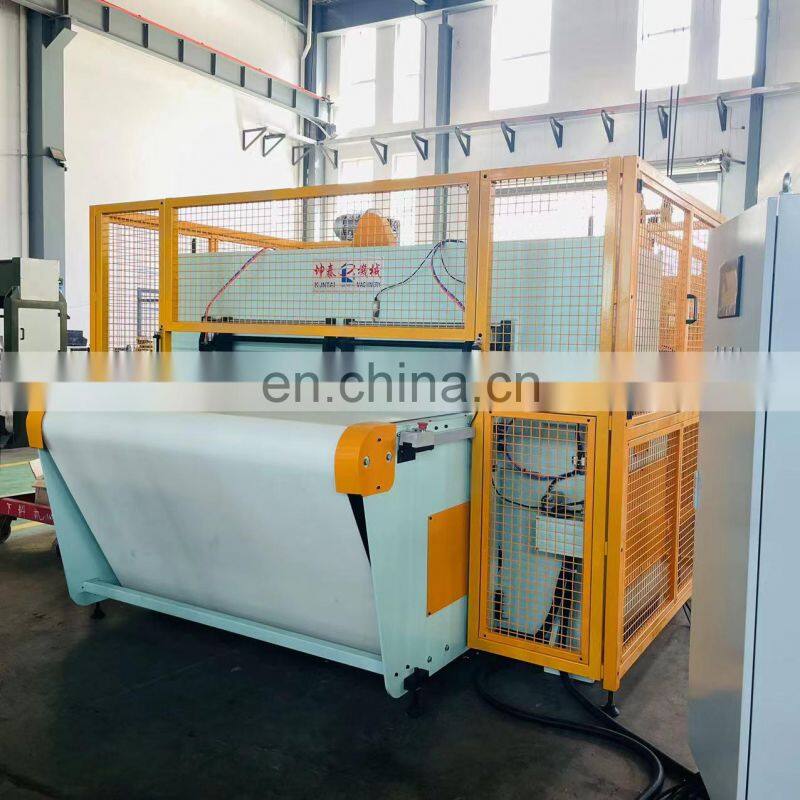

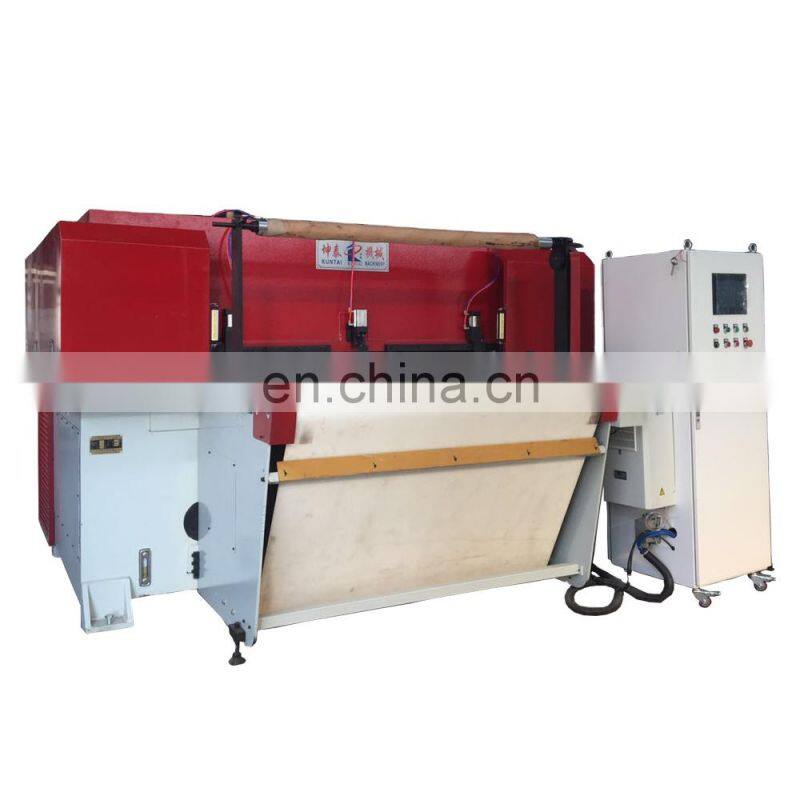

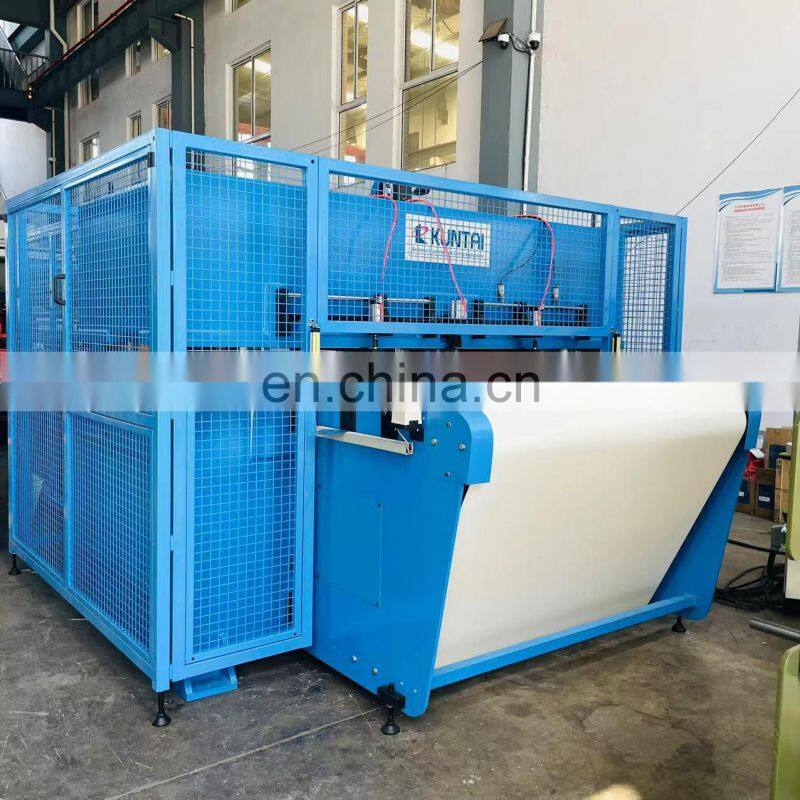

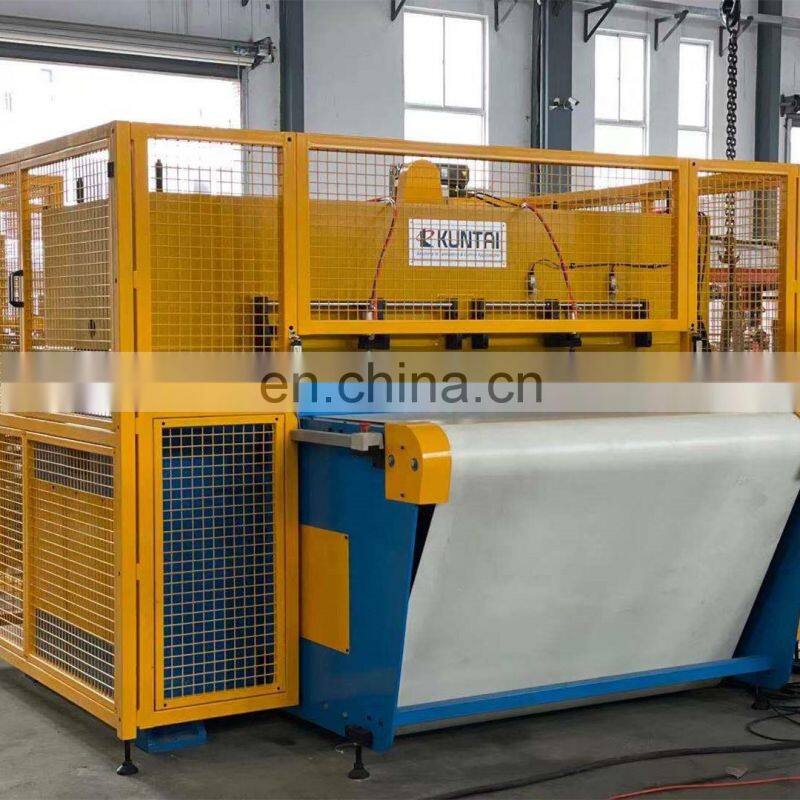

 Automatic Hydraulic Cutting machine with Conveyor Belt feeding systemAutomatic Hydraulic Cutting machine with Conveyor Belt feeding systemAutomatic Hydraulic Cutting machine with Conveyor Belt feeding systemAutomatic Hydraulic Cutting machine with Conveyor Belt feeding systemAutomatic Hydraulic Cutting machine with Conveyor Belt feeding system

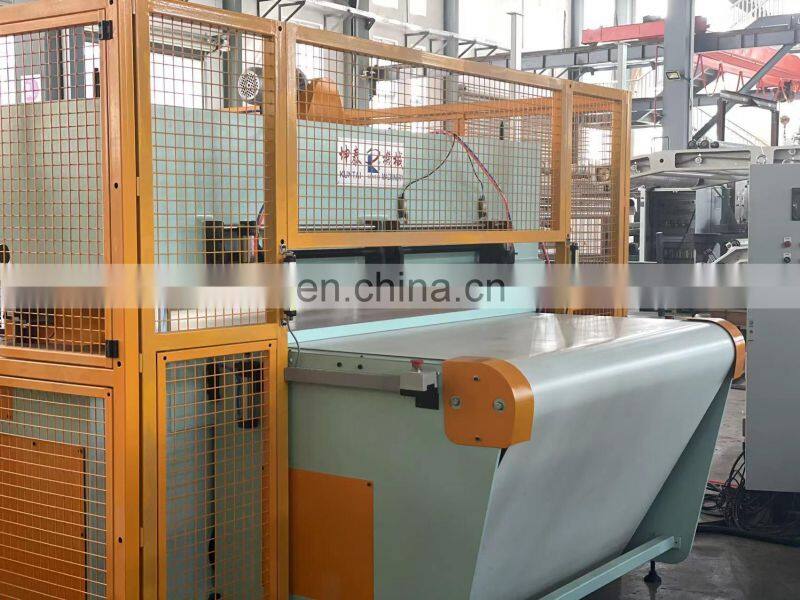

 Automatic Hydraulic Cutting machine with Conveyor Belt feeding system





FAQ



1. Are you a trading company or a manufacturer?

 We are a manufacturer with strong export capability.



2. Where is your factory?

We are in Yancheng city, three and a half hours' drive away from Shanghai, China.



3. Do you have individual research and development department?

Yes, we have. We believes in technology and market oriented research. Every year, we will work out  a number of solutions to actual onsite application problems and develop brand new machines for our customers.

Shoud you have any new ideas about our machines, pls feel free to contact us! We are sure to make your ideas into designs. Our goal is to work together with our customers to solve every onsite problems, to realize better material finishing/processing effect and to be our customers' think tank.



4. How can I trust your quality?

  • We have CE and ISO certificates. They enhance quality control throughout the manufacturing of our machines.
  • We have professional QCs. For each step of our machine production, there will be a team of QCs responsible for the inspection. Until  the item passes all the inspections can it go to the following step.
  • At the end of the machine assembling, a series of testings will be conducted. Unless the machine passes all the testings, we will not make delivery.
  • We guarantee our machines with one-year warranty. Usually, our customers use our machines for 5 years, 8 years and even 10 years.
  • Throughout the lifespan of our machines, the spare parts replacement will be at cost price.

5. How to operate the machine? We have not used such a machine before. We just want to expand our business and start a new line.

Pls do not worry! Almost 50% of our overseas customers were in the same situation when buying first of our machines. We have skillful and experienced follow up service staff who have worked out a whole package of solutions catering to the need of our customers like you. Besides, we have a team of technicians available for overseas machine installing, testing and operation instruction.



Choose us, and we will be there for you in any case and over the clock!
