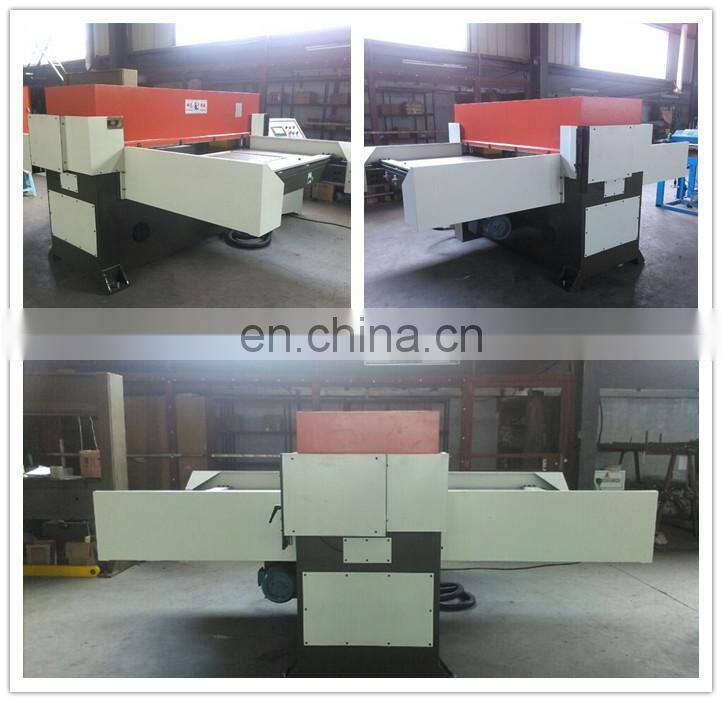

Blister Cutting Machine photo-1

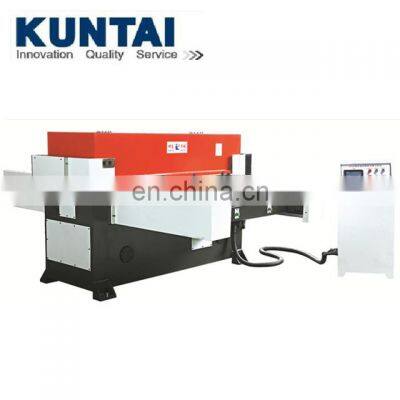

Blister Cutting Machine photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2016
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
XCLP3-B PRECISION HYDRAULIC 4-COLUMN PLANE CUTTING MACHINE
HYDRAULIC DIE CUTTING PRESS
Blister Cutting Machine

Cutting Machine - Product Description

1. Oil is supplied to all sliding parts of this machine by hydraulic system for lubrication, reducing wear and prolonging the service life of the machine.

2. The upper platen may automatically move slowly when it comes down near to the cutting mould so that there will be no dimension difference between the upper surface and the lower surface of the material.
3. Advanced structure design makes oil leakage impossible.
4. External motor and oil pump create good ventilating and cooling conditions for safety operation and prolong machine service life.
5. Setting of the cutting mould is easy and rapid. The cutting is highly precise.
6. Smaller motor power realizes low power consumption.

Technical Parameters:
Model
XCLP3-B
Maximum cutting force 500KN 600KN 800KN 1000KN
Distance between the upper platen
and the working table
50-200mm 50-200mm 50-200mm 50-200mm
Working table dimension 1600*750mm 1600*800mm 1600*900mm 1600*950mm
Motor power 5.5KW 5.5KW 7.5KW 7.5KW
Hydraulic oil quantity 200L 220L 240L 240L
Estimated machine weight 4000kg 5000kg 6000kg 7600kg

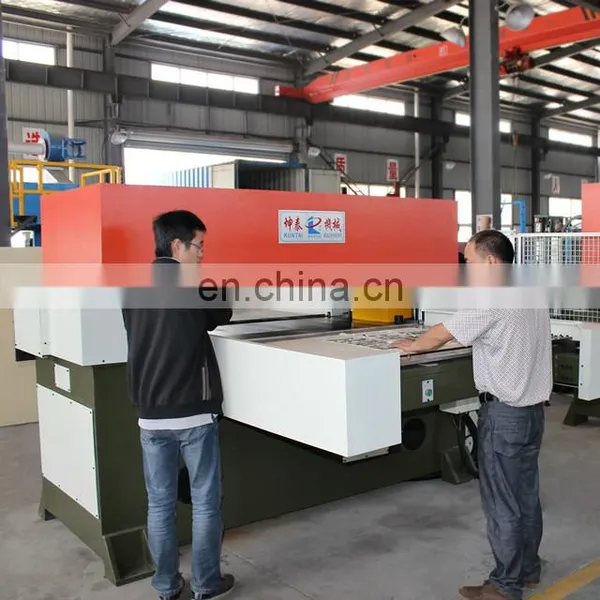

Machine Details Photos:
Blister Cutting Machine
Blister Cutting Machine
 Blister Cutting Machine
Packaging & Shipping

 Inner Package: Protective Film, etc

Outside Package: Plywood Case

  • Machines well packed with protective film and loaded in plywood case or export container;
  • English version operation manual and technical data;
  • One-Year-Period wear parts;
  • Tool kit




Our Services



Blister Cutting Machine

 Blister Cutting MachineBlister Cutting Machine



Company Information



Since 1985, we have been manufacturing various cutting machines for different industries, such as packaging industry, footwear industry, garment industry, etc. Strong engineering power and satisfactory aftersale service consolidates our leading place in both domestic market and overseas market.

Blister Cutting Machine

Blister Cutting Machine

Blister Cutting Machine
