Product Description
XCLL 300 Movable Head Hydraulic Die Cutter for Leather/Rubber/Plastic/Paper-board
Use and characteristics
1.This Movable Head Hydraulic Die Cutter is mainly suitable for cutting one layer or layers of leather, rubber, plastic, paper-board, fabric, chemical fibre,non-woven and other nonmetal rolled materials with a blade of fixed shape.
2. It is widly used in sheet material industry supplies, automotive interior floor mats, seat, packaging material plate leather, carpet, abrasives abrasive paper, football, volleyball, shoemaking class cutting equipment of insole, sole, etc.
3. Gantry frame structure made of profile steel is adopted,with high intensity and without deformation
4. The cutting head can automatically move horizontally, with excellent operating visual field and safe operation.
5. The special design of the hydraulic system, low noise and less oil consumption.
6. Products of special specifications can be customizable.
Main Technical Data (Customizable)
Model | XCLL 300 |
Maximum cutting force (T) | 30 |
Working Table (mm) | 1600*500 |
Travel Head Size (mm) | 500*500 |
Adjustable Stroke (mm) | 5-150 |
Motor Power (kw) | 2.2 |
Machine Dimensions (kw) | 2050*900*2200 |
G.W (kg) | 2050 |

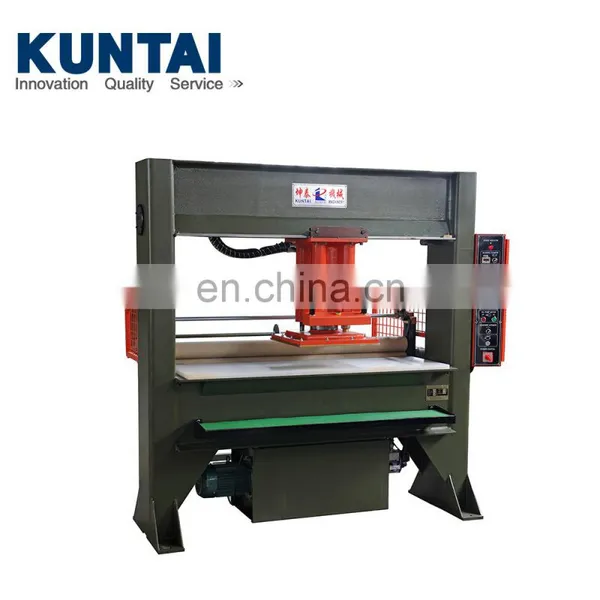

Machine Photo:
Cutting Machine

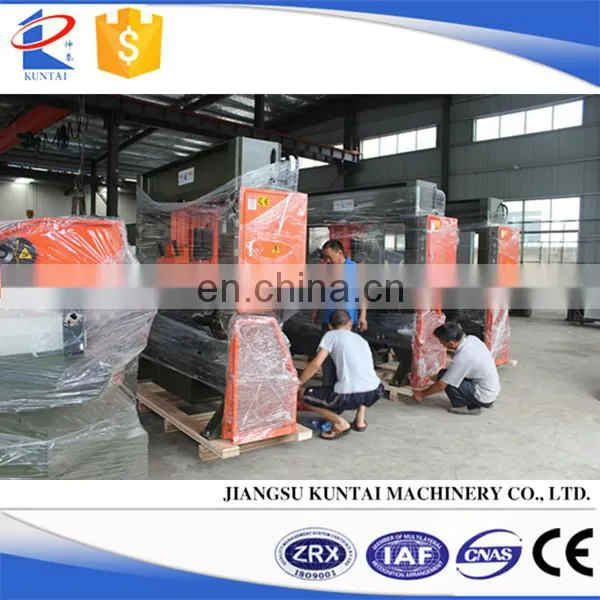

Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
CE & ISO Certificates:
Die Cutting machines of other types or sizes are available on request!
