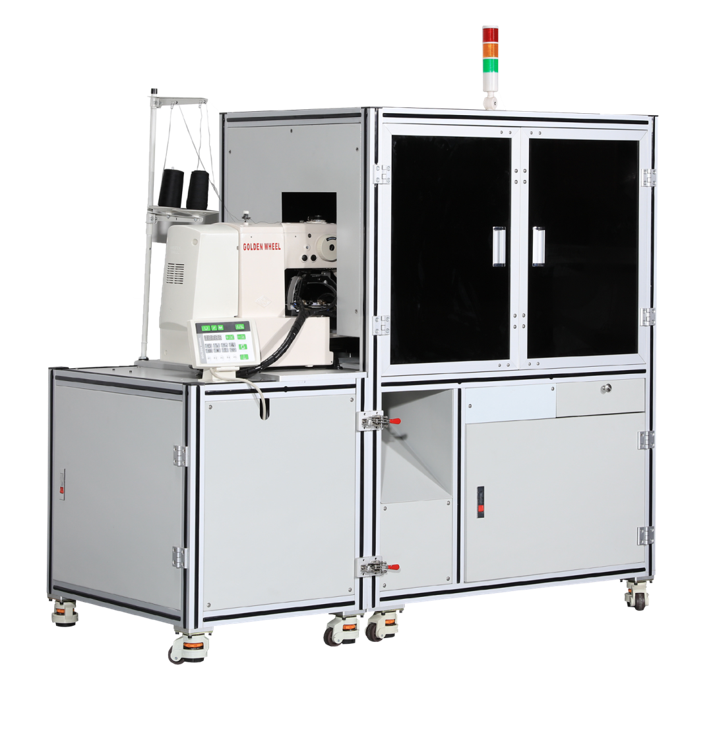

Automatic Ultrasonic Ribbon Folding Tail Tackling

Automatic Ultrasonic Ribbon Folding Tail Tackling

Model：JS-ZJD-U

The machine is suitable for ingredients, backpacks, handbags, shoes and other special purpose

Mainly used for folding tail sewing of backpack webbing

Features
1. The machine is suitable for ingredients, backpacks, handbags, footwear and other special purposes
2. Compared with traditional products, the products sewn by machine are more standard and beautiful,
3. Fully automatic operation, no manual operation, automatic operation process, automatic belt feeding, automatic button feeding, automatic half folding,
4. Ultrasonic automatic cutting, soft incision, beautiful appearance, no scratching, no glue, no loose mouth, low noise, environmental protection and no smoke,
5. The system is equipped with a material shortage alarm, and the number of products can be preset to complete the automatic shutdown of the output. The machine adopts a touch screen man-machine dialogue, and the operation is simple and easy to understand
6. The built-in customization function of the machine is multi-purpose
7. Specifications

Model: JS-TJJ/ZW-UT
Power supply: AC220V
Air pressure: 0.5-0.6 MPa
Cutting: automatic frequency tracking ultrasonic system
Power: 1200W
System: Programmable System
Drive: Servo closed loop system
Cutting angle: straight cut

Sewing: jujube cart

Capacity: For example, the length is 500MM, and the production capacity is 13-18 pieces per minute.

Working width: width 12-33MM length 100-1000MM folded length 10-50MM

Volume: length 1600mm* width 750mm* height 1450mm

Weight: 270KG
