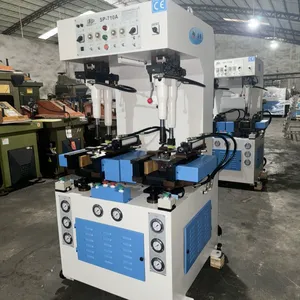

SP-710A refurbished Chengfeng heavy-duty walled sole attaching machine
- 100 Set / Sets per Month
- Shenzhen
- T/T L/C Credit Card Cash
- 7 days
-
CF-737MA refurbished Chengfeng 9-pincer hydraulic toe lasting machine(with hot melt)
-
Collite KL-112 direct drive up and down feeding heavy-duty Gangbao skiving machine with cooling system
-
Collite KL-112 direct drive up and down feeding heavy-duty Gangbao skiving machine with cooling system
-
Fortuna ES50 Leather single scarf edge skiving machine Germany
-
Atom clicking presses VS925L oildynamic die cutting machine 25 tons
-
Fortuna bandknife splitting machine AN400 leathe splitter 400mm
Product Details
Brand Name: | Chengfeng | Place of Origin: | China | Model Number: | SP-710A |
Warranty: | 3 months | Weight: | 1150KG | Dimension(L*W*H): | 1090*1000*1960mm |
Voltage: | 380V | Application: | sport shoes, man shoes, woman shoes and kid shoes | Condition: | Used |
Features: | Suitable for outsole attaching of sports shoes, boots, casual shoes, and kinds of walled shoes. The perfect pressing of outsole, side, toe and heel forming can be accomplished simultaneously or separately. | Power(W): | 22KW |
Product Description
COLLITE | SP-710A
Feature
1. There is a prepared oil-tank to supplement oil when cylinder rising which makes the rising faster and saves the operation time to increae benefit.
2. When the mechanism of front-rear pressing reccedes, a special circuit device is adopted to control the receding stroke, and the proper receding distance is accordingly for locating different sizes of shoes.
3. Independent pressure adjustment. Adjustment handle in the front of machine.
4. There are different types of toe pressing objects for options to meet different toe constructions of cup-sole jogging shoes and tennis shoes and different sizes from kids to adult.
Automatic balancing rods and swing attaching mechanism
Pressure level adopts special design of bias swing, high-and-low adjustment and self-poise of oil linking, which makes shoes convenient in fetching, smooth on surface, free from damage and high in efficiency and good in quality. And it's convenient to put and take out of the last as well.

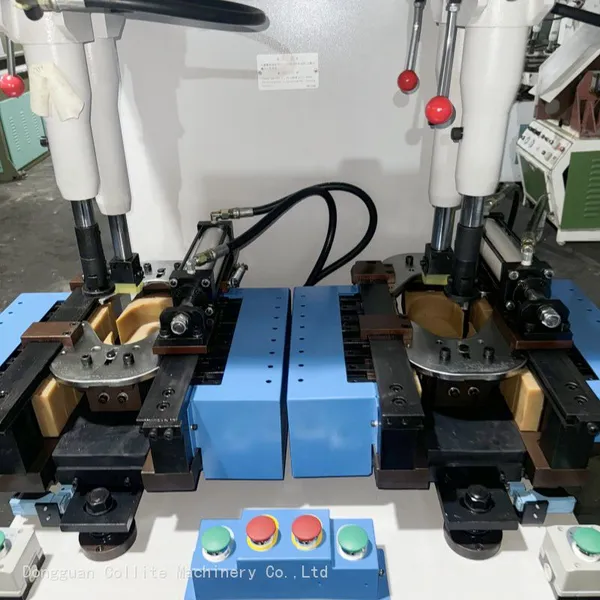

Side attaching mechanism
The side attaching adopts whole hydraulic control. There are 8-22 pce of rubber foaming pressing objects to make a tight pressing according to the shape of shoes. Each foaming pressing object is controlled by an individual cylinder which pressure reaches to 250-300kgs. Two set of these foaming pressing objects each in the front and the rear for options to ensure the best performance of side attaching.
Applicable shoe type range
This machine is available to press shoes with lasts between 130mm and 400mm in length which including the press mold, below 150mm in width, below 200mm in height and walled outsoles below 80-65mm in height, such as jogging shoes, walled sports shoes and casual shoes.
Parameter
Model | SP-710A |
Pcs of lateral latexes | 8 |
Height of lateral latexes(mm) | 80 |
Adjustment of constrction | 2 sections |
Pump motor | 22 KW |
Oil pressure | 50 KG/CM2 |
Productivity | 2000 pairs/8hours |
N.W. | 1150 KG |
G.W. | 1250 KG |
Dimension(W*D*H) | 1090*1000*1960mm |
Packing size(W*D*H) | 1150*1220*2030mm |
