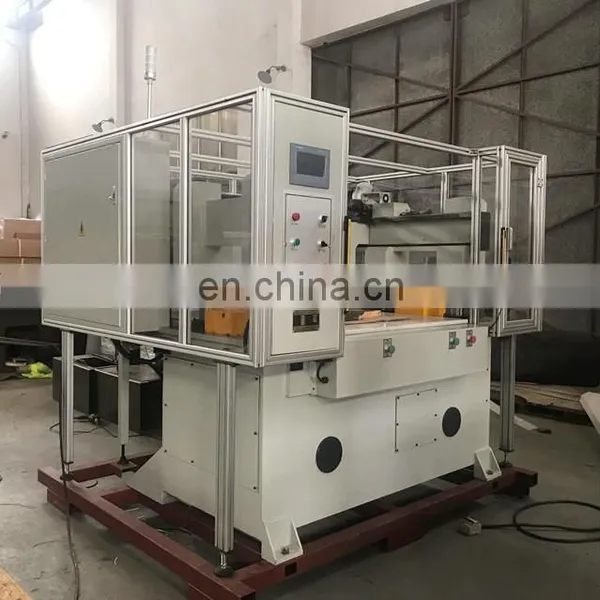

Receding Beam Press
- 1000 per Month
- T/T Credit Card
You May Like
Product Description
Hydraulic Receding Head Carpet Cutting Machine
HighTech Fabric, Foam, Leather Receding Head Beam Cutting Press
Popular shoes beam cutting press
Popular safe bag cutting machine
Die Cutting Press for Carpet and Felt Materials and Slippers
Hydraulic Receding Head Die Cutting Press for Carpet and Shoes Materials
Kuntai cutting machines videos links:
Automatic Cutting Machine with Conveyor Belt https://youtu.be/3T4ibfVZbgc
Double Side Auto Feed Die Cutting Machine for Packaging and Car Trim Materials
https://youtu.be/y5DwYZcjb9A
Rotating Travel Head Hydraulic Cutting Machine https://youtu.be/X7WvvZkXGzg
Travel Head Die Cutting Machine with Conveyor Belt and Dust Collector https://youtu.be/OGOthrLxo7c
Swing arm die cutting machine for leather shoes, gaskets and EVA https://youtu.be/SQ9-2wfPJKs
Hydraulic Automatic Cutting Machine with Conveyor Belt for Car Trim https://youtu.be/auqAAwy9sN8
Receding Head Cutting Machine for Carpet https://youtu.be/X3uKlKeBFPI
Usage and characteristics
Pressure Setting
With this type of setting, the machine operates on a pressure controlled system, meaning that different height dies can be exchanged without any need to necessarily reset the machine
Stroke End Switch
A stroke end switch allows the beam to travel to the same position each time, so cutting dies of the same height can be interchanged without the need to stop and change the tool height setting
Mechanical Stops
Mechanical stops can be fitted to any machine with cutting power over 50 tons, the four stops can be adjusted to control the depth to which the beam can travel
Model | KTR | |
Maximum cutting force | 50T | 80T |
Cutting area | 1200*850mm | 1600*850mm |
Motor power | 3.0KW | 5.5KW |
| Tension Distance | 25-200mm | 25-200mm |
| Automatic Blocking Adjustable Range | 40mm | 40mm |
Range of Application
This beam cutting press is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:
- Automotive interior
- Abrasives, abrasive paper
- Leather and leathergoods – shoe uppers, wallets, purses, belts
- Clothing – components for hats, ties, collars, shoulder pads
- Cork gaskets and mats
- Foam and sponge
- Footwear components – shoes, insoles, insole socks, uppers, straps
- Rubber – gaskets, seals, washers
- Textiles – sample swatches and pattern books, underwear and outerwear components, hats, ties
- Toys – soft toys, advertising novelties, mini jig-saw puzzles, etc.
Machine Details:
Large Tonnage Receding Beam Die Cutting Machine
Receding Head Die Cutting Machine with Feeding System
Other Types of Die Cutting Machine:
Automatic Conveyor Belt Hydraulic Fabric Cutting Machine
Hydraulic Die Cutting Machine
Shoes beam cutting press
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
Trading Process:
Factory Show:
Production Process:
CE & ISO Certificates:
1. Are you a trading company or a manufacturer?
We are a manufacturer with strong export capability.
2. Where is your factory?
We are in Yancheng city, three and a half hours' drive away from Shanghai, China.
3. Do you have individual research and development department?
Yes, we have. We believes in technology and market oriented research. Every year, we will work out a number of solutions to actual onsite application problems and develop brand new machines for our customers.
Shoud you have any new ideas about our machines, pls feel free to contact us! We are sure to make your ideas into designs. Our goal is to work together with our customers to solve every onsite problems, to realize better material finishing/processing effect and to be our customers' think tank.
4. How can I trust your quality?
- We have CE and ISO certificates. They enhance quality control throughout the manufacturing of our machines.
- We have professional QCs. For each step of our machine production, there will be a team of QCs responsible for the inspection. Until the item passes all the inspections can it go to the following step.
- At the end of the machine assembling, a series of testings will be conducted. Unless the machine passes all the testings, we will not make delivery.
- We guarantee our machines with one-year warranty. Usually, our customers use our machines for 5 years, 8 years and even 10 years.
- Throughout the lifespan of our machines, the spare parts replacement will be at cost price.
5. How to operate the machine? We have not used such a machine before. We just want to expand our business and start a new line.
Pls do not worry! Almost 50% of our overseas customers were in the same situation when buying first of our machines. We have skillful and experienced follow up service staff who have worked out a whole package of solutions catering to the need of our customers like you. Besides, we have a team of technicians available for overseas machine installing, testing and operation instruction.
Choose us, and we will be there for you in any case and over the clock!
