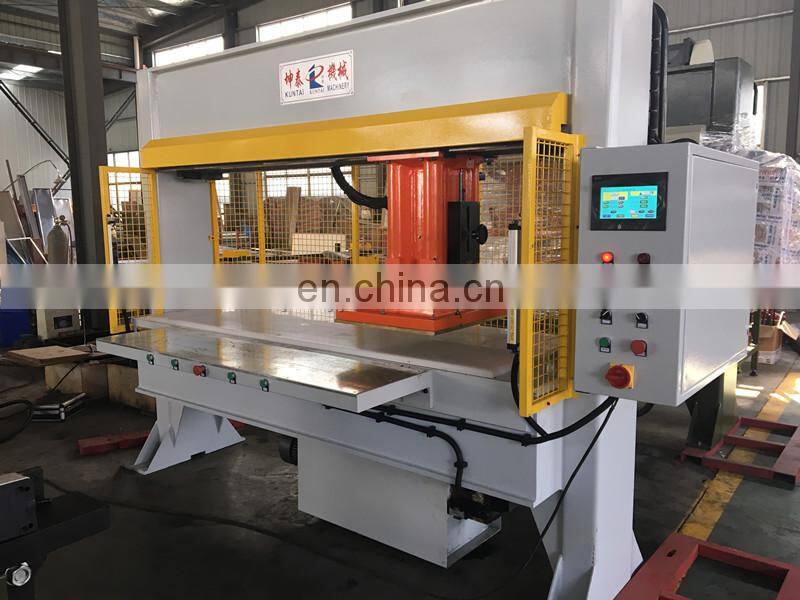

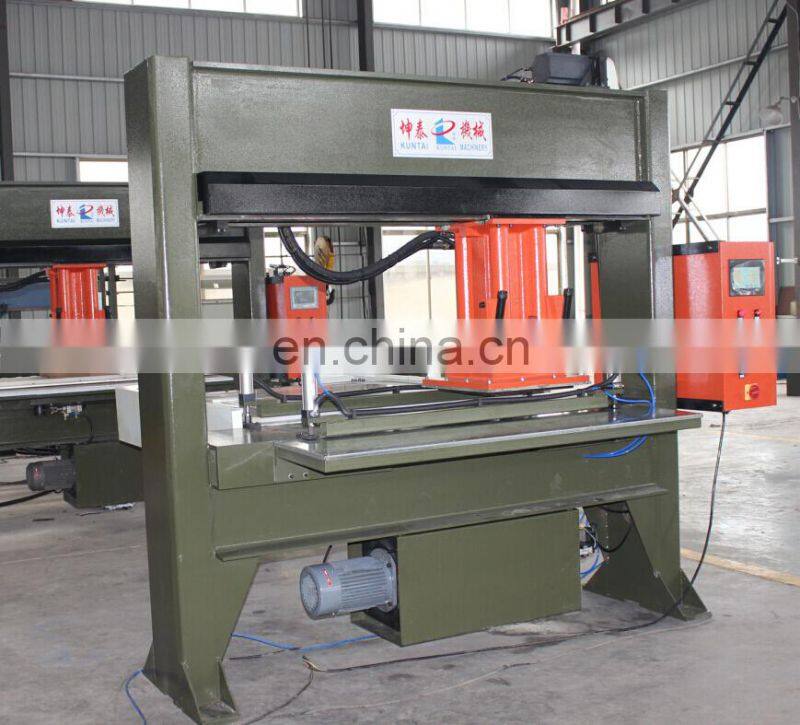

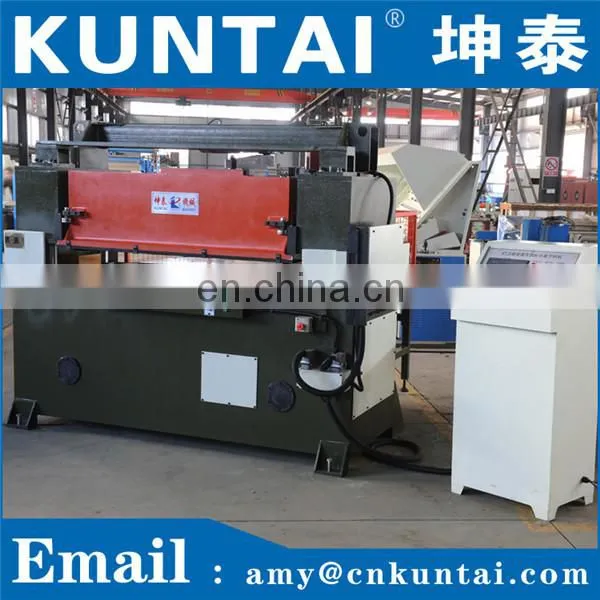

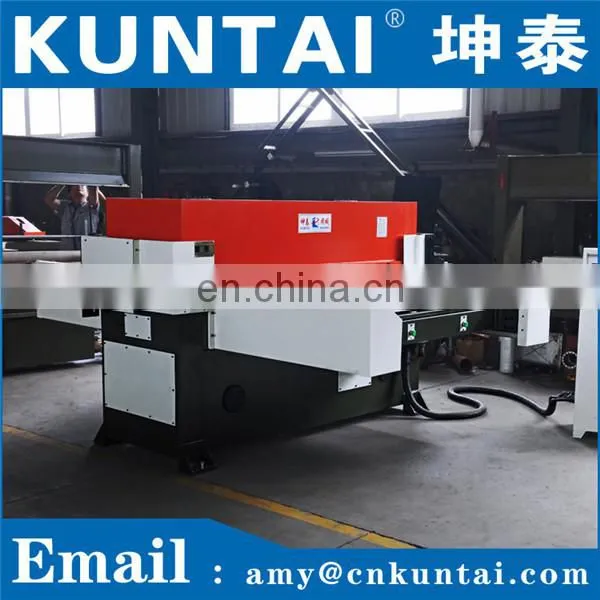

China Automatic Shoe Making Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2016
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
China Automatic Shoe Making Machine
Product Description
Range of Application
This shoe making machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:
- Automotive interior
- Sheet material industry supplies
- Floor mats
- Abrasives, abrasive paper
- Leather and leathergoods – shoe uppers, wallets, purses, belts, shoe industry
- Lampshades – fabric or plastic, with or without cut outs
- Clothing – components for hats, ties, collars, shoulder pads
- Cork gaskets and mats
- Filters for machinery, breathing apparatus and the medical industry
- Foam and sponge – gaskets, packaging, consumer products
- Footwear components – shoes, insoles, insole socks, uppers, straps
- Plastics – PVC binders, lampshades, stationery products, gifts, novelties, gaskets
- Rubber – gaskets, seals, washers
- Textiles – sample swatches and pattern books, underwear and outerwear components, hats, ties
- Toys – soft toys, advertising novelties, mini jig-saw puzzles, etc.
Features of Shoe Making Machine
- Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.
- The cutting head can automatically move horizontally, with excellent operating visual field and safe operation.
- Differential oil way is adopted to allow rapid and convenient cutting, with less noisy.
- The special design of the hydraulic system, the machine is lubricated automatically during operation. This design can reduce abrasion and ensure machine service life.
- The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
- Quiet, vibration free operation.
- Products of special specifications can be customizable.
Option of Shoe Making Machine
- Rotary head
- Machine Color
- Servo Motor
- Roll Holding Gantries
- Cutting area Size
Technical Information(Customizable)-- Shoe Making Machine
| KT-C250 | KT-C250B | KT-C250C | KT-C500 | KT-C500 B | KT-C500C | |
|---|---|---|---|---|---|---|
| Cutting Force | 25 tons | 25 tons | 50 tons | 50 tons |
50 tons
| 50 tons |
| Working Table(mm) | 1600*500 | 1800*500 | 2000*500 | 1600*500 | 1800*500 | 2000*500 |
| Stroke(mm) | 150mm | 150mm | 150mm | 150mm | 150mm | 150mm |
| Travel Head Size(mm) |
500*500 | 500*500 | 500*500 | 500*500 | 500*500 | 500*500 |
| Motor Power | 2.2kw | 2.2kw | 2.2kw | 4.0kw | 4.0kw | 4.0kw |
| Approx. Overall Dimensions (WxDxH) | 2200*720*2000 | 2400*720*2000 | 2600*720*2000 | 2200*720*2000 | 2400*720*2000 | 2600*720*2000 |
| G.W | 1800 kg | 2100 kg | 3000 kg | 3000 kg | 3800 kg | 5000 kg |
Shoe Making Machine Details.
Cutting Die:
Application:
Packaging & Shipping
Packaging & Shipping of Shoe Making Machine:
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Shoe making machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
