Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Automatic Hydraulic Cutting Machine for Insole Board

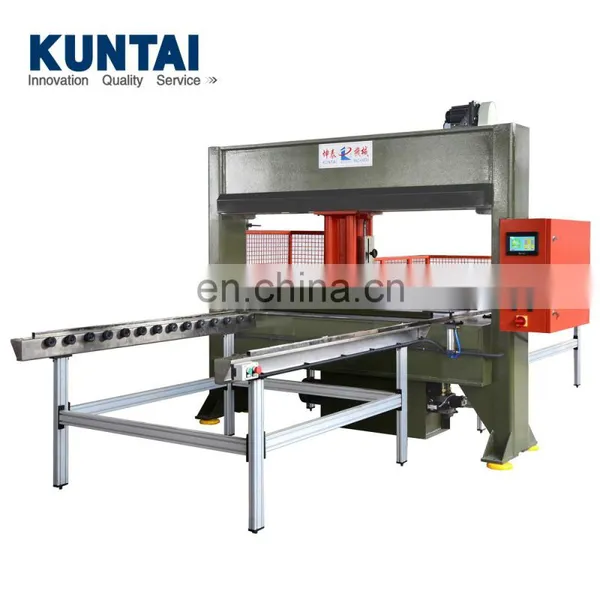

Automatic Hydraulic Cutting Machine for Insole Board

Jiangsu Kuntai Machinery Co., Ltd.

Automatic Hydraulic Cutting Machine for Insole Board thumbnail-2

Automatic Hydraulic Cutting Machine for Insole Board thumbnail-3

Automatic Hydraulic Cutting Machine for Insole Board photo-1

Automatic Hydraulic Cutting Machine for Insole Board photo-2

Automatic Hydraulic Cutting Machine for Insole Board photo-3

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2016

Annual Export Value:

US$10 Million - US$50 Million

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Automatic Hydraulic Cutting Machine for insole board

Features

1.it is mainly suitable for cutting one layer or layers of insole board, leather,rubber,plastic,paper-board,fabric,chemical fibre,non-woven and other nonmetal rolled materials by die cutter.

2.PLC control system and human-machine interface,easy to operate.

3.Gantry frame structure made of profile steel is adopted,with high intensity and without deformation .

4.The cutting head can automatically move horizontally,with excellent operating visual field , safe and reliable operation.

5.The hydraulic system is featured by low noise and low oil consumption .

Multilayers of materials are clamped by the cylinder for stepping feeding.

6.Products of special specifications can be customized.

Main Technical Data(Customizable)

Model	XCLL3-A
Maximum Cutting Force (ton)	25	25	25	50	50	50
Working Table (mm)	1800*500	2000*500	2200*500	1800*550	2000*550	2200*550
Travel Head Size (mm)	500*500	500*500	500*500	550*550	550*550	550*550
Adjustable Stroke (mm)	5-150	5-150	5-150	5-150	5-150	5-150
Motor Power	2.2kw	2.2kw	2.2kw	4.0kw	4.0kw	4.0kw
Estimated Machine Dimension (mm)	22006202000	24006202000	26006202000	22006202000	24006202000	28006202000
Estimated G.W	2300kg	2800kg	3500kg	3500kg	4200kg	5000kg

Machine Details:

Contact Person:

Amy

Tel/whatsapp:+86 18752222317

Wechat: yellowxiaomei

Skype: huangxiaomei123456

Die Cutting machines of other types or sizes are available on request!
