Hydraulic press cutting machine/clicker press
Product Description
Use and Characteristics
- This swing arm hydraulic press machine is applicable to cutting of various nonmetal materials( such as leather, fabric, foam, EVA, rubber gasket, plastic etc) by cutting die.
- Application: it can be used for cutting gasket, shoes, gloves, balls, bags, sand paper, carpet, toys industries etc.
- Safe ,two-hand trip operation, rocker cutting head rotates freely, the best sight in operation, convenience in choosing materials with high efficiency.

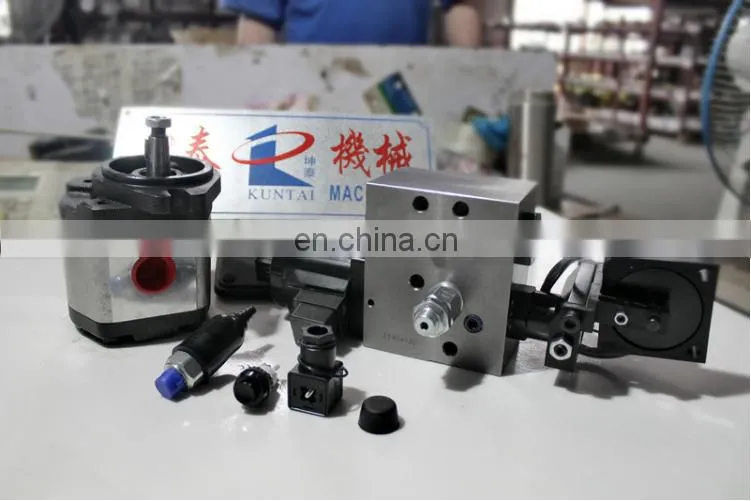

- The oil way system specially designed can conveniently adjust the rocker height. No adjustment is needed after the height of die cutter is changed.
- High speed, low energy consumption, less failure and easy maintenance.
- To meet the need of frequent replacement of die cutters of different sizes, this type of clicking machine that can timely output three kinds of cutting force is available for selection.
- Ductile cast iron body made the cutting machine be used for a very long time with small noise.
- CE certified quality with competitive price in kuntai high quality level.
- Hydraulic Press machine of special specifications can be customized.
Main Technical Data(Customizable)---- Swing Arm Hydraulic Press Machine
Model |
KTA/B-220 |
KTA/B-270 |
Cutting Force |
22T |
27T |
Sway Arm Width |
370mm |
480mm |
Table Area |
900X420mm |
1000X 500mm |
Stroke speed |
0.10m/s |
0.10m/s |
Cutting travel |
90 mm |
90 mm |
main motor power |
1.1kw |
1.5kw |
How to choose a cutting machine:
- Material: Nonmetal material such as leather, fabric, foam, EVA, rubber gasket, etc.
- Cutting area: it depends on the material size.
- Cutting force: it depends on the blade perimeter of the die cutter.
- Feeding system: it depends on the material.

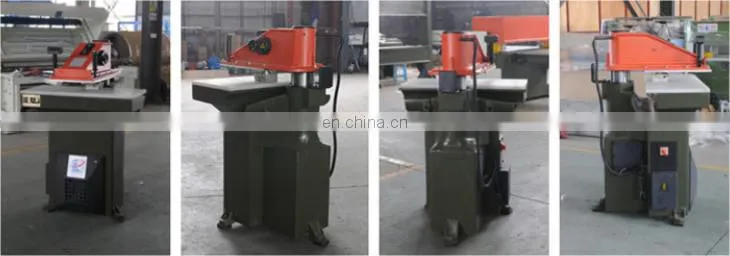

Swing Arm Hydraulic Press Machine Details:
Packaging & Shipping
Packaging & Shipping for Swing Arm Die Cutting Machine:
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
