Hydraulic Swing Arm Die Cutting Press/clicking machine
- 1000 per Month
- T/T Credit Card
- Hydraulic Clicker Presses footwear leather clicker cutting machine
- Hydraulic press cutting machine/clicker press
- pvc plastic card die clicker presses swing arm cutting machine
- Swing arm die cutting press shoe slippers cutting machine
- eva Hydraulic Travel Head Clicking Press Die Cutting Machine for Slippers
- shoe making equipment clicking press die cutting machine
Product Description
Hydraulic Swing Arm Die Cutting Press/clicking machine
Cutting Machine Video:
Swing Arm Hydraulic Press Machine: /watch?v=_izNJB2eVj8
Travel Head hydraulic press Machine: /watch?v=FSo0UGdgnWE
Rotating Head hydraulic press Machine: /watch?v=t2fmads0nOk
Conveyor Belt Type hydraulic press Machine: /watch?v=y9AQdeYoIXs
Double-side Automatic Feeding hydraulic press Machine: /watch?v=wMJfuyOaYnI
Use and Characteristics
- This swing arm hydraulic press machine is applicable to cutting of various nonmetal materials( such as leather, fabric, foam, EVA, rubber gasket, plastic etc) by cutting die.
- Application: it can be used for cutting gasket, shoes, gloves, balls, bags, sand paper, carpet, toys industries etc.
- Safe ,two-hand trip operation, rocker cutting head rotates freely, the best sight in operation, convenience in choosing materials with high efficiency.
- The oil way system specially designed can conveniently adjust the rocker height. No adjustment is needed after the height of die cutter is changed.
- High speed, low energy consumption, less failure and easy maintenance.
- To meet the need of frequent replacement of die cutters of different sizes, this type of clicking machine that can timely output three kinds of cutting force is available for selection.
- Ductile cast iron body made the cutting machine be used for a very long time with small noise.
- CE certified quality with competitive price in kuntai high quality level.
- Hydraulic Press machine of special specifications can be customized.
Main Technical Data(Customizable)---- Swing Arm Hydraulic Press Machine
Model | KTA/B-220 | KTA/B-270 |
Cutting Force | 22T | 27T |
Sway Arm Width | 370mm | 480mm |
Table Area | 900X420mm | 1000X 500mm |
Stroke speed | 0.10m/s | 0.10m/s |
Cutting travel | 90 mm | 90 mm |
main motor power | 1.1kw | 1.5kw |
How to choose a cutting machine:
- Material: Nonmetal material such as leather, fabric, foam, EVA, rubber gasket, etc.
- Cutting area: it depends on the material size.
- Cutting force: it depends on the blade perimeter of the die cutter.
- Feeding system: it depends on the material.

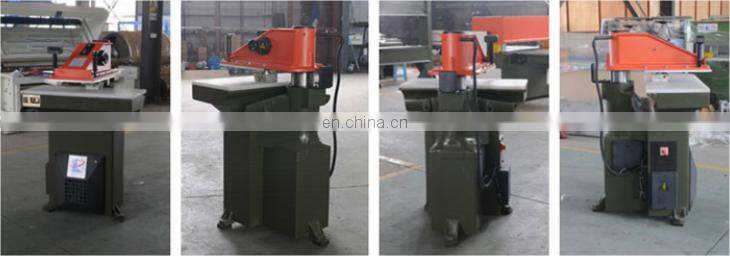

Swing Arm Hydraulic Press Machine Details:
Packaging & Shipping for Swing Arm Die Cutting Machine:
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
