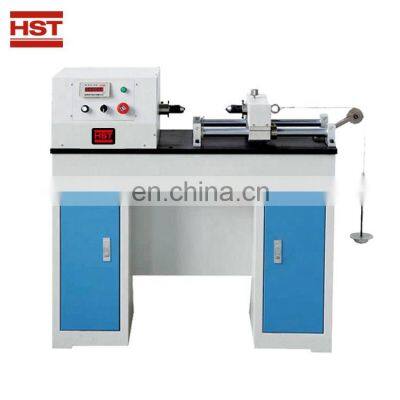

HST Brand new piano wire optical fiber cable torsion testing machine automatic torque tester
| Production Description |
1.Application
Digital display material torsion testing machine is designed for conducting torsion and twist tests on various metal wires, tubes and steel materials. Torque measurement is by torque transducer while angle of twist is measured by photoelectrical coder.Torque range can be adjusted and torque is applied to specimen by servo motor and cycloid speed reducer.
This tester is mainly applied in the research department, all kinds of institutions and industrial and mining enterprises material experiment of various materials used for measuring the mechanical properties by torsion.
2.Technical Parameter:
Model |
NDS-500 |
NDS-1000 |
NDS-2000 |
NDS-3000 |
NDS-5000 |
Max Dynamic Test Torque |
500 N/M |
1000 N/M |
2000 N/M |
3000 N/M |
5000 N/M |
Test Level |
1 Class |
||||
Test Range |
2%-100%FS |
||||
|
Torque Force Value Relative Error |
≤±1% |
||||
Torque Speed Relative Error |
≤±1% |
||||
Force Resolution |
1/50000 |
||||
|
Torque Angle Measuring Relative Errors |
≤±1% |
||||
Torque Angle Resolution(°) |
0.05-999.9°/min |
||||
|
Two Chuck Maximum Distance |
300mm |
550mm |
600mm |
650mm |
|
Dimension (mm) |
1200*390*1169 |
1420*390*1169 |
1470*390*1200 |
1924*690*1512 |
|
Weight (KG) |
340 |
580 |
860 |
2150 |
|
Power Supply |
0.5kW/ AC220V±10% |
1kW/ AC220V±10% |
1.5kW/ AC220V±10% |
5kW/ AC220V±10% |
|
