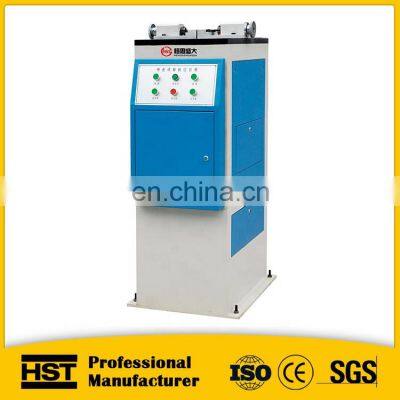

VU-2Y 2/3/5mm Impact Tester Sample Notching Broaching Cutting Milling Machine PriceUS$ 16445.07 - 17494.75MOQ: 1 Set -
Charpy Impact Test Equipment Price/ Charpy Impact Tester/ Charpy Izod Impact TestUS$ 4000 - 6000MOQ: 1 Set
-
ISO179 ISO180 Professional Izod Impact Tester Machine for Plastic TestingNegotiableMOQ: 1
-
Impact Sample UV Notch Profile ProjectorUS$ 700 - 1000MOQ: 1 Set
-
ASTM E23 Standard Scemi-automatic Charpy Impact Testing MachineUS$ 14695.59 - 15395.38MOQ: 1 Set
CST-50 U/V Notch Projector/pendulum impact tester/physical testing machines
Contact me:Sunny mobile:+86-15866777590 Skype:jessica-hssd
1. Application
CST-50 China supplier Charpy Impactg Projection Equipment is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shapes with high accuracy utilizing the optical projection method. It is widely used to check the U and V-shaped notch of the impact specimen with the features of easy operation, simple structure, direct inspection and high effectiveness.
2.Main Technical Parameters
|
Diameter of the Screen |
200mm |
|
Magnification of the instrument |
50X |
|
Objective magnification |
2.5X |
|
Working table square shape |
110x125mm |
|
Diameter of round worktable |
90mm |
|
Diameter of working screen |
70mm |
|
Stroke of working table |
Longitude: ±10mm, Latitude:±10mm, Rise and fall: ±12mm |
|
Eye-field diameter |
3.8mm |
|
Working distance |
22.89mm |
|
Scope of revolving of the worktable |
360° |
|
Power supply |
220V,50HZ,150W |
|
Dimension |
515×224×603mm |
|
Light source(tungsten halogen lamp) |
12V,100W |
|
Weight |
18kg |
3.Configuration
Host----1set
Base adjustment button---4 Pcs
Power line----1Pcs
Halogen tungsten lamp----2Pcs
Flat glass plate ---1Pcs
CST-50 China supplier Charpy projector price
CST-50 China supplier Charpy projector price
4. Related machines:
1,One year guarantee of the whole machine
2, 24 hours techonical support by e-mail
3, calling or door-to-door service
Contact: sunny Whatsapp/Line/Phone: +8615866777590 Skype:jessica-hssd
Send Inquiry to This Supplier
You May Also Like
-
Metal Materials Dynamic Load Impact Testing MachineNegotiableMOQ: 1
-
JBS-300B Charpy Impact Testing Machine for Metal Charpy V Notch TestUS$ 1500 - 3100MOQ: 1 Set
-
XJJ-5 Plastic Charpy Pendulum Impact Testing Machine,Dial Impact TesterUS$ 10496.85MOQ: 1 Set
-

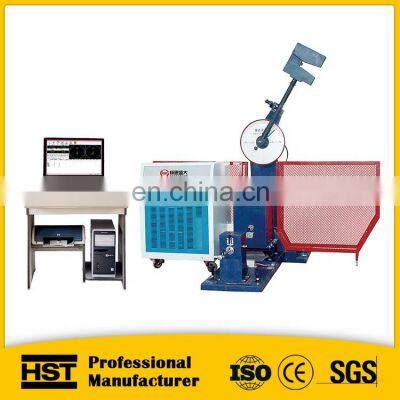

JBDW-300D Computer Control Ultra Low Temperature Automatic Charpy Impact Tester,impact Testing MachineNegotiableMOQ: 1
-
JB-B Semi Automatic Pendulum Charpy Impact Testing Machine/Metal Impact TesterNegotiableMOQ: 1
-

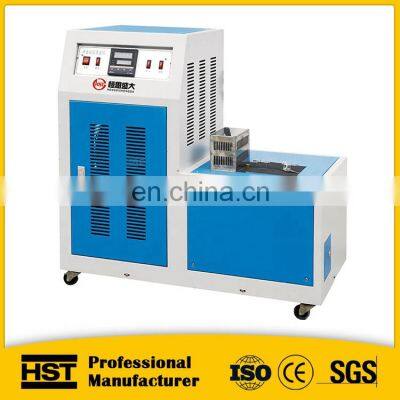

Impact Testing Sample Cooling Chamber/Low Temperature Impact Testing Machine/Low Voltage Freezer ThermostatNegotiableMOQ: 1
-
Pendulum Impact Tester/charpy Impact Test Equipment/izod Impact TestNegotiableMOQ: 1
-
Charpy Metal Izod Charpy Impact Testerimpact Testing MachineNegotiableMOQ: 1
-

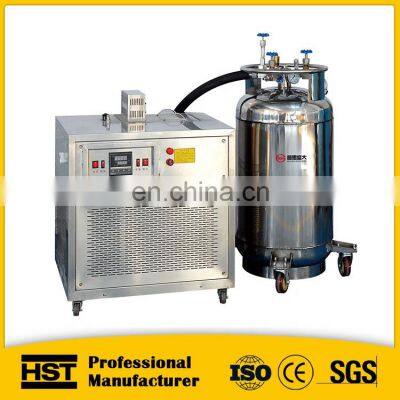

DWC-196 Factory Impact Test Refriger Liquid Nitrogen Low Temperature Testing MachineNegotiableMOQ: 1
-
