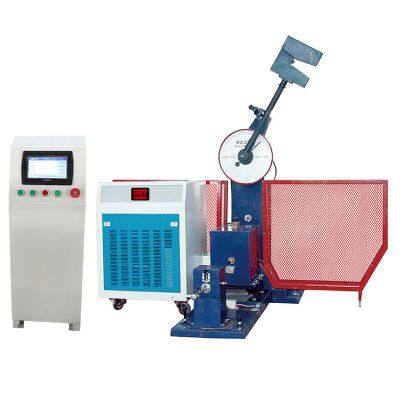

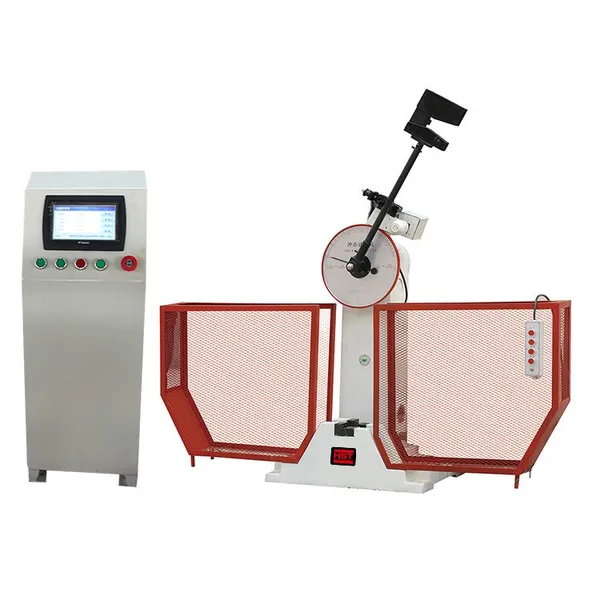

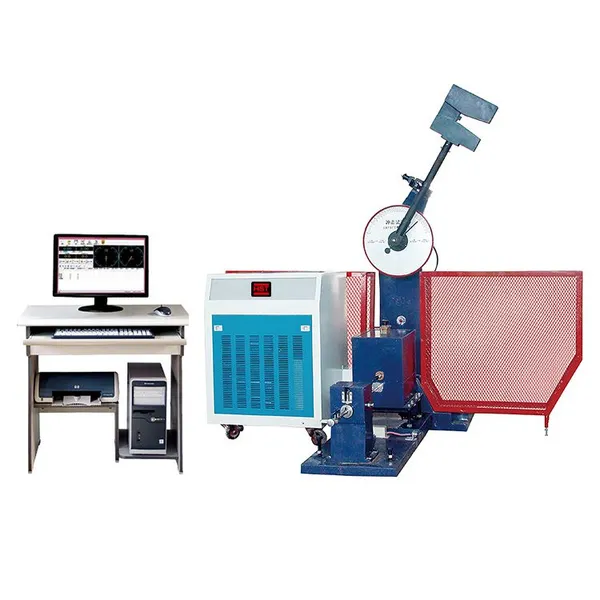

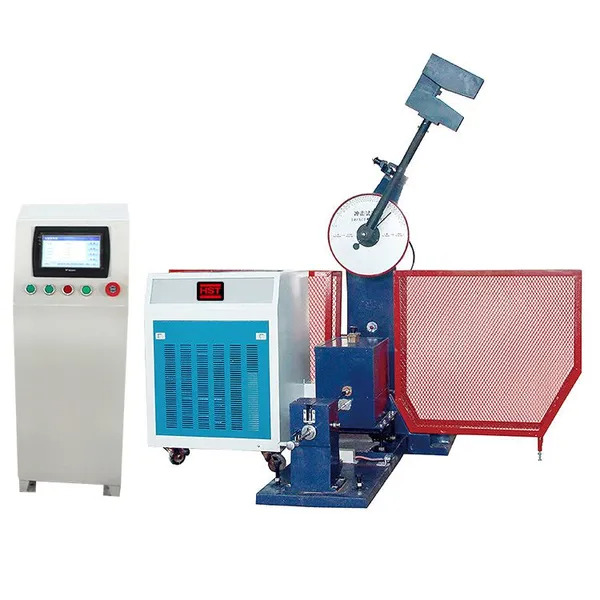

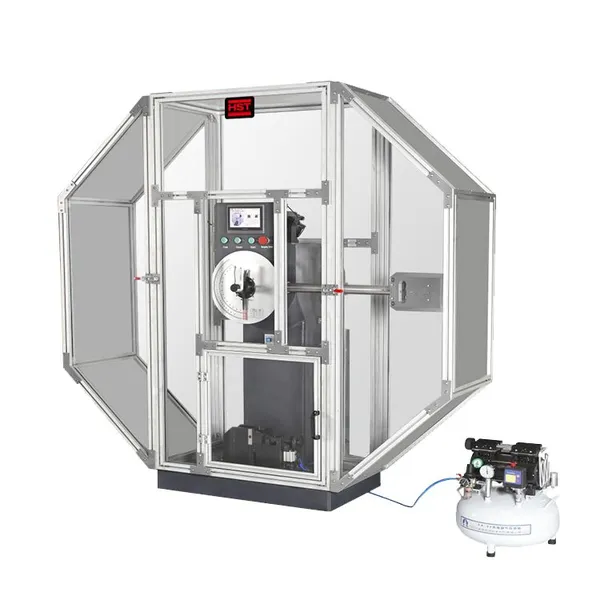

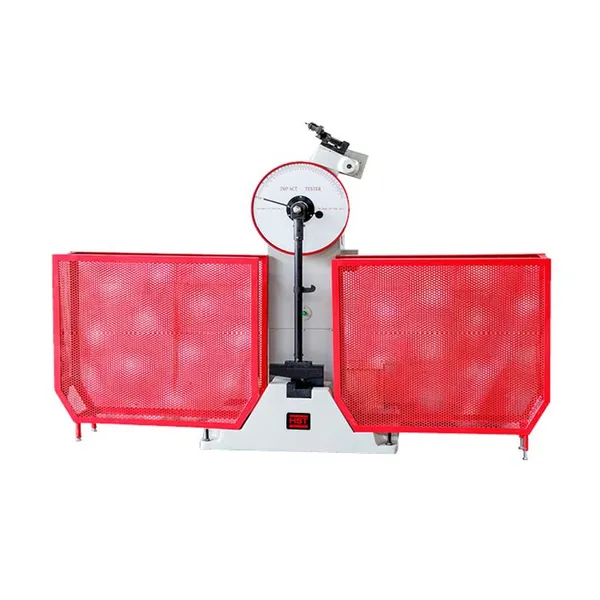

JBS-300B Charpy Impact Testing Machine for metal Charpy V notch test
JBS series LCD touching screen display Pendulum impact tester is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
Main Technical Specifications:
|
Model |
JBS-300 |
JBS-500 |
JBS-800 |
|
impact energy |
150/300J |
250/500J |
500/800J |
|
The distance between the pendulum shaft and impact point |
750mm |
850mm |
800mm |
|
Impact speed |
5.2m/s |
5.4 m/s |
5.9m/s |
|
Pre-rising angle of the pendulum |
150° |
||
|
Specimen bearer span |
40+0.2mm |
||
|
Round angle of the jaw |
R1-1.5mm |
||
|
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
||
|
Angle accuracy |
0.1° |
||
|
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
||
|
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
||
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
