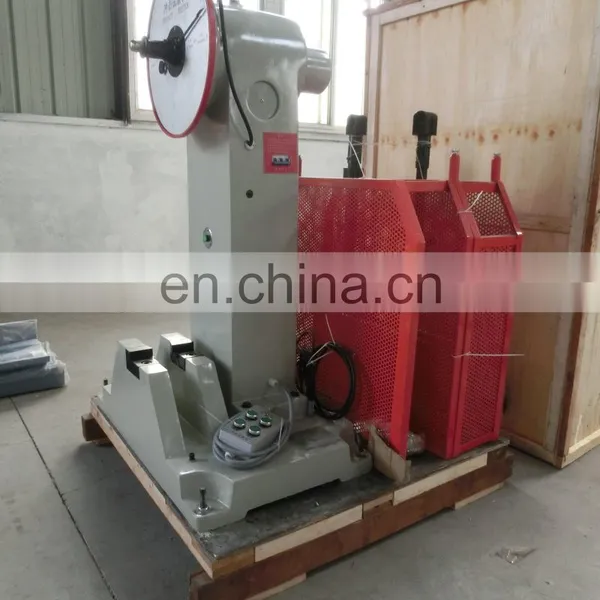

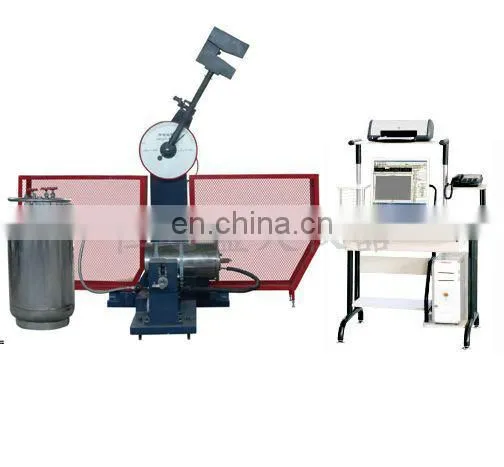

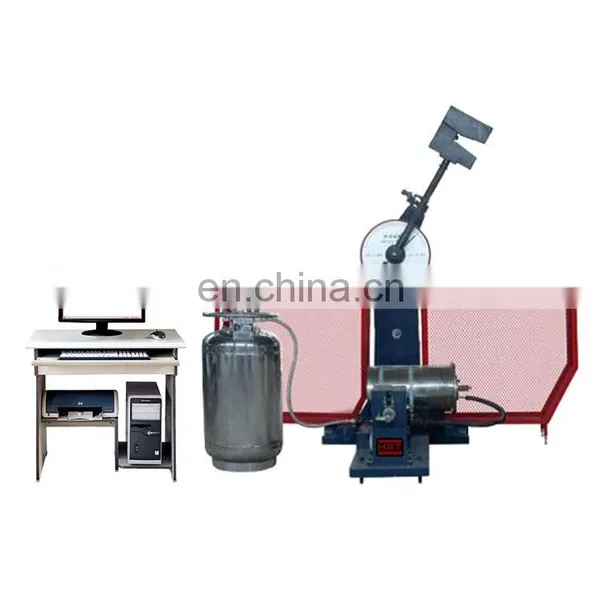

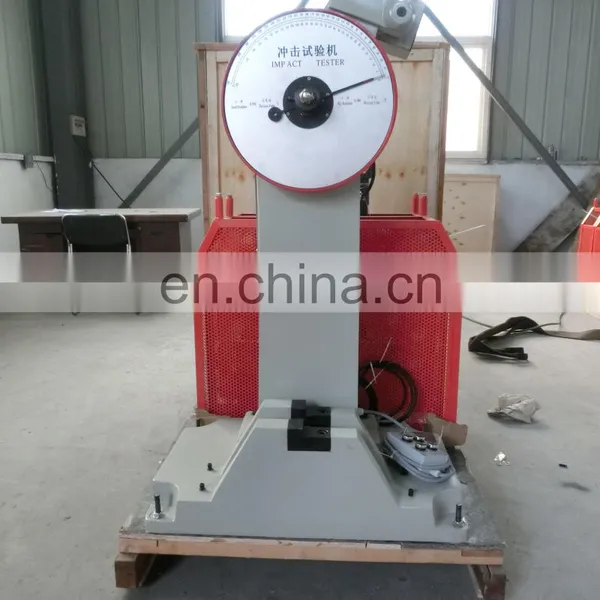

JBDW-D computer control ultralow-temperature automatic impact testing machine
Application:
JBDW-D type impact testing machine is used for measuring the metal material resistance performance
under dynamic load, in order to determine the material properties under dynamic load. It's a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.
2. Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
3. Features:
3.1 Cooling by liquid nitrogen refrigeration
3.2 Which adopts PC computer control, this machine can auto-complete the following actions: rising pendulum, hanging pendulum, sending specimen, positioning, impacting,temperature conditioning
3.3 After impacting the specimen, the machine can raise pendulum with surplus energy automatically so as to be ready for the next test
3.4 PC machine can display material impact absorption power, impact toughness, pendulum raising angle and test average value, and can print the test data and the average value of the test.
Technical Specifications:
Model |
JBDW-300C |
JBDW-500C |
||
impact energy |
150J |
300J |
250J |
500J |
Value of every grid |
2J |
1J |
5J |
2.5J |
|
Moment of pendulum(N.m)
|
160.7695
|
80.3848
|
267.9492
|
133.9746
|
|
The distance between the pendulum shaft and impact point |
750mm |
800mm |
||
Impact speed |
5.2m/s |
5.4 m/s |
||
Pre-rising angle of the pendulum |
150° |
|||
Specimen bearer span |
40+0.2mm |
|||
Round angle of the jaw |
R1-1.5mm |
|||
Round angle of impact edge |
R2-2.5mm,R8±0.05(special order)mm |
|||
Angle accuracy |
0.1° |
|||
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
|||
Thickness of impact knife |
16mm |
|||
Dip angle of supporting surface of supports |
11°
|
|||
Cooling way |
liquid nitrogen refrigeration |
|||
Capacity of sample box |
10 |
|||
Range of low temperature |
room tempeature-196°C |
|||
Precision of controlling temperature |
fluctuation ±1.5°C grades 2°C
|
|||
Speed of sending specimen |
≤2S |
|||
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
|||
Dimensions (mm) |
2200 ×1500×1900 |
2200 ×1500×1900 |
||
Net Weight (kg) |
850 |
950 |
||
