ISO179 ISO180 professional izod impact tester machine for plastic testing
ISO179 ISO180 professional izod impact tester machine for plastic testing
Applications:
XJU-5.5 Dial Display Izod Impact Testing Machine is a pointer dial, electric hammer released.
Scope: hard plastic, fiber reinforced composites, fiberglass, ceramics, asbestos, etc. non-metallic material to impact test.
Standard:
JB/T8762, GB/T1843, ISO180 and so on.
Dial display Plastic Izod Impact Machine specification:
|
Model |
XJU-5.5 |
||
|
Impact Energy |
5.5 J |
||
|
Pendulum Torque (Standard Configuration Is One Pendulum) |
1 J Pendulum PL=0.5155Nm |
2.75 J Pendulum PL=1.4177Nm |
5.5 J Pendulum PL=2.8355Nm |
|
Impact Speed |
3.5m/s |
||
|
Pendulum Angle |
160° |
||
|
Energy Accuracy |
0.01J |
0.025J |
0.05J |
|
Distance Of The Pendulum Center To The Impact Blade |
322mm |
||
|
Distance Of The Impact Blade To The Jaw Upper Plane |
22mm |
||
|
Blade Corner Radius |
R=0.8mm |
||

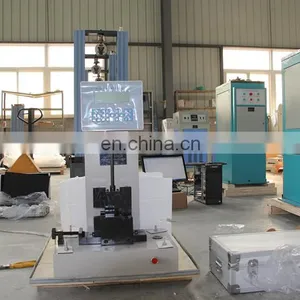

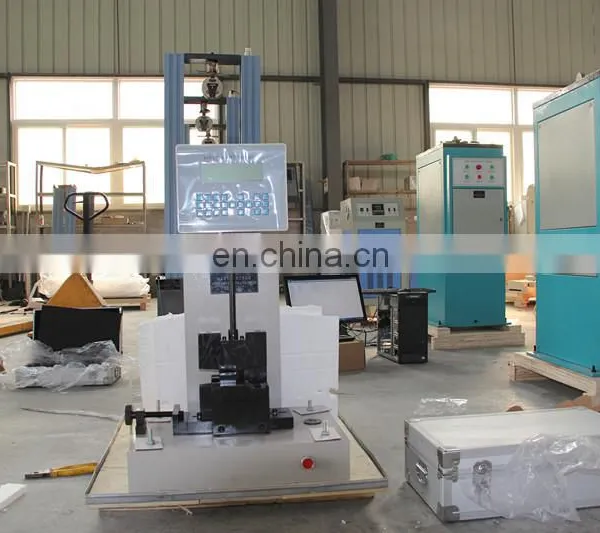

Plastic charpy impact testing machine photos:
Dial display non-metal impact tester:

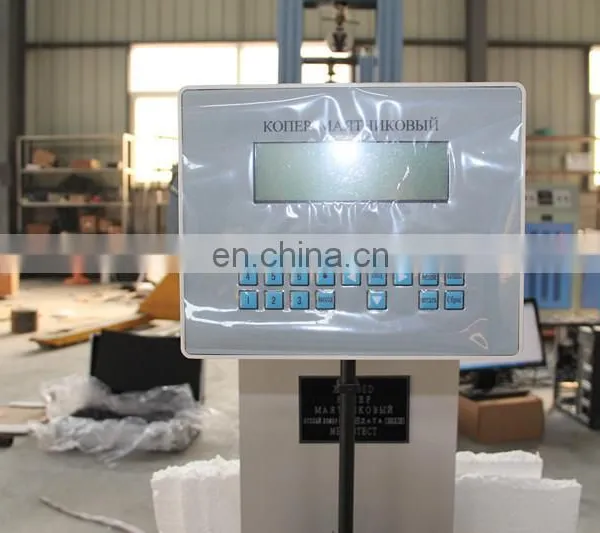

Digital display non-metal impact tester:
Digital English Panel:
CE certificate: Dial display Plastic Izod Impact Machine XJU model
