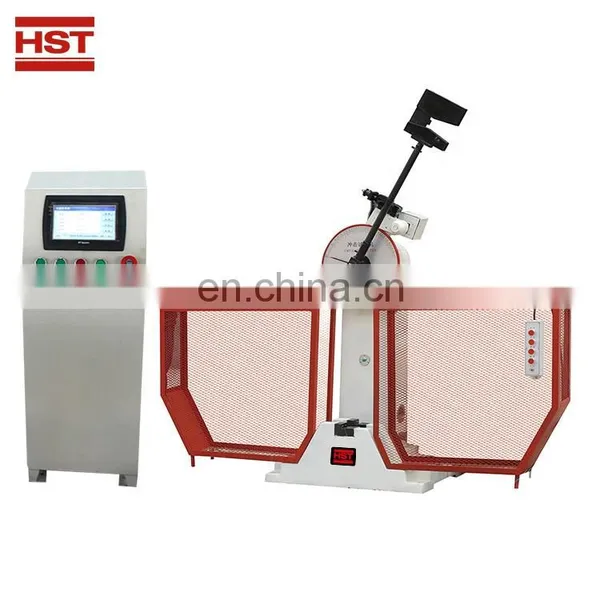

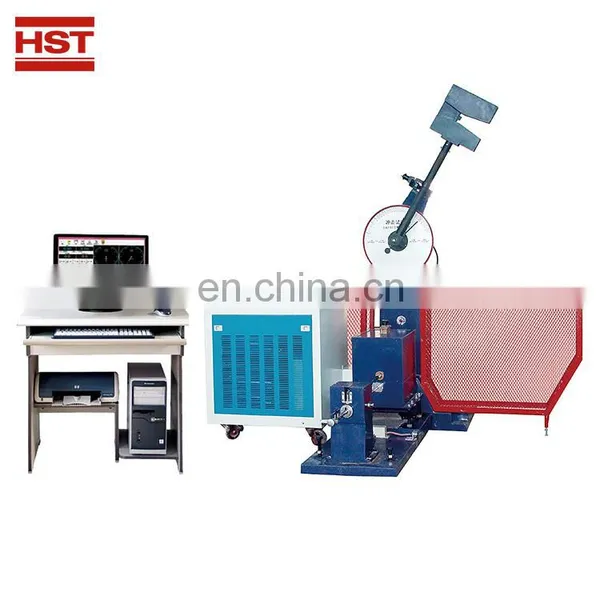

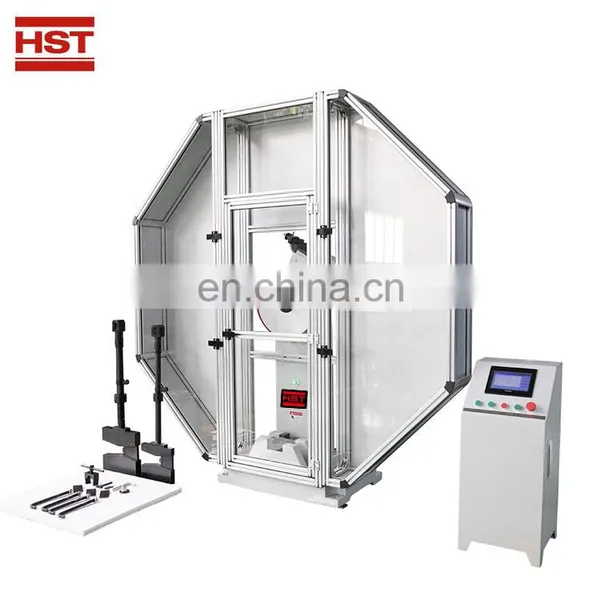

Charpy metal izod charpy impact testing machine/
JB type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.
Main Technical Specifications:
|
Model |
JB-300B |
JB-500B |
JB-800B |
||
|
impact energy |
150/300J |
250/500J |
500/800J |
||
|
The distance between the pendulum shaft and impact point |
750mm |
850mm |
800mm |
||
|
Impact speed |
5.2m/s |
5.4 m/s |
5.9m/s |
||
|
Pre-rising angle of the pendulum |
150° |
||||
|
Specimen bearer span |
40+0.2mm |
||||
|
Round angle of the jaw |
R1-1.5mm |
||||
|
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
||||
|
Angle accuracy |
0.1° |
||||
|
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
||||
|
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
||||
|
Dimensions (mm) |
2124 x 600 x 1340 |
2200 ×650 ×1960 |
2450 x 1200 x 2455 |
||
|
Net Weight (kg) |
450 |
650 |
2300 |
||
