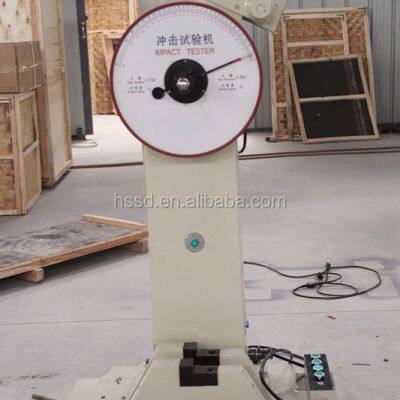

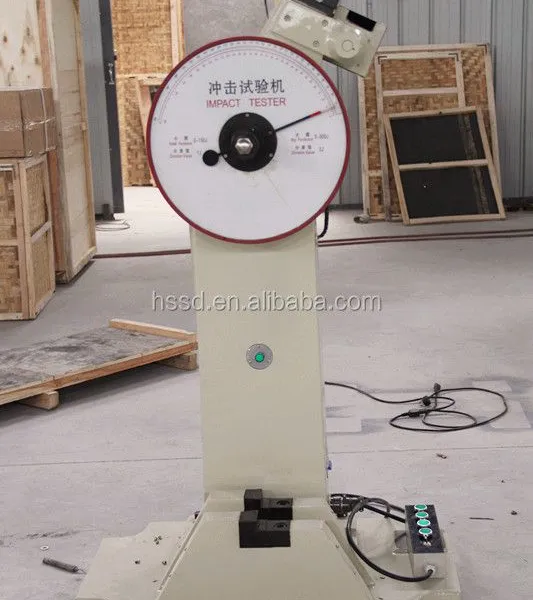

ASTM E23 standard scemi-automatic charpy impact testing machine

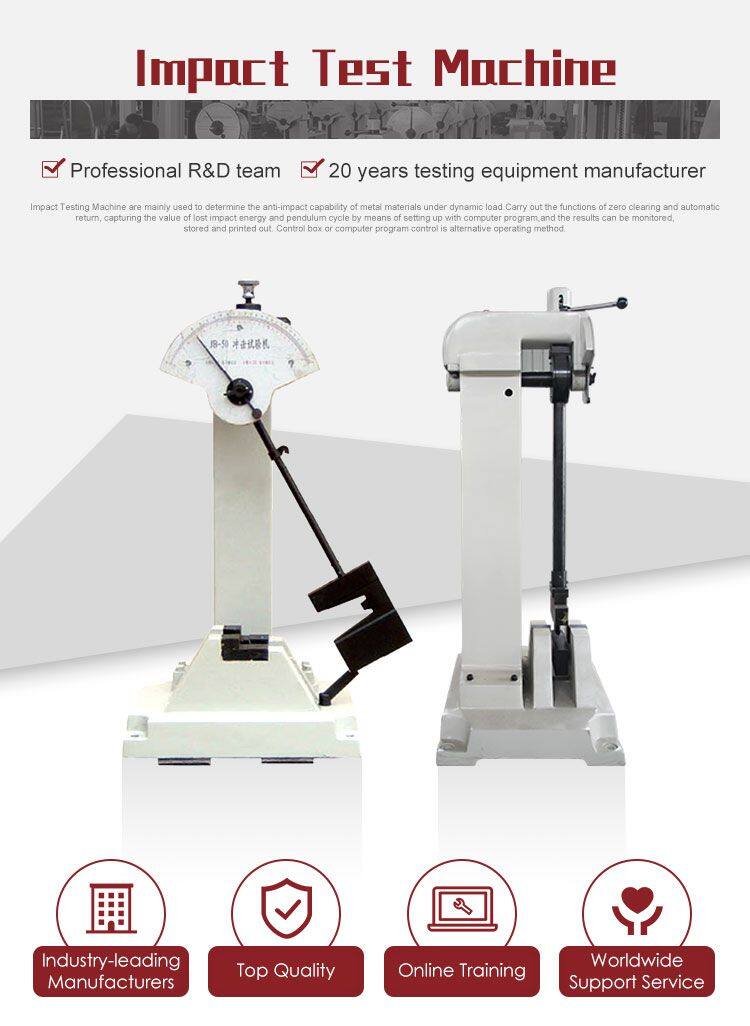

JB type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.

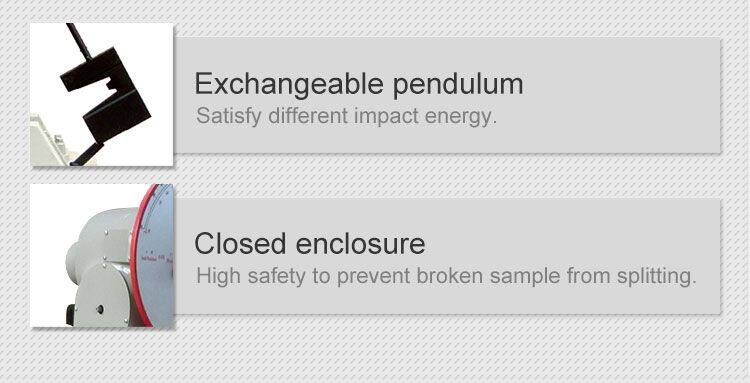

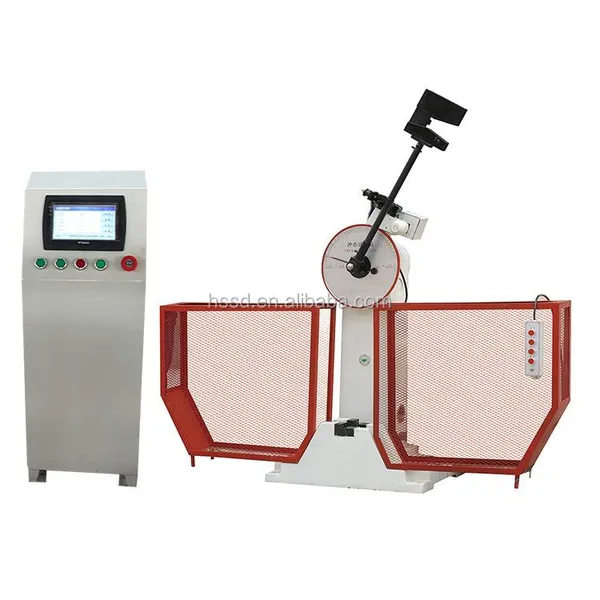

The principle machine of the testing machine has single supporting column structure, cantilever type pendulum hanging mode; the pendulum body is U-shaped. The impact cutter is installed and fixed by screws and is convenient and easy to be replaced. Safety guard pin is arranged on the principle machine which is also provided with safety guard net.

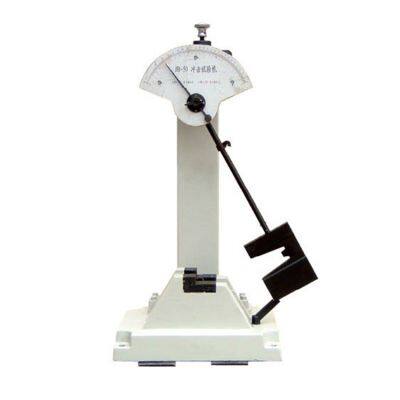

Manual Impact Testing machine JB-300 specification:
|
Model |
JB-300 |
|
Reading of dia |
0 - 150J (1J/grid); 0 - 300J(2J/grid) |
|
impact energy |
150J,300J |
|
The distance between the pendulum shaft and impact point |
750mm |
|
Impact speed |
5.2m/s |
|
Pre-rising angle of the pendulum |
150° |
|
Specimen bearer span |
40+0.2mm |
|
Round angle of the jaw |
R1-1.5mm |
|
Round angle of impact edge |
R2-2.5mm |
|
Angle accuracy |
0.1° |
|
Power supply |
Manual |
|
Standard specimen dimension |
10mm*10mm*55mm |
|
Dimensions (mm) |
1000*630*1520mm |
|
Net Weight (kg) |
320Kg |
Impact Testing Machine Configurations:
1). Main unit----------1 set
2). Pendulum-----2 pcs
3). Span specimen plate (L = 40mm)----1 pc
4). Specimen centering plate (L = 40mm)(U, V)----1 pc
5). Stripping attachment----1 pc
6). Internal hexagonal wrench (S=12mm)---1 pc
7). Anchor bolts (M16x300mm)---4 pcs

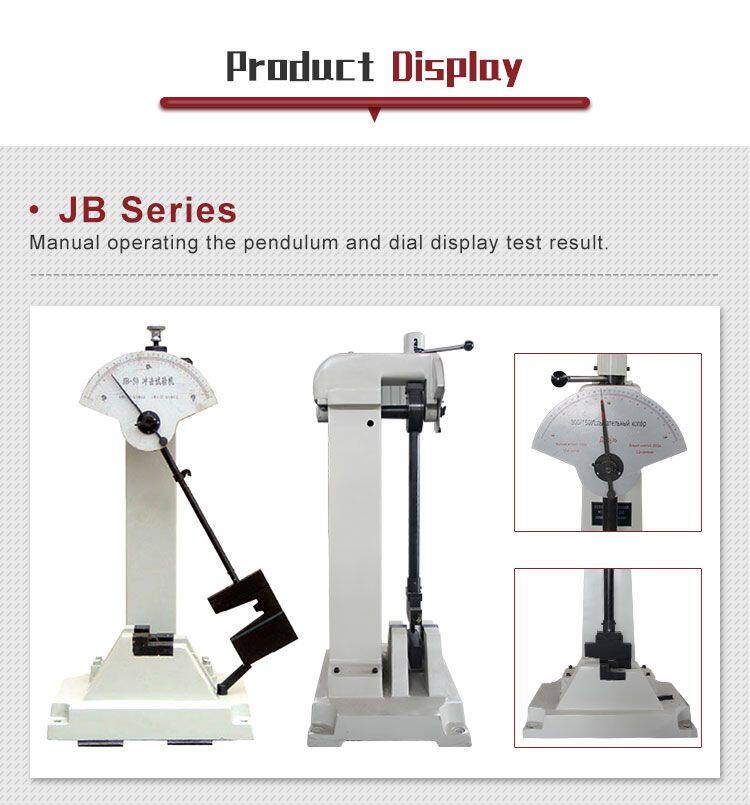

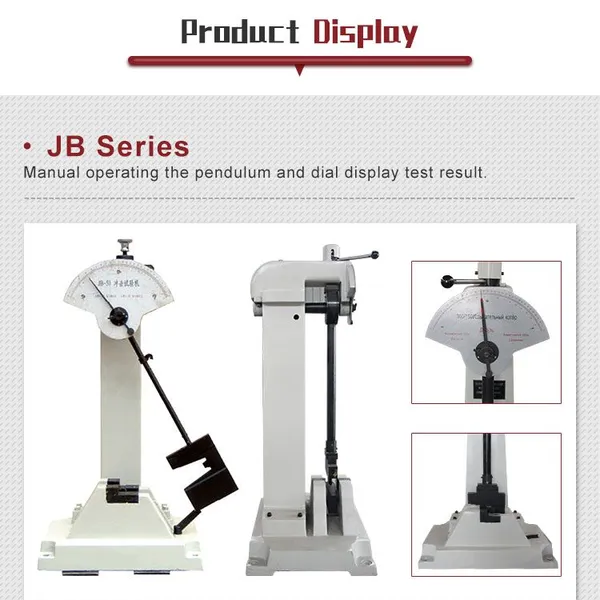

JB series Impact Testing Machine :

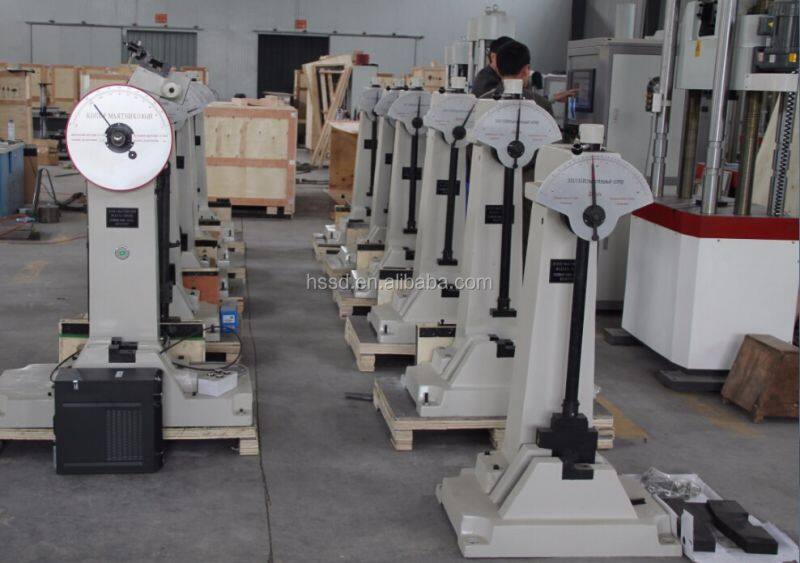

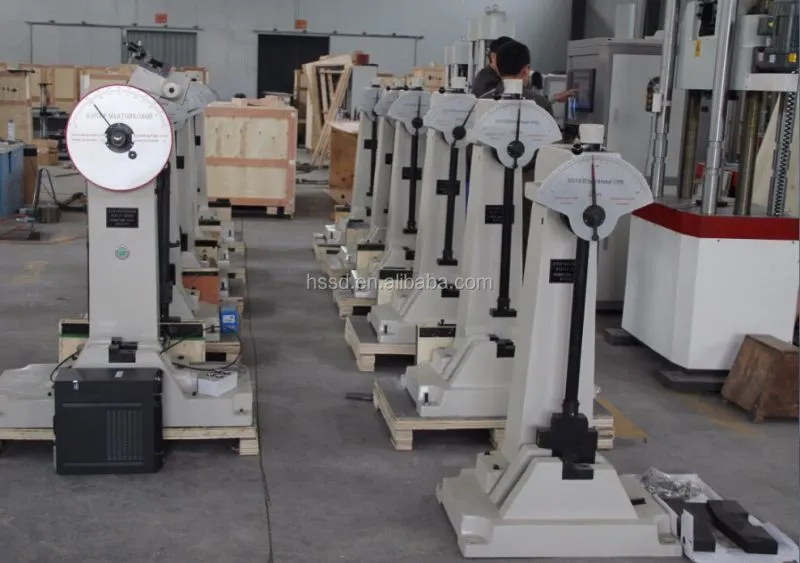

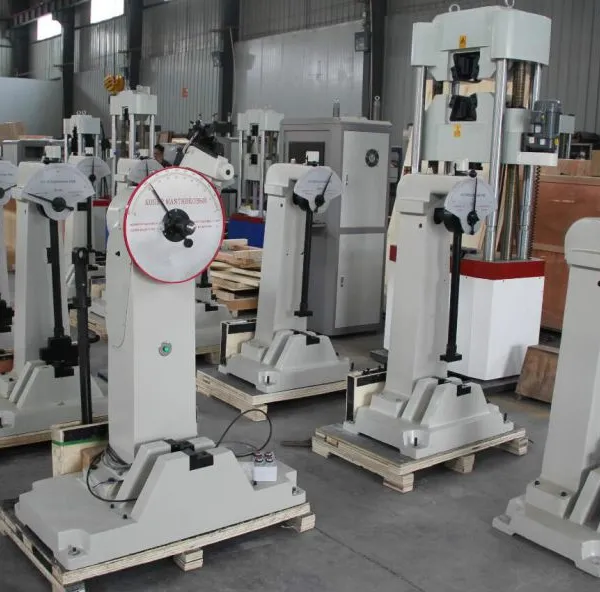

Impact Testing Machines in stock, can be shipped directly after receiving orders:
1) Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
2) Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
3) Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
4) Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. Products are widely recognized and trusted by users.
-------------
