Charpy impact test equipment price

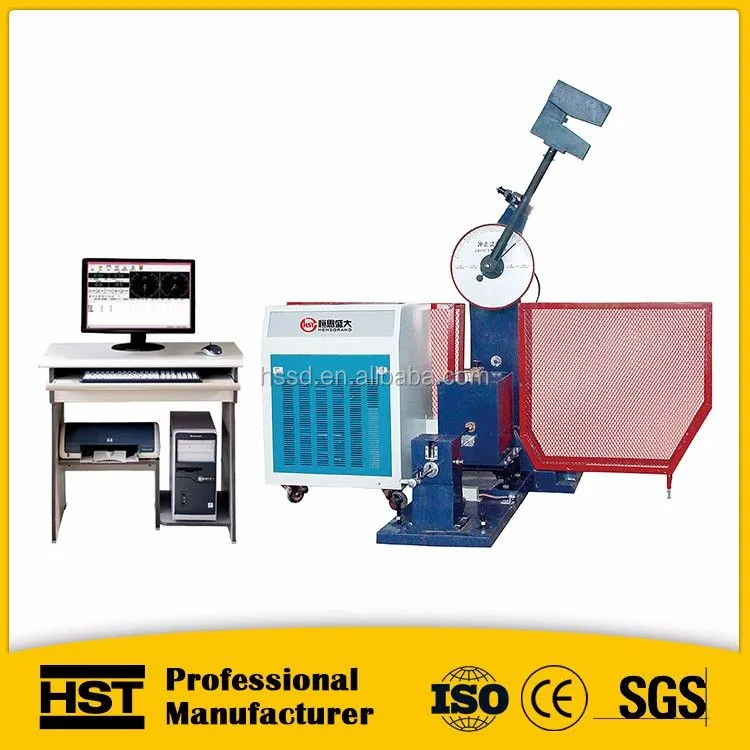

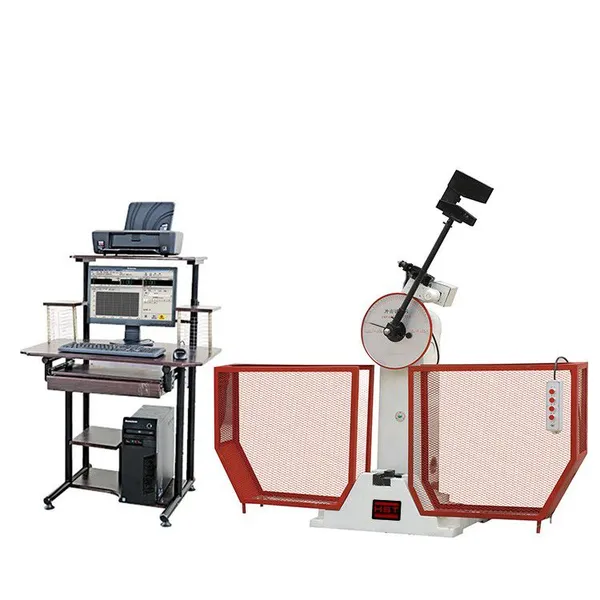

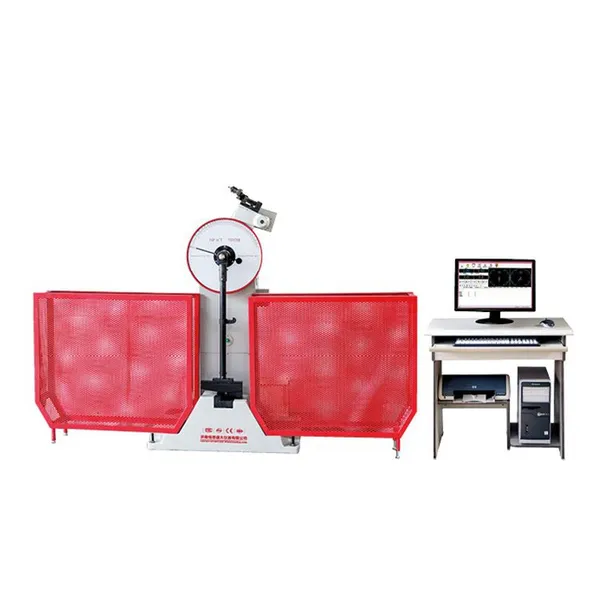

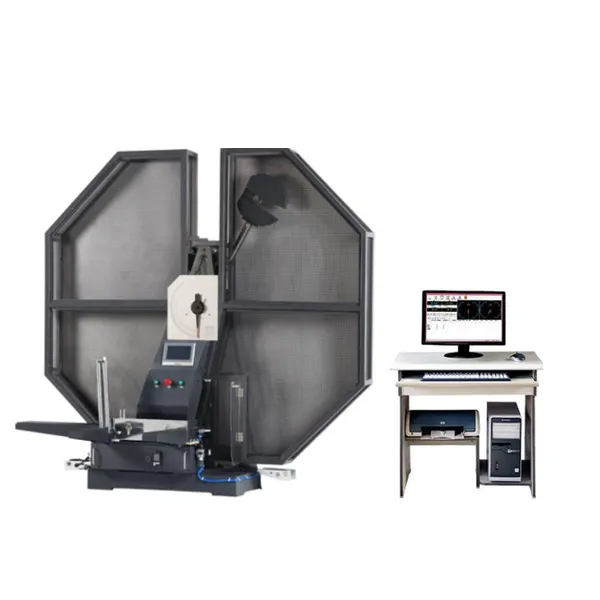

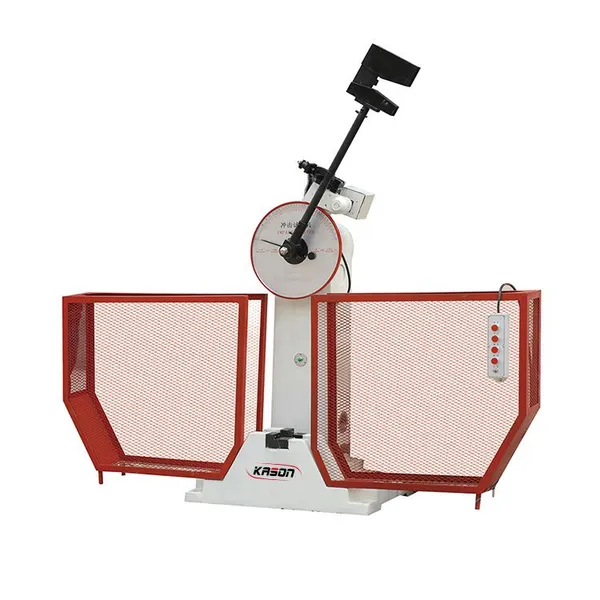

500J Impact Testing Machine/Charpy impact test equipment price

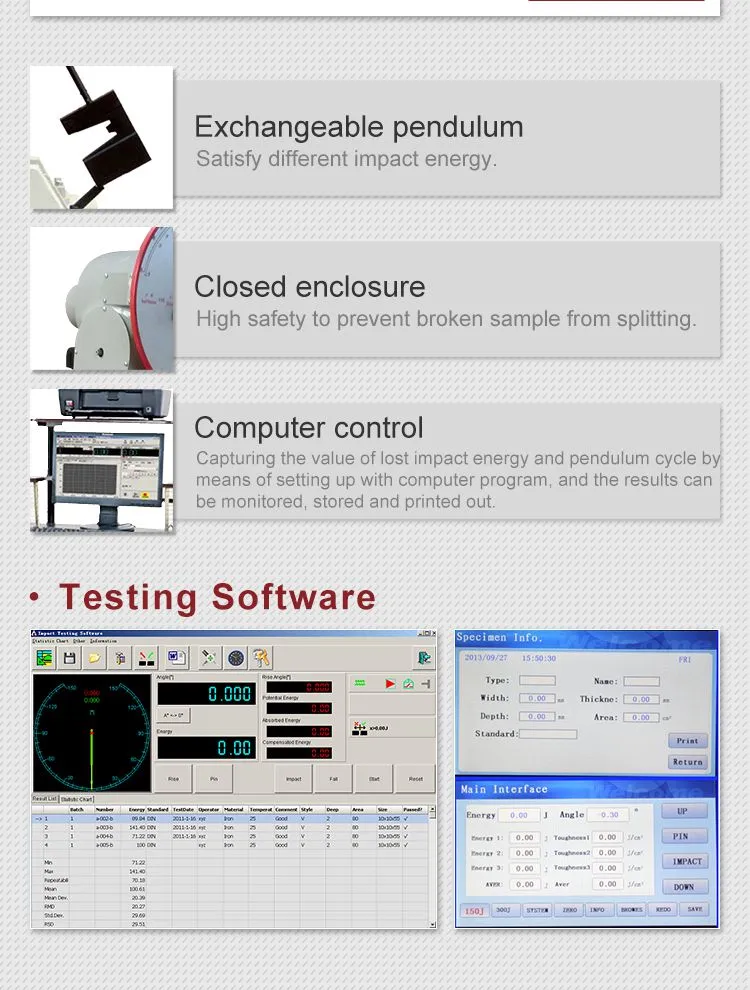

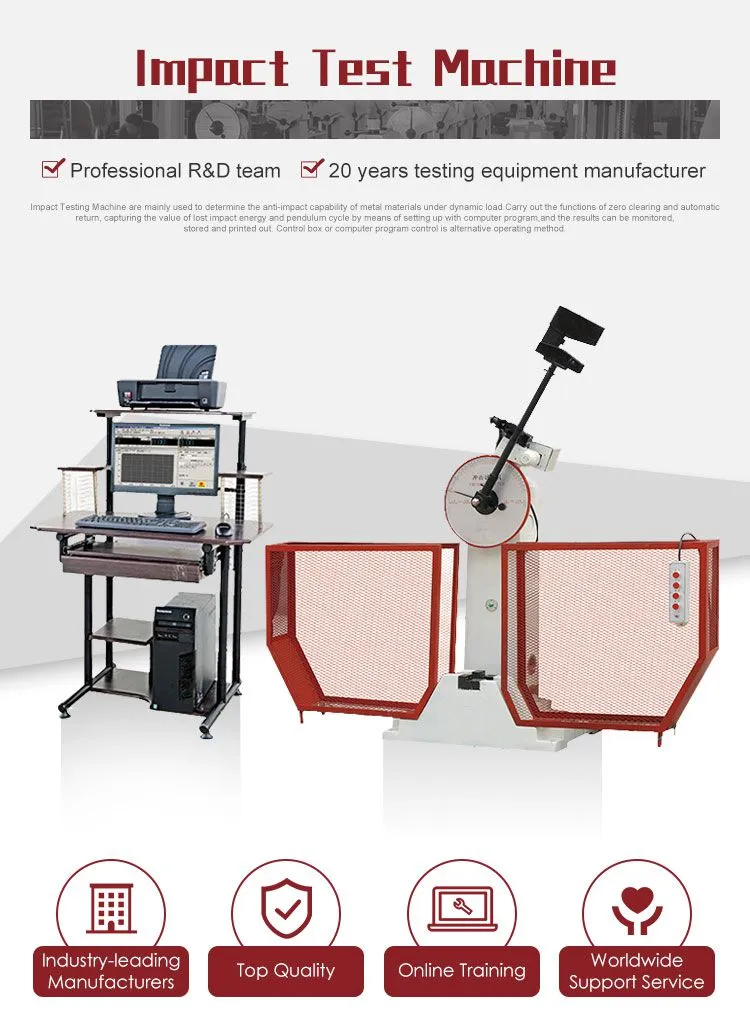

JB-W series Computer Monitor Pendulum Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load. Carry out the functions of zero clearing and automatic return,capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program, and the results can be monitored, stored and printed out.

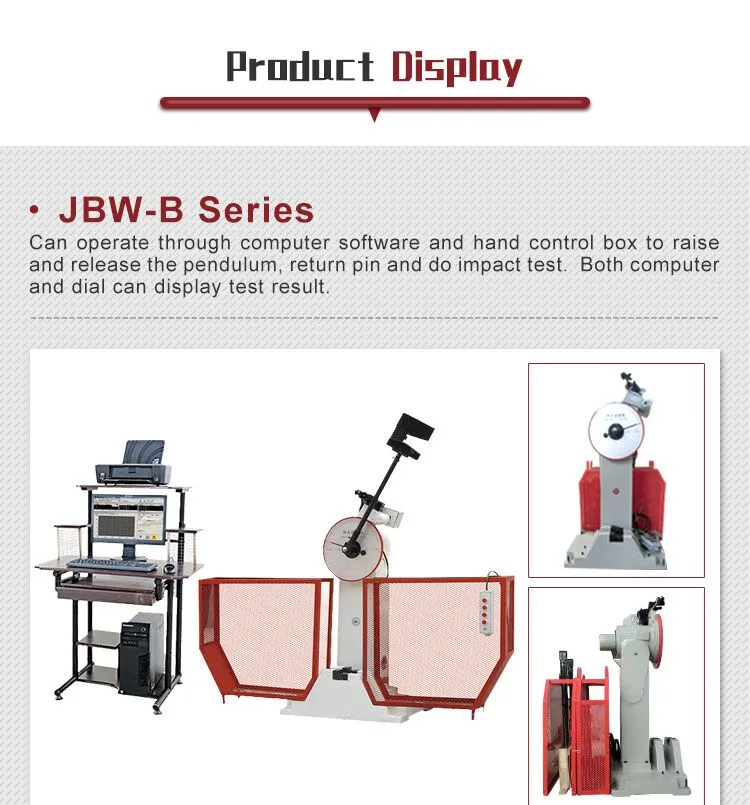

Control box or computer program control is alternative operating method. JB-W series impact testers are adopted by many institutes and high-tech enterprises.
Computer display semi automatic impact testing machine JBW series specification:
|
Model
|
JBW-300B |
JBW-500B |
JBW-800B |
|
|
display
|
computer control automatic |
|||
|
impact energy
|
150/300J |
250/500J |
500/800J |
|
|
The distance between the pendulum shaft and impact point |
750mm |
850mm |
||
|
Impact speed
|
5.2m/s |
5.4 m/s |
5.9m/s |
|
|
Pre-rising angle of the pendulum |
150° |
|||
|
Specimen bearer span
|
40+0.2mm |
|||
|
Round angle of the jaw
|
R1-1.5mm |
|||
|
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
|||
|
Angle accuracy |
0.1° |
|||
|
Standard specimen dimension
|
10mm×10mm×55mm |
|||
|
Sample box capacity
|
10 pcs |
|||
|
Power supply
|
3phs, 380V, 50Hz Or 220V,60Hz |
|||
|
Dimensions (mm)
|
2124*600*1340 |
2200*650*1960 |
2450*1200*2455 |
|
|
Net Weight (kg)
|
450 |
650 |
2300 |
|
Izod Impact universal Testing Machine: ---- CLICK BELOW PICTURE FOR MORE DETAILS:

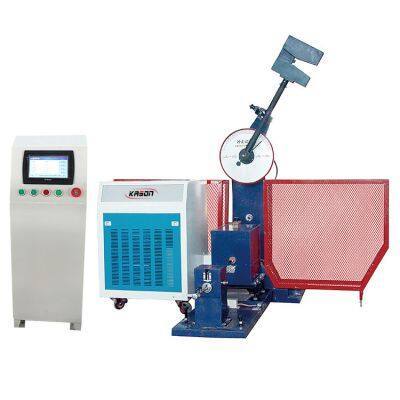

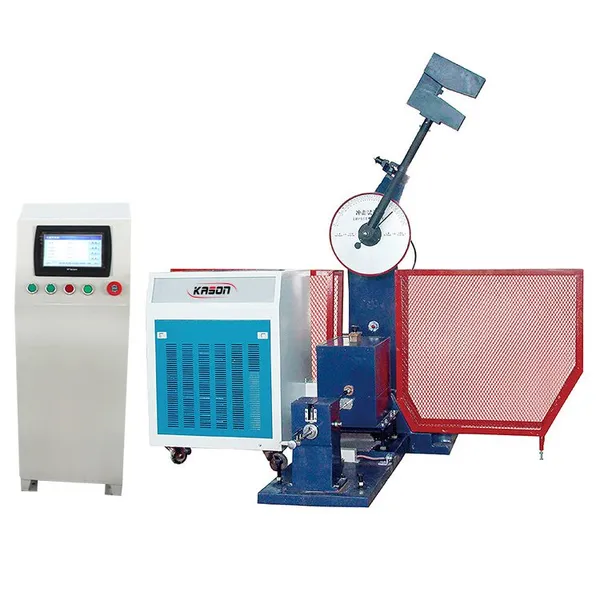

Low temperature impact testing machine Digital semi-automatic impact testing machine
Impact Specimen Gap Broaching Machine: CST-50 Charpy Projector
DWC series Low Temperature Chamber --- use for cooling the impact sample before low temperate imapct test . ------click picture for more details

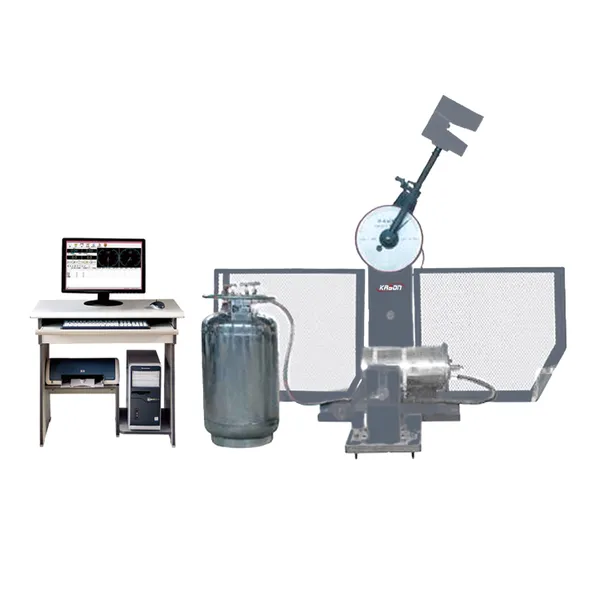

Compressor Cooling Chamber Liquid Nitrogen Cooling Chamber
-------------
