Home > Instruments & Meters > Test Instrument > Test Machine > 10/20/50KN Large Span Wood Based Panel Universal Surface/internal Bonding Strength Testing Machine

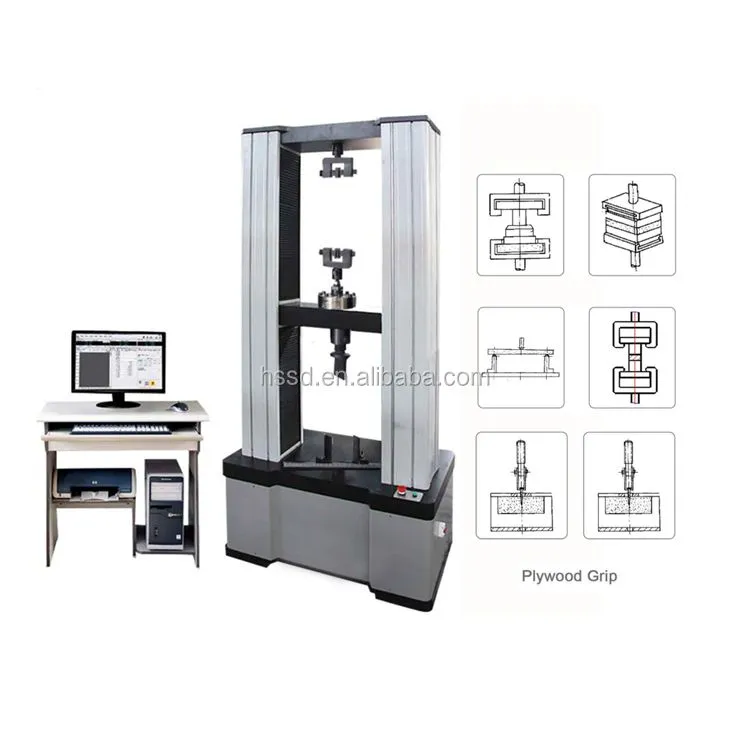

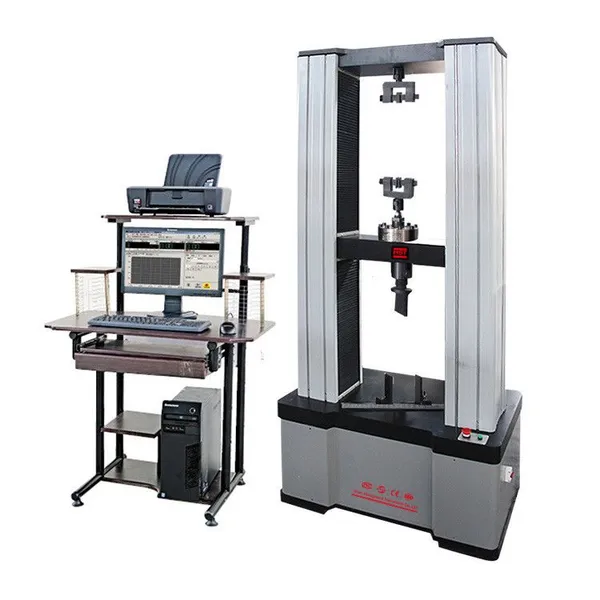

10/20/50KN Large Span Wood Based Panel Universal Surface/internal Bonding Strength Testing Machine

10/20/50KN Large Span Wood Based Panel Universal Surface/internal Bonding Strength Testing Machine thumbnail-3

10/20/50KN Large Span Wood Based Panel Universal Surface/internal Bonding Strength Testing Machine thumbnail-4

10/20/50KN Large Span Wood Based Panel Universal Surface/internal Bonding Strength Testing Machine thumbnail-5

10/20/50KN Large Span Wood Based Panel Universal Surface/internal Bonding Strength Testing Machine thumbnail-6

10/20/50KN Large Span Wood Based Panel Universal Surface/internal Bonding Strength Testing Machine photo-1

10/20/50KN Large Span Wood Based Panel Universal Surface/internal Bonding Strength Testing Machine photo-2

10/20/50KN Large Span Wood Based Panel Universal Surface/internal Bonding Strength Testing Machine photo-3

10/20/50KN Large Span Wood Based Panel Universal Surface/internal Bonding Strength Testing Machine photo-4

10/20/50KN Large Span Wood Based Panel Universal Surface/internal Bonding Strength Testing Machine photo-5

10/20/50KN Large Span Wood Based Panel Universal Surface/internal Bonding Strength Testing Machine photo-6

US$ 699 - 1899 MOQ: 1 Set

Key Specifications

Get Latest Price

Weight:

320kg

brand name:

HST OR OEM

place of origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

brand name HST OR OEM

place of origin Shandong, China

customized support OEM, ODM, OBM, Software Reengineering

power Electronic

warranty 1 YEAR

model number WDW/WDW-5/10/20/50/100/200/300/500/600

Max testing force(KN) 10

Testing force level 1 Level

Testing range 2%--100%FS

Relative error of indicating value ≤±1%

Force resolution 1/300000

Displacement resolution ≤±1%

Displacement resolution(mm) 0.01

Load speed(mm/min) 0.05-500

Power 220V,50Hz,0.5KW

10/20/50KN large span wood based panel universal surface/internal Bonding Strength testing machine

Product Description

Application

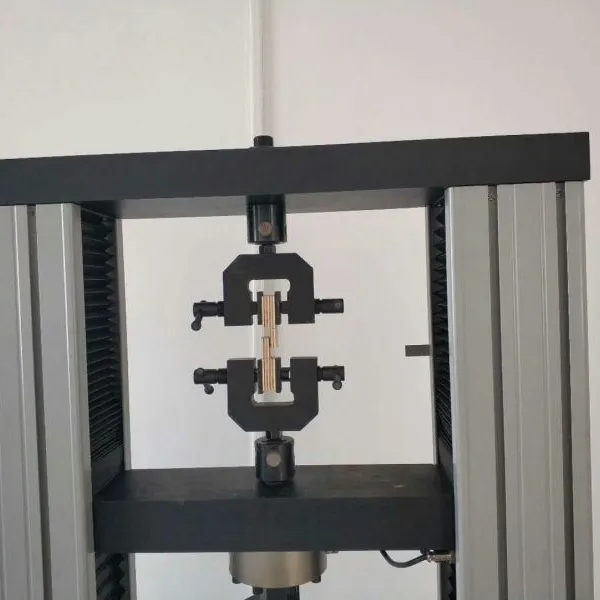

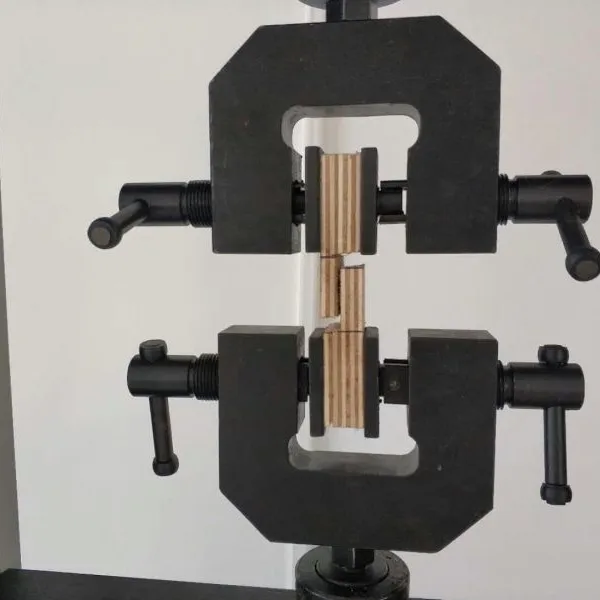

Computer Control Wood-based Panels Universal Testing Machine made for the wood manufacturing and quality supervision station.Can do the following test: Plywood shear test, Surface Bonding Strength Test,Internal Bonding Strength Test, Screw Holding Strength Test, Static Bending Strength and Elastic Modulus Test, Glue strength measurement and tensile strength Test.Test Material: MDF, shaving board, plywood, core-board and other wood based panel.

Standards

EN310, JIS A 5908, GB/T17657-1999, GB 16491-2008, ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.

Specifications:

Model		MWW-10		MWW-20		MWW-30/50	MWW-100		MWW-200/300
Max. Load(kN)		10		20		30/50	100		200/300
Tensile space(mm)		800		800		700	700		550
Compression space(mm)		800		800		700	700		550
Effective test width(mm)		400		400		500	550		600
Ambient temperature		+10 ... +35 °C
Conformity		ISO 9000 and CE
Force transducer
Load accuracy	Standard	Class 1, Conforms to EN 10002-2 Grade1, ISO75001-1 Class 1, BS 1610 Class 1, ASTM E4, and JIS B7721 Class 1
	High-Precision	Class 0.5, Conforms to EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5 (for choice)
Load range		2%~100%F·S/ 0.2%~100%F·S
Load resolution		1/500000
Displacement transducer
Resolution of deformation		0.04um
Accuracy of displacement		Within±0.5%of indicating load
Resolution of displacement		0.01mm
Drive system
Motor		AC servo-motor
Test speed(mm/min) Stepless		0.001-1000	0.001-1000		0.001-500			0.001-500		0.001-200/500
Speed accuracy		±0.1%
Power supply		AC220V±10%,50Hz/60Hz (can be customized)

Package list:

Name	Quantity
10/20KN high strength host	1 pc
High precision photoelectric encoder	1 pc
Digital servo control system and digital servo control motor	1 set
High precision ball screw assembly	2 sets
High precision arc synchronous gear system	1 set
High precision arc synchronous gear system	1 set
Special measurement and control system	1 set
Under WINDOWS operating environment MAXTEST special software	1 set
LENOVO computer	1 set
HPA4 printer	1 set

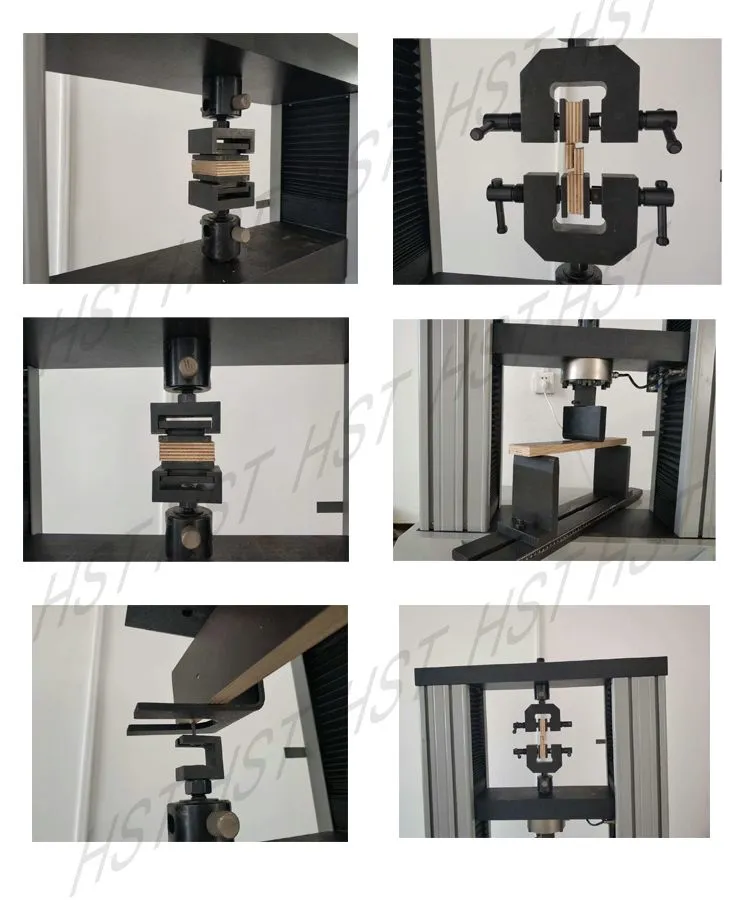

Standard configuration with 6 standard sets testing fixtures as below
Surface bonding strength testing fixture	1 set
Internal bonding strength testing fixture	1 set

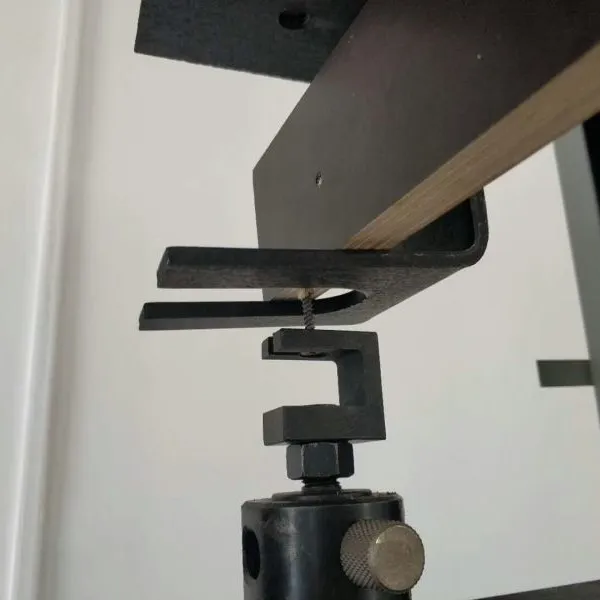

Screw holding strength testing fixture	1 set

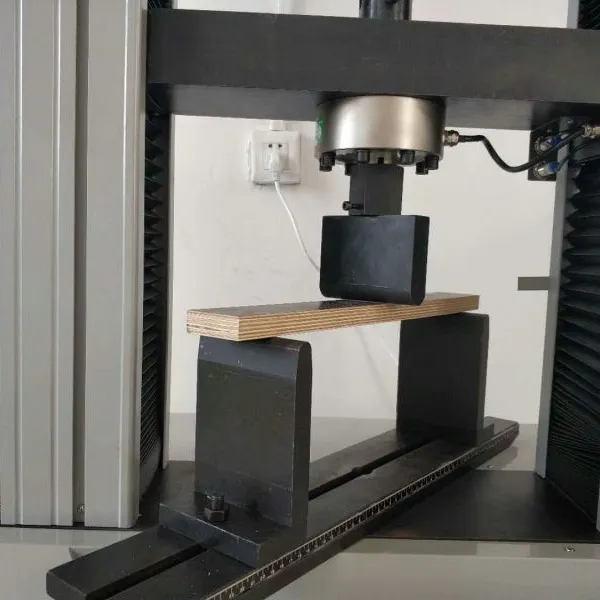

Static bending strength testing fixture	1 set
Elastic modulus testing fixture	1 set
Screw griping testing fixture	1 set
Technical document	1 set
