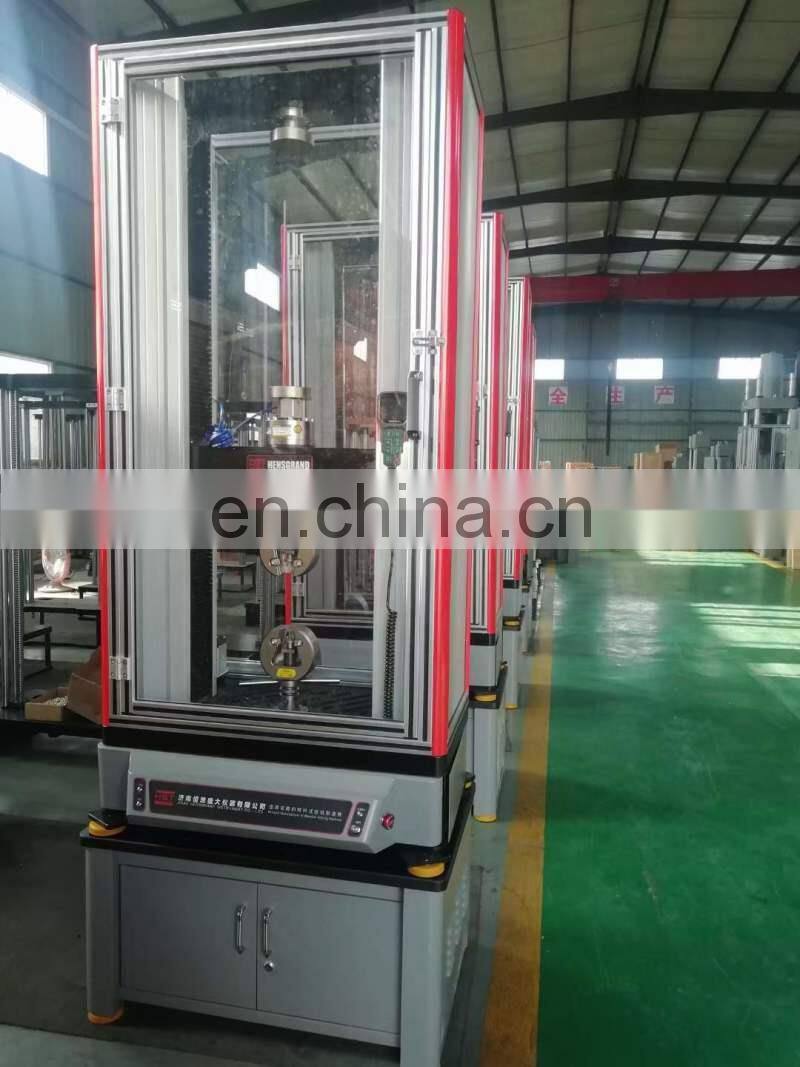

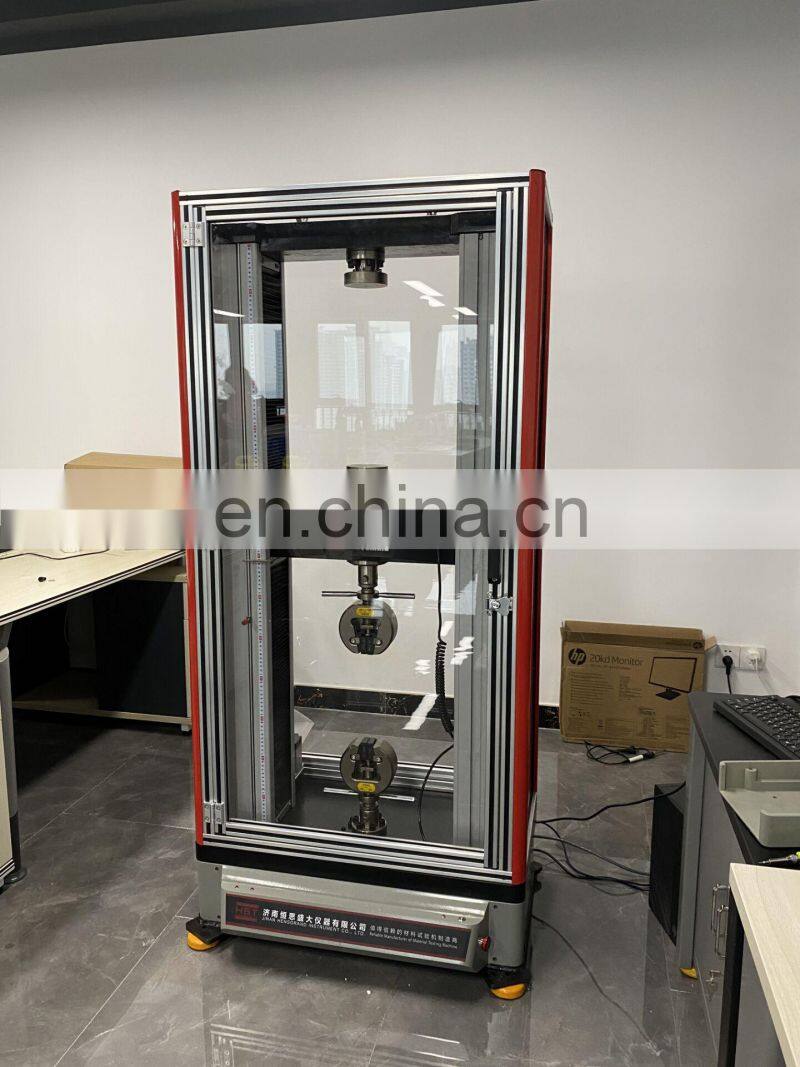

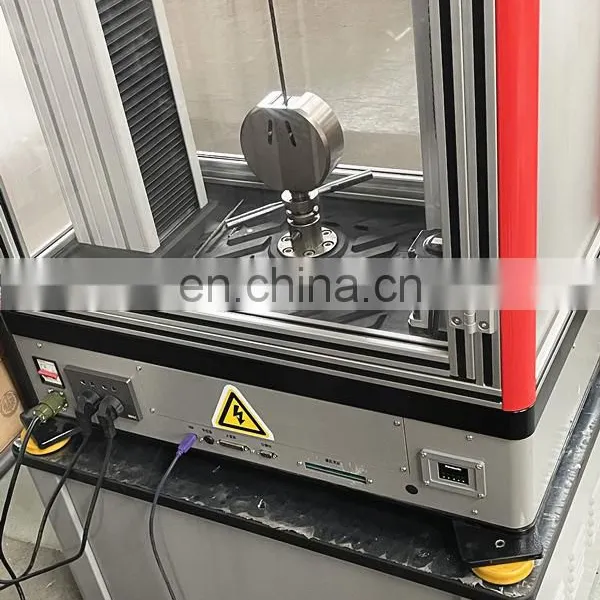

Help CenterWDW-E 110kn 50kn 100kn Plastic Plywood Rubber Tensile Wire Strength Testing Machine
Related Products
-
WDW-30 30KN HST Wood Based Panel/board Universal Testing MachineNegotiableMOQ: 1 -
10kn 20kn 30kn Computer Control Wood-based Panel Universal Testing MachineNegotiableMOQ: 1
-
HST Wood Based Panel Universal Testing Machine MWW-50EUS$ 4800 - 5800MOQ: 1 Set
-
HST Panel Testing Machine 10kN Economic Model Digital Wood-based Panel Testing Machine MWD-10BUS$ 990 - 1200MOQ: 1 Set
-
MWW-20E 20kn MDF Plywood Particle Board Wood-Based Panel Internal Bond Screw Holding Flexural Tensile Testing EquipmentUS$ 32190.34MOQ: 1 Set

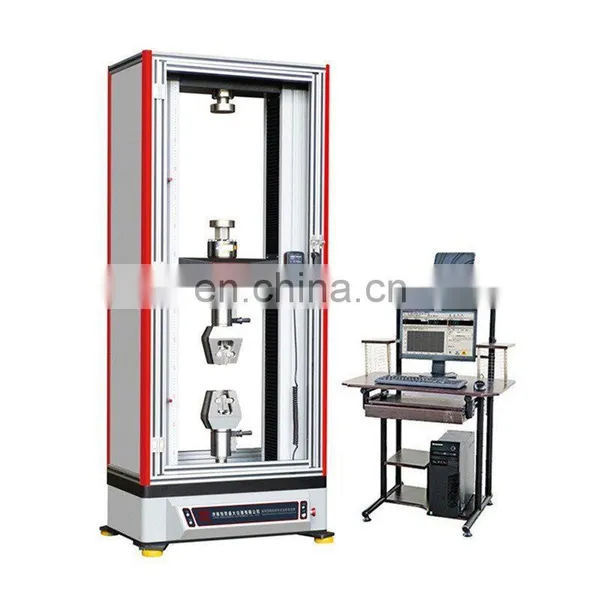

WDW series Microcomputer Electronic Universal Testing Machine
1. Application:
WDW_E series computerized electronic universal testing machines are designed and manufacturedaccording to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubberplastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Main Specifications:
Model |
WDW-10kN |
WDW-20kN |
WDW-50kN |
WDW-100kN |
WDW-300kN |
|||||
Max. Load(kN) |
10 |
20 |
50 |
100 |
300 |
|||||
Crosshead-Table distance |
1140 |
|
|
|
|
|||||
Tensile space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
Compression space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
Effective test width(mm) |
400 |
400 |
500 |
550 |
600 |
|||||
Ambient temperature |
+10 ... +35 °C |
|||||||||
Conformity |
ISO 9000 and CE |
|||||||||
Force transducer | ||||||||||
Load accuracy |
Standard |
Class 1, Conforms to EN 10002-2 Grade1, ISO75001-1 Class 1, BS 1610 Class 1, ASTM E4, and JIS B7721 Class 1 |
||||||||
High-Precision |
Class 0.5, Conforms to EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5 |
|||||||||
Load range |
2%~100%F·S/ 0.2%~100%F·S |
|||||||||
Load resolution |
1/500000 |
|||||||||
Displacement transducer | ||||||||||
Resolution of deformation |
0.04um |
|||||||||
Accuracy of displacement |
Within±0.5%of indicating load |
|||||||||
Resolution of displacement |
0.01mm |
|||||||||
Drive system | ||||||||||
Motor |
AC servo-motor |
|||||||||
Test speed(mm/min) Stepless |
0.001-1000 |
0.001-1000 |
0.001-500 |
0.001-500 |
0.001-200/500 |
|||||
Speed accuracy |
±0.1% |
|||||||||
Power supply |
AC220V±10%,50Hz/60Hz (can be customized) |
|||||||||
