HST Wood Based Panel Universal Testing Machine MWW-50E
US$ 4800 - 5800
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Electronic Tensile Testing Machine
Maximum Compressive Space:
770mm
Maximum Tensile Space:
770mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Panel Testing Machine 10kN Economic Model Digital Wood-based Panel Testing Machine MWD-10BUS$ 990 - 1200MOQ: 1 Set -
MWW-20E 20kn MDF Plywood Particle Board Wood-Based Panel Internal Bond Screw Holding Flexural Tensile Testing EquipmentUS$ 32190.34MOQ: 1 Set
-
MWW-50E 50kn MDF Plywood Particle Board Wood-Based Panel Internal Bond Flexural Screw Holding Tensile Testing EquipmentUS$ 32190.34MOQ: 1 Set
-
MWW-10E 10kn MDF Plywood Particle Board Wood-Based Panel Internal Bond Screw Holding Flexural Testing MachineUS$ 32190.34MOQ: 1 Set
-
MDF Plywood Particle Board Wood-Based Panel Internal Bond Screw Holding Static Bending Tensile Testing MachineUS$ 32190.34MOQ: 1 Set
Maximum Compressive Space
770mm
Maximum Tensile Space
770mm
Model Number
HST MWW-50E
Brand Name
HST
Place of Origin
Shandong, China
Crossbeam Displacement Accuracy
±0.01 mm
Power Supply
220 V~240 V
Products Description

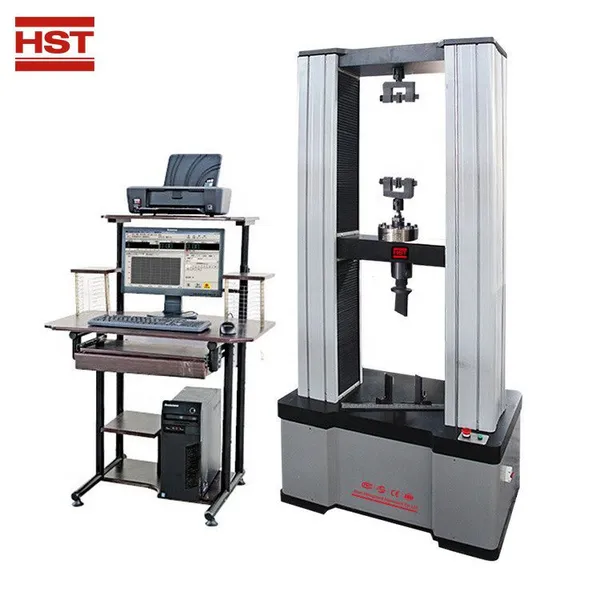

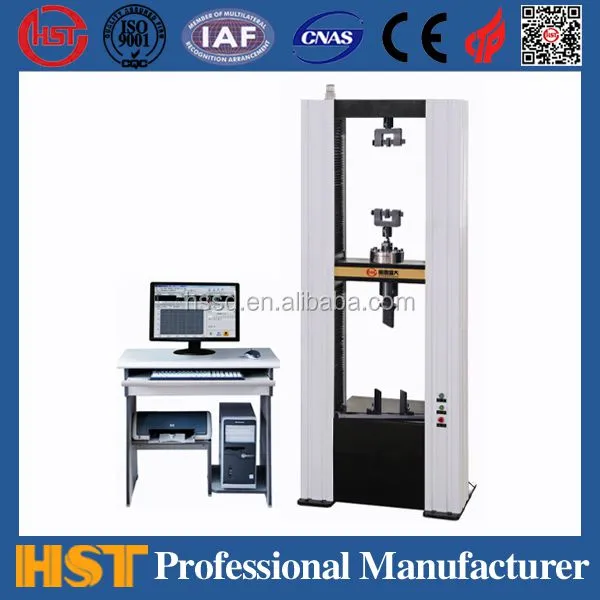

HST MWW-50E Wood-based Board Universal Testing Machine
1. Introduction
This testing machine strictly complies with GB/T16491-1996, GB/T17657-1999 and GB/T4897-92 standards, and can also conduct tests and provide data per GB, DIN, ISO, JIS, ASTM and other international standards as required.
Suitable for MDF, particleboard, plywood and other wood-based panels, it can automatically test planar tensile strength, static bending strength, elastic modulus, bonding strength, hardness, shear performance, etc. (with corresponding fixtures).
Test curves and data are dynamically displayed on the computer, supporting editing, superposition, zooming and printing. Report formats can be customized and printed as needed for easy operation.
2. Standards
GB/T17657-1999, EN, ASTM, GB/T 16491-1996,ISO 1689
3. Safety Divice
3.1 Stroke protection: Machinery,computer double protection, prevent over preset
3.2 Force protection: system setting
3.3 Emergency stop device: handing emergencies
MODEL |
HST MWW-50 |
|
Load Capacity |
50kN |
|
Calibration standard |
Class 0.5 according to ISO 7500-1 - Meets ASTM E-4 |
|
Testing Load Accuracy |
±0.5% |
|
Testing Load Range |
0.4%～100%FS |
|
Load Resolution |
1/500000FS |
|
Deformation measuring range |
0.2%～100%FS |
|
Deformation accuracy |
≤±0.5% |
|
Deformation resolution |
1/500000FS of the max deformation |
|
Test control mode |
Three closed loop control, stress, strain and displacement |
|
Displacement accuracy |
Within ±0.5% of the value |
|
Displacement resolution |
0.04μm |
|
Crosshead speed |
±0.5% of set speed |
|
Constant force, constant deformation, constant displacement control range |
0.5%--100%FS |
|
Constant force, constant deformation, constant displacement control accuracy |
0.005～5%FS/s |
|
Crosshead speed range |
0.001～1000mm/min |
|
Crosshead speed accuracy |
Within ±0.5% of the value |
|
Mainframe parameters |
||
Max. Tensile Testing Space |
770mm |
|
Test width |
450mm |
|
Overall Dimensions |
850x550x1824mm |
|
Weight |
about 420kg |
|
Power supply |
AC220V±10%,50Hz/60Hz |
|
Note: *Extra wide and/or extra height frames are available. *Power supply system is completely customizable. *Tensile space, test width, and speed is completely customizable. |
||
