HST Panel Testing Machine 10kN Economic Model Digital Wood-based Panel Testing Machine MWD-10B
US$ 990 - 1200
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Electronic Tensile Testing Machine
Maximum Compressive Space:
400mm
Maximum Tensile Space:
380mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MWW-20E 20kn MDF Plywood Particle Board Wood-Based Panel Internal Bond Screw Holding Flexural Tensile Testing EquipmentUS$ 32190.34MOQ: 1 Set -
MWW-50E 50kn MDF Plywood Particle Board Wood-Based Panel Internal Bond Flexural Screw Holding Tensile Testing EquipmentUS$ 32190.34MOQ: 1 Set
-
MWW-10E 10kn MDF Plywood Particle Board Wood-Based Panel Internal Bond Screw Holding Flexural Testing MachineUS$ 32190.34MOQ: 1 Set
-
MDF Plywood Particle Board Wood-Based Panel Internal Bond Screw Holding Static Bending Tensile Testing MachineUS$ 32190.34MOQ: 1 Set
-
HST MWW-10E Wood-Based Panel Board Universal Testing Machine for Internal Bond, Bending & Screw Holding Test of MDF, PlywoodUS$ 34989.50 - 36389.08MOQ: 1 Set
Maximum Compressive Space
400mm
Maximum Tensile Space
380mm
Model Number
HST MWD-10B
Brand Name
HST
Place of Origin
Shandong, China
Crossbeam Displacement Accuracy
±0.1 mm
Power Supply
220 V~240 V
Products Description

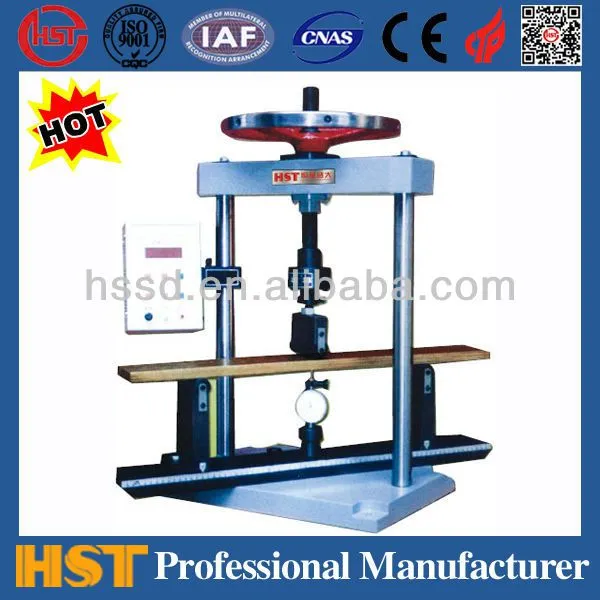

HST MWD-10B 10kN Digital Wood-based Panel Testing Machine (Economic Model)
Function & Features
1) Widely used in mechanical property test for wood-based panels, surface decorated wood-based panels, medium density wood, in
line with standard EN310, EN319, EN320, ASTM D1037, DIN52366, JISA5909.

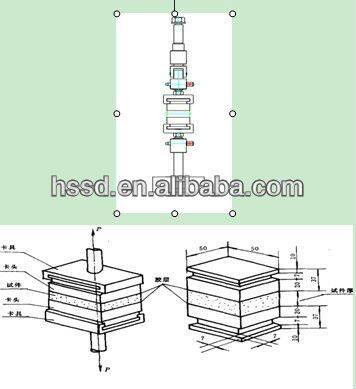

2) It can perform tests of surface bonding strength, surface gluing strength, static bending strength, elastic modulus, nail
withdrawal capacity, glue-line shear strength and internal bonding strength, etc.,
3) It is the ideal testing equipments for quality inspection and plates industries.
Technical Specifications
1)Max. load 10KN
2)Min. reading of test force 1N
3)Accuracy class Class 1
4)Relative error of indicating value ±1% within 200-10000N
5)Relative error of repeatability of indicating value of load ≤1%
6)Relative error of zero point of load ±0.1%
7)Test space (H*W) 380*400mm
8)Loading mode Manual
9)Power supply: 220V±10%, 50Hz; 0.25kW
10)Dimension (L*W*H): 500*300*800mm
1) Widely used in mechanical property test for wood-based panels, surface decorated wood-based panels, medium density wood, in
line with standard EN310, EN319, EN320, ASTM D1037, DIN52366, JISA5909.
2) It can perform tests of surface bonding strength, surface gluing strength, static bending strength, elastic modulus, nail
withdrawal capacity, glue-line shear strength and internal bonding strength, etc.,
3) It is the ideal testing equipments for quality inspection and plates industries.
Technical Specifications
1)Max. load 10KN
2)Min. reading of test force 1N
3)Accuracy class Class 1
4)Relative error of indicating value ±1% within 200-10000N
5)Relative error of repeatability of indicating value of load ≤1%
6)Relative error of zero point of load ±0.1%
7)Test space (H*W) 380*400mm
8)Loading mode Manual
9)Power supply: 220V±10%, 50Hz; 0.25kW
10)Dimension (L*W*H): 500*300*800mm
