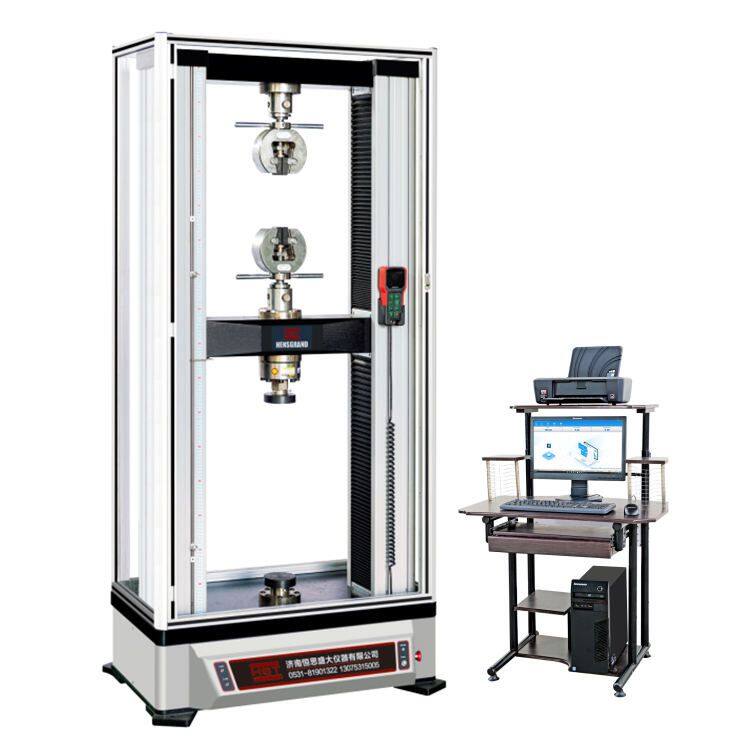

MDF Plywood Particle Board Wood-Based Panel Internal Bond Screw Holding Static Bending Tensile Testing Machine
1. Introduction
The testing machine strictly complies with the inspection standard GB/T16491-1996 Electronic Universal Mate

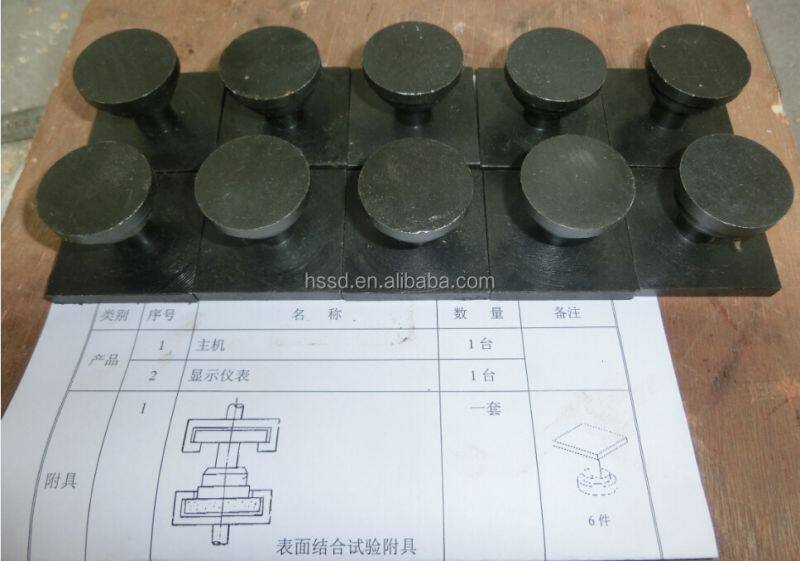

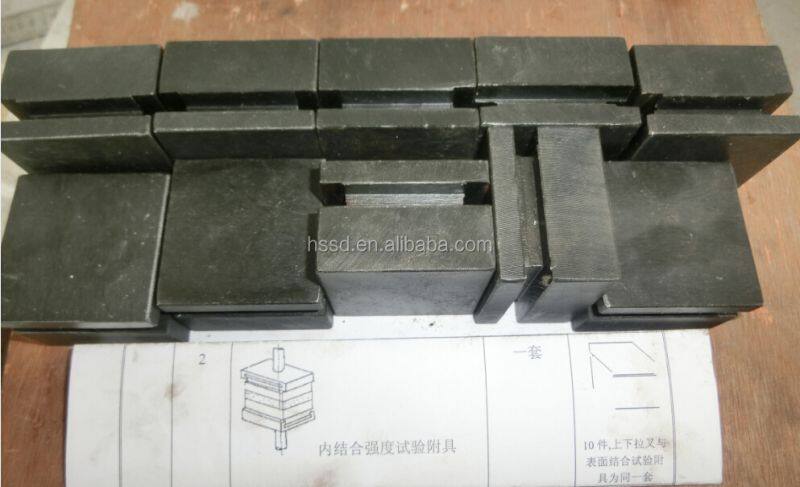

rial Testing Machine, and meets the test method of physical and chemical properties of GB-T/ 17657-1999 woo d-based panel and veneer wood-based panel, and the test method of GB-T_4897-92 for particleboard. We ca n also test and provide data according to GB, DIN, ISO, JIS, ASTM and other international standards accord in g to customer's product requirements. Suitable for medium density fiberboard (MDF), particle board, plywood, joinery board, fiberboard, particleboard, agglutination joinery board automatically calculate the planar tensile st rength, such as static music intensity, elastic modulus, surface combination, in combination, screw force, bond ing strength, hardness testing, shear performance, etc. (according to customer requirements corresponding fix ture),The test curve and data results can be dynamically displayed on the computer and set arbitrarily, making it easier and more convenient to operate the curve. All-electronic display monitoring such as curve editing, su perposition, separation, zooming, and printing can be performed anytime, anywhere, and the report format can be edited and printed according to user needs.
2. Standards
GB/T17657-1999, EN, ASTM, GB/T 16491-1996,ISO 1689
3. Safety Divice
3.1 Stroke protection: Machinery,computer double protection, prevent over preset
3.2 Force protection: system setting
3.3 Emergency stop device: handing emergencies
4. Specifications:
|
Model |
MWW-10E |
MWW-20E |
MWW-50E |
|
Max test load |
10kN |
20kN |
50kN |
|
Control method |
Computer automatically control |
||
|
Accuracy |
1 class |
||
|
Test load test range |
2%~100%F·S |
||
|
Load resolution |
1/500000 |
||
|
Test value relative error |
≤±1% |
||
|
Displacement value relative error |
≤±1% |
||
|
Displacement resolution |
0.01mm |
||
|
Speed adjusting range |
0.001-1000mm/min |
0.001-500mm/min |
|
|
Speed relative error |
≤±1% |
||
|
Effective tensile space (mm) |
800 |
700 |
|
|
Effective compression space (mm) |
800 |
700 |
|
|
Effective test width (mm) |
400 |
500 |
|
|
Power supply |
AC220V±10%,50Hz |
||
