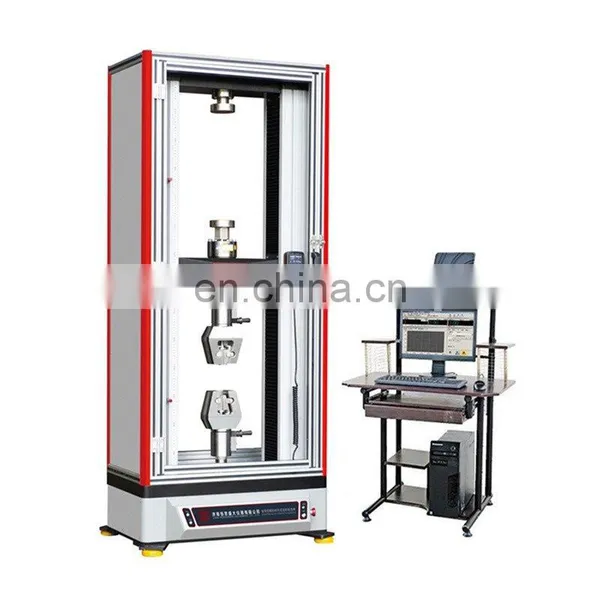

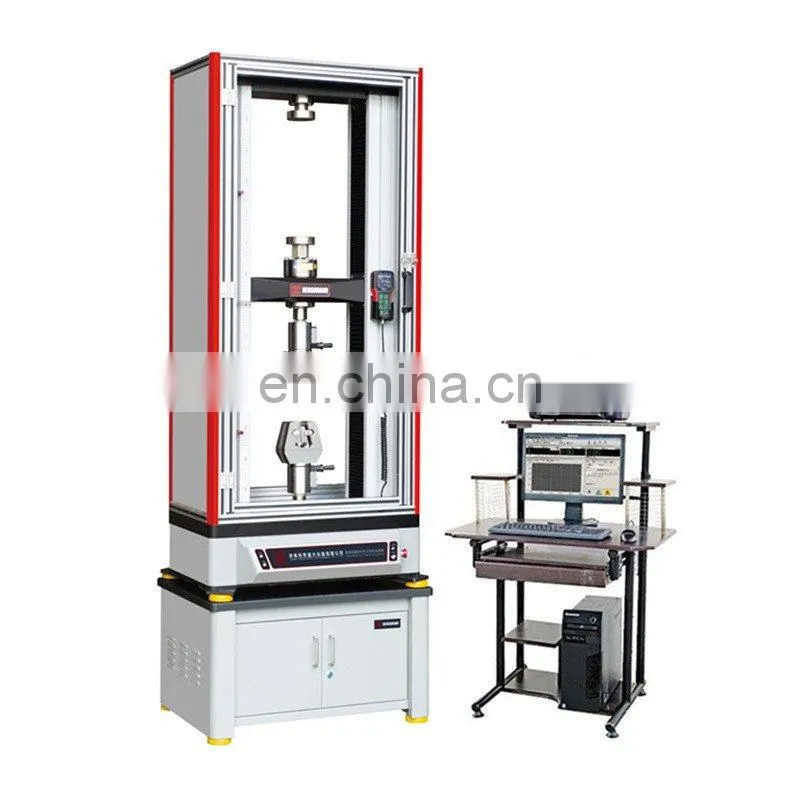

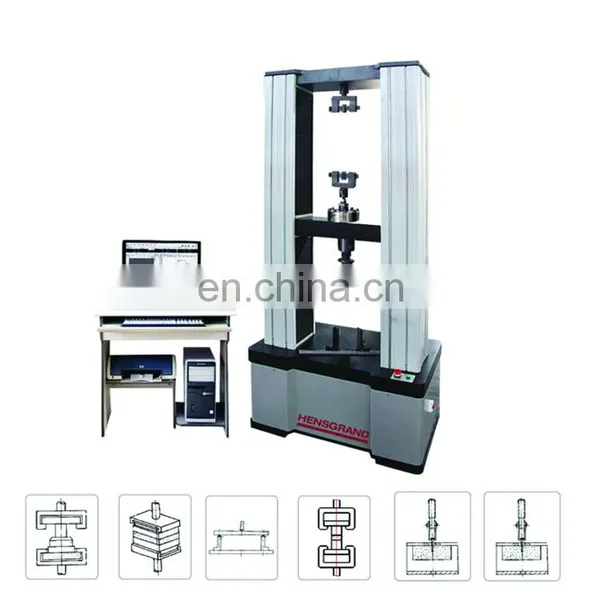

50KN solid wood-based panels board MFD materials Screw Holding/Static Bending /Elastic Modulus /Glue Strength testing machine
New models for choice:
Application
Computer Control Wood-based Panels Universal Testing Machine made for the wood manufacturing and quality supervision station.Can do the following test: Plywood shear test, Surface Bonding Strength Test,Internal Bonding Strength Test, Screw Holding Strength Test, Static Bending Strength and Elastic Modulus Test, Glue strength measurement and tensile strength Test.Test Material: MDF, shaving board, plywood, core-board and other wood based panel.
Standards
EN310, JIS A 5908, GB/T17657-1999, GB 16491-2008, ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Specifications:
Model |
MWW-10 |
MWW-20 |
MWW-30/50 |
MWW-100 |
MWW-200/300 |
|||||
Max. Load(kN) |
10 |
20 |
30/50 |
100 |
200/300 |
|||||
Tensile space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
Compression space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
Effective test width(mm) |
400 |
400 |
500 |
550 |
600 |
|||||
Ambient temperature |
+10 ... +35 °C |
|||||||||
Conformity |
ISO 9000 and CE |
|||||||||
Force transducer | ||||||||||
Load accuracy |
Standard |
Class 1, Conforms to EN 10002-2 Grade1, ISO75001-1 Class 1, BS 1610 Class 1, ASTM E4, and JIS B7721 Class 1 |
||||||||
High-Precision |
Class 0.5, Conforms to EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5 (for choice) |
|||||||||
Load range |
2%~100%F·S/ 0.2%~100%F·S |
|||||||||
Load resolution |
1/500000 |
|||||||||
Displacement transducer | ||||||||||
Resolution of deformation |
0.04um |
|||||||||
Accuracy of displacement |
Within±0.5%of indicating load |
|||||||||
Resolution of displacement |
0.01mm |
|||||||||
Drive system | ||||||||||
Motor |
AC servo-motor |
|||||||||
Test speed(mm/min) Stepless |
0.001-1000 |
0.001-1000 |
0.001-500 |
0.001-500 |
0.001-200/500 |
|||||
Speed accuracy |
±0.1% |
|||||||||
Power supply |
AC220V±10%,50Hz/60Hz (can be customized) |
|||||||||

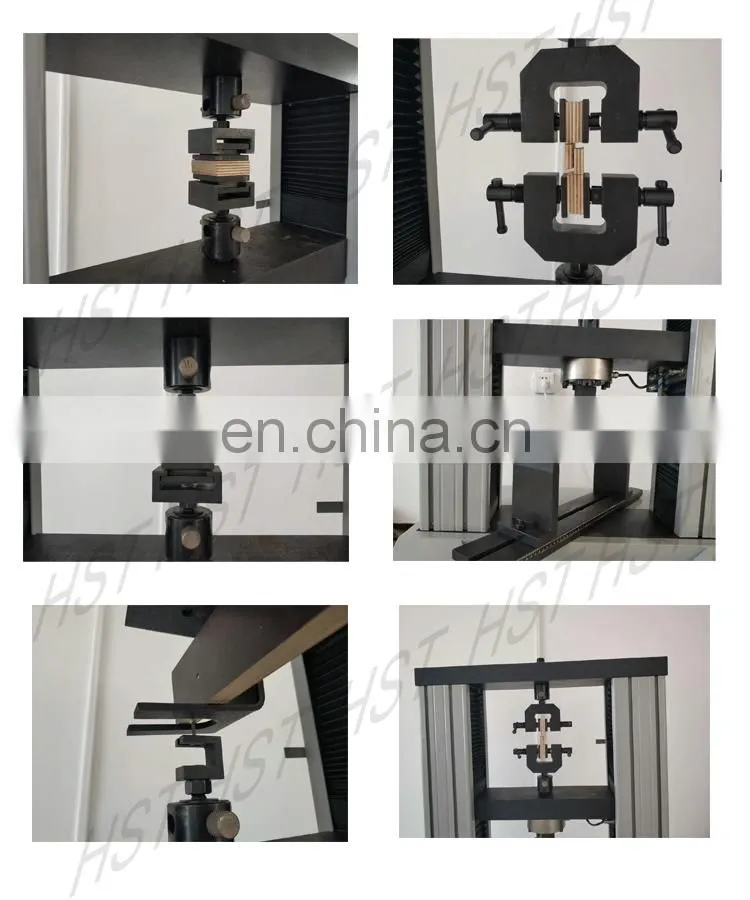

Fixtures show:
