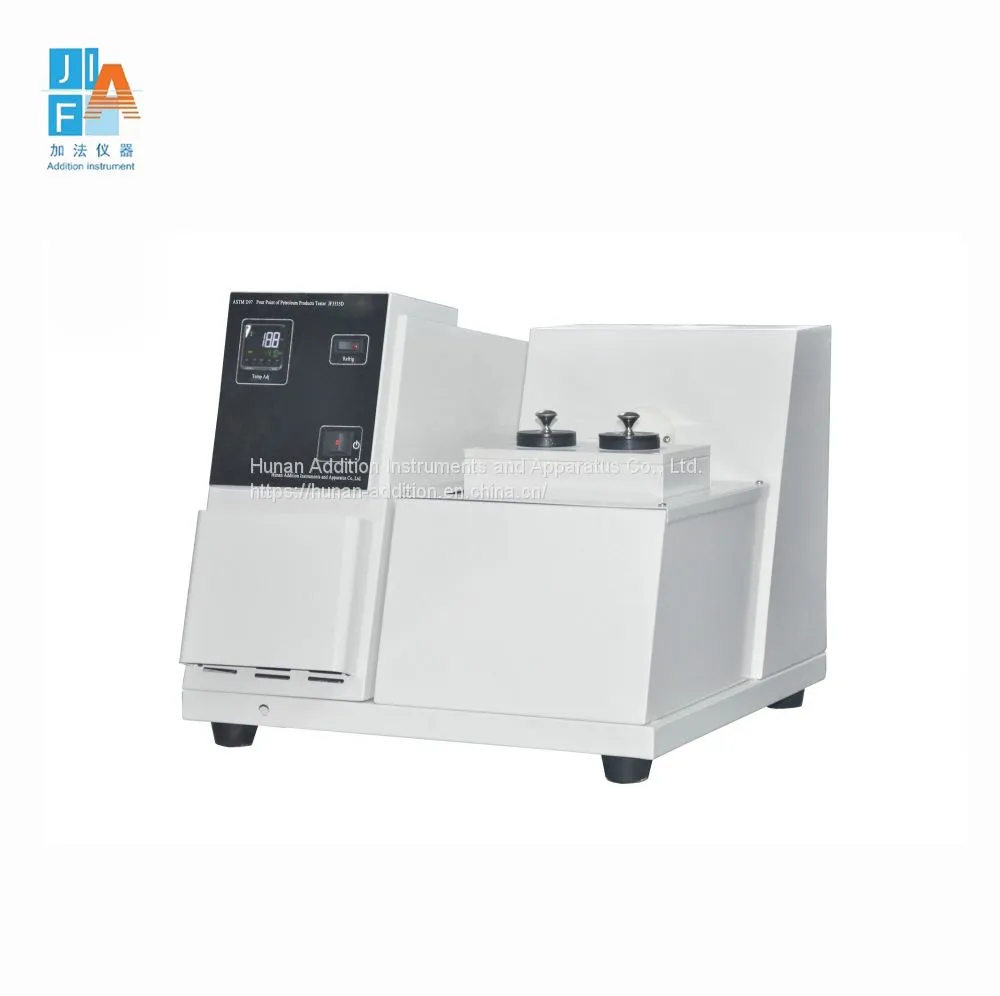

Pour Point of Petroleum Products Tester ASTM D97
Model: JF3535A
Product Introduction
This instrument is mainly suitable for testing the pour point of petroleum products. Operating principle: After the sample is preheated, it is cooled at a specified speed, and the fluidity of the sample is checked every 3 ℃. Record the lowest temperature at which the sample was observed to flow as the pour point.
Technical Parameter
1. Applicable standards: ASTM D97, ISO3016, NFT60105, GB/T3535
2. Temperature control method: high-quality PID digital temperature controller
3. Temperature control accuracy: -40℃
4. Refrigeration method: high-quality compressor refrigeration
5. Timing method: digital display timer
6. Working unit: two holes
7. Working power supply: AC220,240V 50,60Hz
8. Power of the whole machine: 1000W
9. Instrument size: 500*480*420mm
10. Weight: 35KG
Main Feature
1. The instrument adopts a fully enclosed compressor for refrigeration, environmentally friendly refrigerant, and has a fast cooling speed.
2. High-quality self-priming pump circulation, good temperature uniformity
3. Integral structure, easy to move.
4. The instrument is made of cold-rolled steel plate, and the surface is electrostatically sprayed, which has the functions of corrosion resistance and easy cleaning.
5. The instrument welding adopts touch welding technology, no solder joints, beautiful appearance and generous appearance.
6. High-quality Omron PID thermostat, digital display temperature, accuracy 0.1℃
